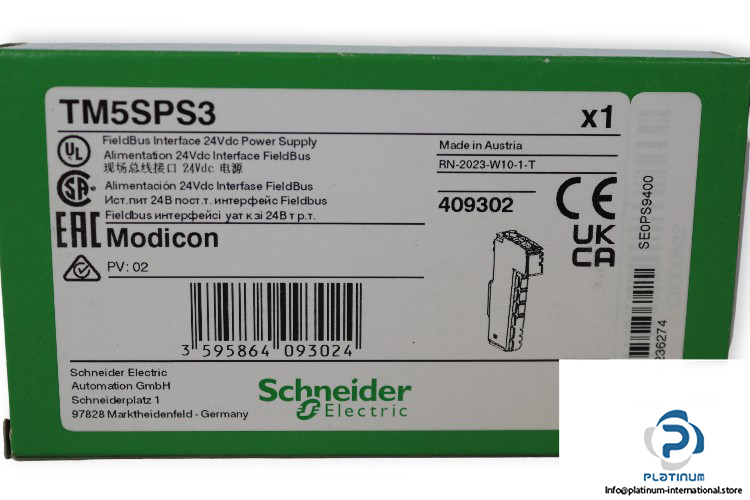

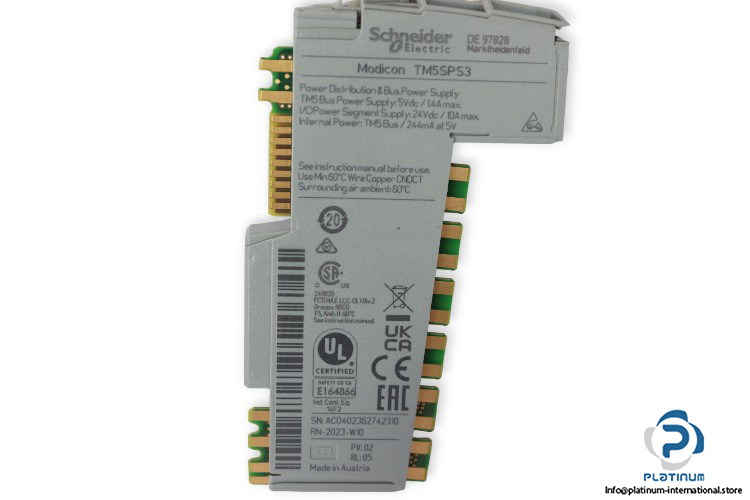

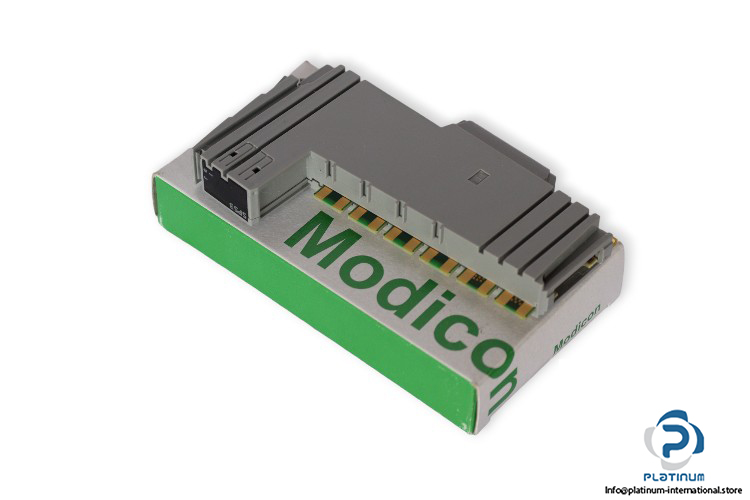

Schneider TM5SPS3 Power Distribution Module

Manufacturer: SCHNEIDER
Type: Power Distribution Module
Model: TM5SPS3
Part No: 409302

Range of Product: Modicon TM5
Product Specific Application:
Supply 24 V DC I/O modules and bus CANopen

Supply 24 V DC I/O modules and bus Sercos III
Range Compatibility:
Modicon LMC078

Modicon LMC058

Modicon M258
Product Compatibility:
Logic controller

Motion controller
Rated Supply Voltage: 24 V DC
Current Consumption: <= 25 mA
TM5 Bus Power Supply: 5 V DC / 14 A
I/O Power Segment Supply: 24 V DC / 10 A
Maximum Power: 1.91 W
Vibration Resistance:
gn at 8.4…150 Hz on DIN rail

3.5 mm at 5…8.4 Hz on DIN rail
Protection: IP 20
Ambient Air Temperature for Operation:
-10…55 °C without derating (horizontal installation)

55…60 °C with derating factor (horizontal installation)

-10…50 °C (vertical installation)
Dimensions: 75 x 12.5 x 99 mm
