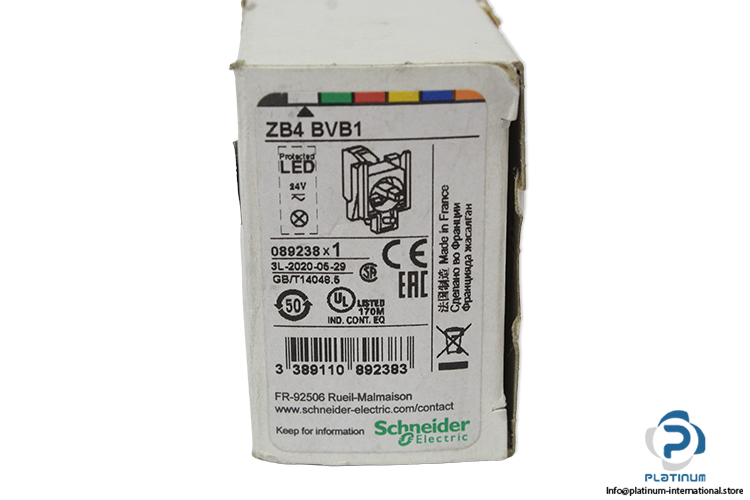

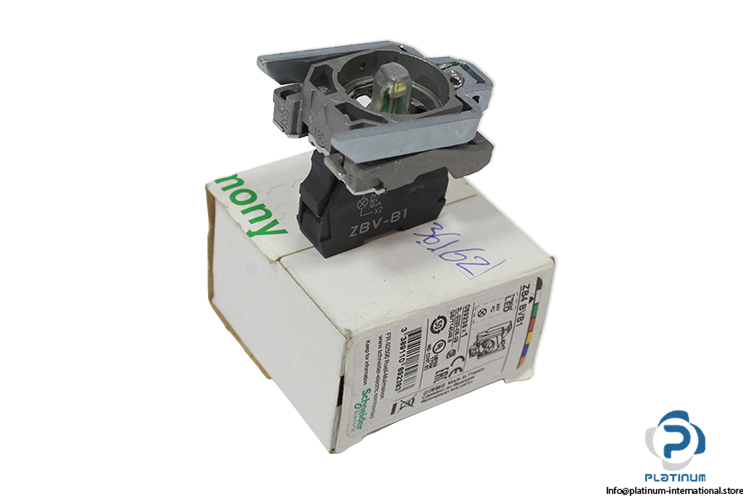

Schneider ZB4 BVB1 Complete Body/Light Block Assembly
Yeni
Stokta1 birimSevkiyata hazır
Tam Gövde/Işık Blok Montajı SCHNEIDER ZB4BVB1 Harmony XB4 evrensel beyaz LED, 24 V AC/DC besleme, vidalı klem terminalleri ve Zamak sabitleme yakalığı ile tam gövde ve ışık blok montajı.
24vACassemblyBlockBodyCompleteComponentControldcDeviceElectricHarmonyIndicatorIndustrialLEDLightModulemountPanelSchneiderSignallingWhiteXB4ZB4BVB1
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
| Part No. | 089238 |
| SN | 3389110892383 |
| Range of product | Harmony XB4 |
| Product or component type | Complete body/light block assembly |
| Device short name | ZB4 |
| Fixing collar material | Zamak |
| Connections – terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end,Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Light source | Universal LED |
| Light source colour | White |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| CAD overall width | 30 mm |
| CAD overall height | 47 mm |
| CAD overall depth | 37 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Cross compatible with Philips no 1 | screwdriver |
| Slotted compatible with flat Ø | 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Supply voltage limits | 19.2…30 V DC/21.6…26.4 V AC |
| Ambient air temperature for operation | -40…70 °C |
| Standards | IEC 60947-1/JIS C8201-5-1/IEC 60947-5-1/UL 508/CSA/C22.2 No 14/IEC 60947-5-5/IEC 60947-5-4/JIS C8201-1 |

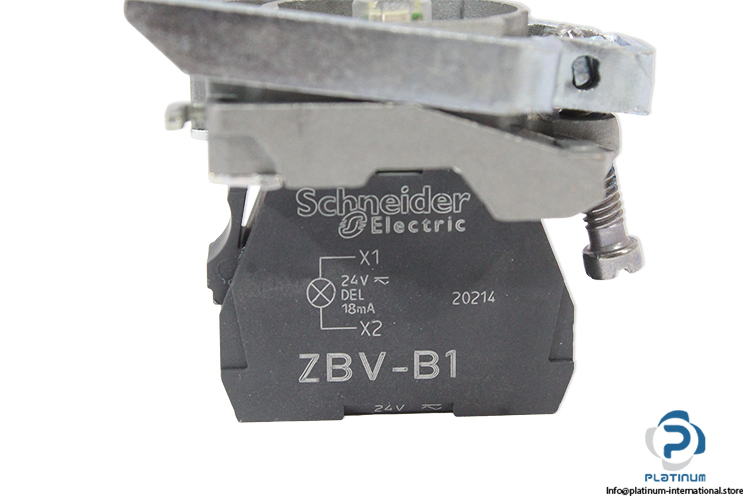

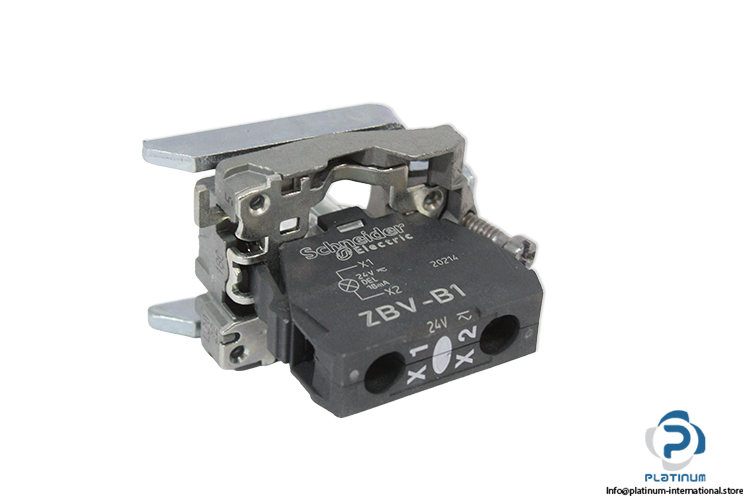

| ATTACHED WITH | SCHNEIDER ZBV-B1 LIGHT MODULE |
| Condition | New |
| Stock Key | JO-004 |
