Seko PS1D025A21A4000 Dosing Pump
Elektromekanik Dozaj Pompası Seko PS1D025A21A4000, 25 L/h debili, 20 bar maksimum basınç, CE işaretli ve endüstriyel kimyasal dozaj sistemleri için GAMAR üç fazlı motorlu dozaj pompası. Su arıtma tesisleri ve hassas endüstriyel sıvı kontrol uygulamaları için önerilir.

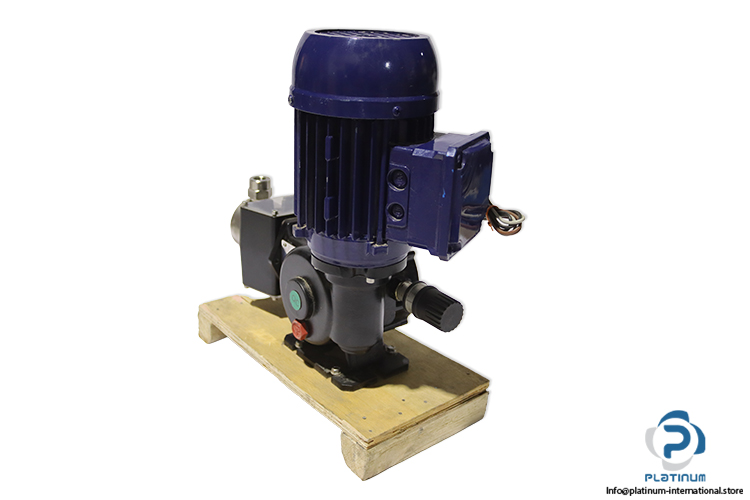

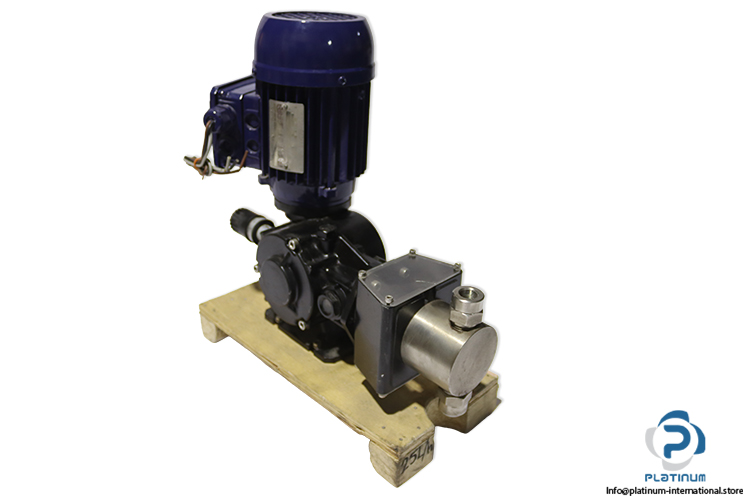

Seko PS1D025A21A4000 Electro Mechanical Dosing Pump
The Seko PS1D025A21A4000 electro mechanical dosing pump is designed for precise and reliable chemical dosing in industrial and process applications. Built for consistent flow control and pressure stability, it ensures dependable performance in continuous operation environments.

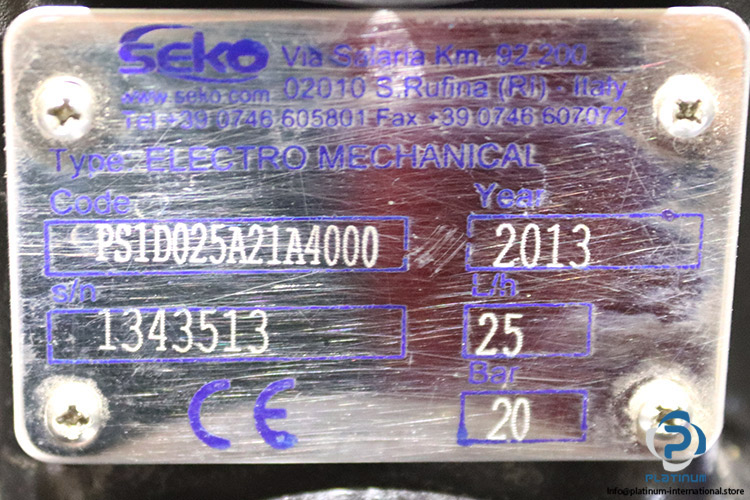

Manufacturer: Seko
Type: Electro Mechanical Dosing Pump
Model: PS1D025A21A4000
Serial No.: 1343513
Attachment
At 230 V AC
At 400 V AC
Ideal for water treatment systems, chemical processing, and industrial dosing applications.
Please contact us via Ask for assistance with any inquiries.
| Flow Rate | 25 L/h |
| Maximum Pressure | 20 Bar |
| Marking | CE |

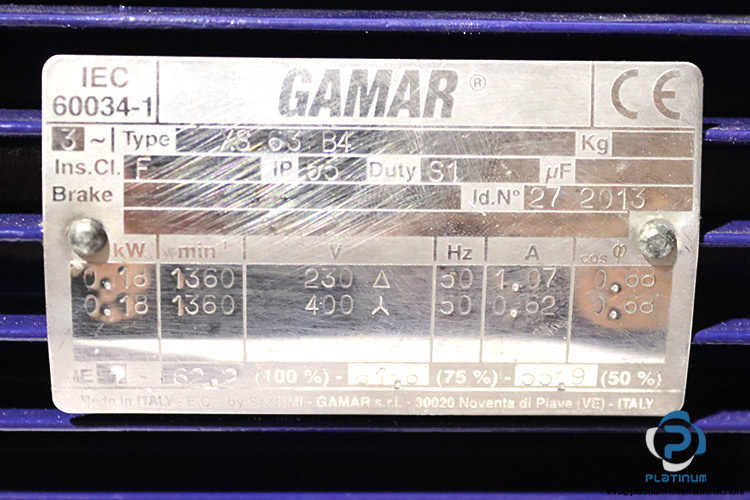

| Motor Model | GAMAR XS 63 B4 Three-Phase AC Motor |
| Connection | Δ (Delta) |
| Frequency | 50 Hz |
| Current | 1.07 A |
| Power Factor | 0.88 |
| Rated Power | 0.18 kW |
| Speed | 1360 r/min |
| Connection | Y (Star) |
| Frequency | 50 Hz |
| Current | 0.62 A |
| Power Factor | 0.68 |
| Rated Power | 0.18 kW |
| Speed | 1360 r/min |
| Protection Degree | IP55 |
| Insulation Class | F |
| Continuous Duty | S1 |
| Standard | IEC 60034-1 |
