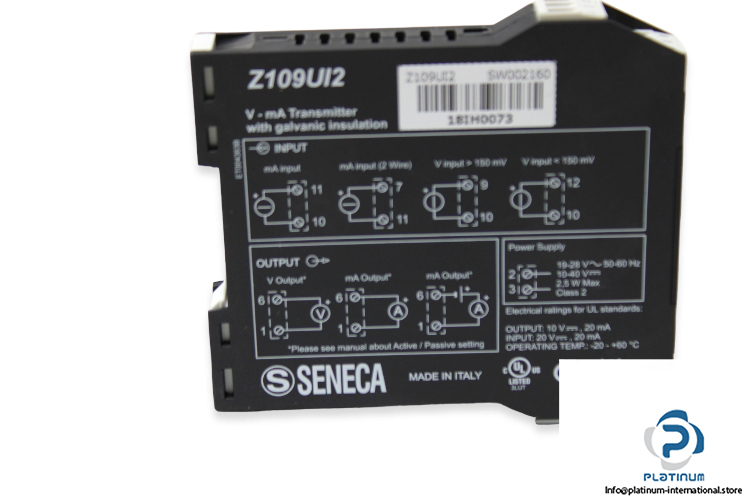

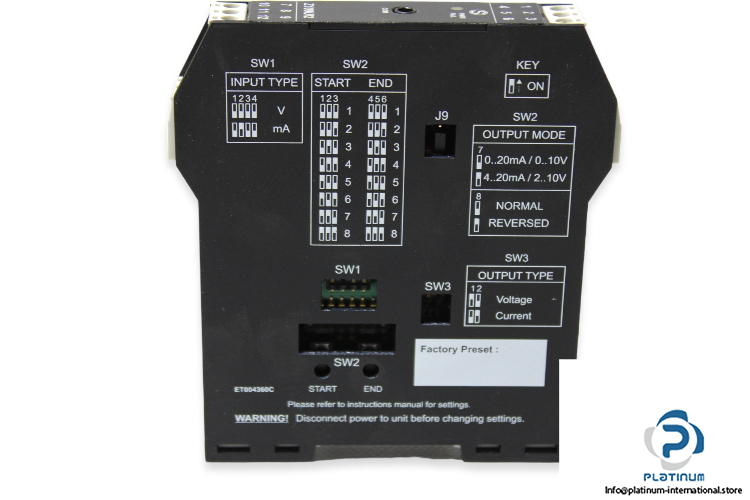

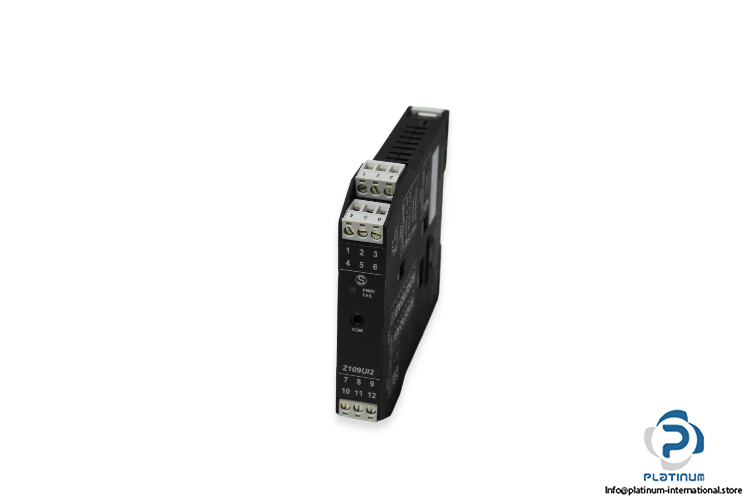

Seneca Z109UI2 Converter Module With Galvanic Insulation
Yeni
Stokta1 birimSevkiyata hazır
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
Manufacturer: Seneca
Type: Converter Module with Galvanic Insulation
Model: Z109UI2
Supply voltage: 10 … 40 VDC, 19-28 VAC 50-60 Hz
Power consumption: 2.5 W MAX.
Input voltage: Bipolar from 100 mV up to 20 V in 9 scales, input impedance 1 MΩ
Current input: Bipolar up to 20 mA, input impedance 50Ω
Output: I: 0-20 / 4-20 mA, max load resistance 600Ω
V: 0-10 V / 2-10 V, min load resistance 2 kΩ
USB Interface: Micro USB connector (frontal panel)
Board terminals: Removable 3-way screw terminals: pitch 5.08mm, section 2.5mm2
Operating Temperature: -10 … +60 °C
Degree of Protection: IP20
Case material: PA6
Dimensions: 100 x 112 x 17.5 mm
