Sick AFM60B-TGRK000S05 Absolute Encoder
Kullanılmış
Stokta36 ünitelerSevkiyata hazır
ABSOLUTE ENCODER SICK AFM60BTGRK000S05, SSI arayüzlü 15 bit çözünürlüklü mutlak kodlayıcıdır, 4096 tur ve sağlam alüminyum muhafazaya sahiptir. Aşırı endüstriyel koşullarda güvenilir pozisyon geri bildirimi sağlar.
15-bit4.096AbsoluteAFM60BTGRK000S05Encoderindustrial-gradeInterfaceIP67-ratedPrecisionResolutionrevolutionsSickSSITemperaturetolerancewideWith
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

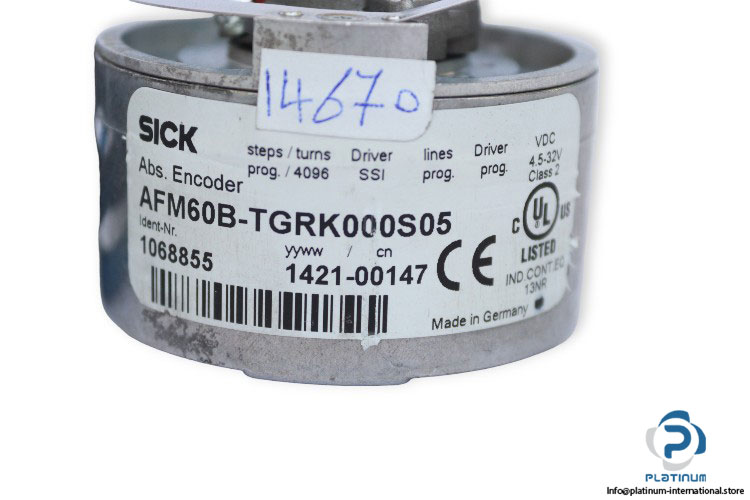

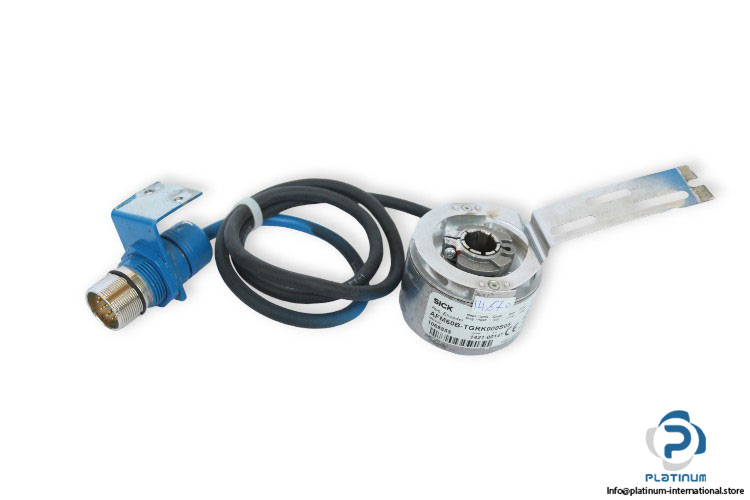

SICK AFM60BTGRK000S05 ABSOLUTE ENCODER
Engineered for high-resolution precision and reliability, the SICK AFM60BTGRK000S05 is a robust absolute encoder designed to perform in harsh industrial environments. Its compact design, versatile interface, and durable build make it ideal for complex automation systems and motion control tasks.
Manufacturer: SICK
Type: Absolute Encoder
Model: AFM60BTGRK000S05
Part No.: 1068855 1421-00147
Series: AFM60
| Number of Steps Per Revolution (Resolution Max.) | 32,768 (15 bit) |
| Number of Revolutions | 4,096 (12 bit) |
| Voltage Supply | 4.5 / 32 V DC |
| Operating Current | 30 mA |
| Power Consumption | 0.7 W |
| Communication Interface | SSI |
| Initialization Time | 50 ms |

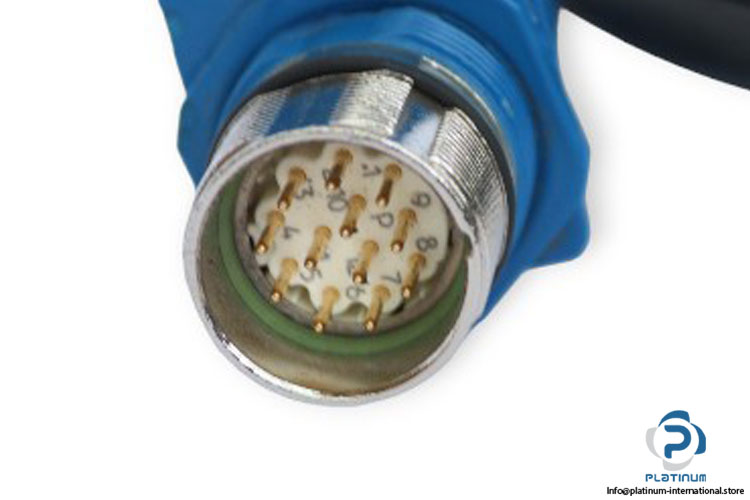

| Connector Type | Cable Connector, Male, M23, 12-Pin |
| Material | Aluminum Die Cast |
| Protection Class | IP65 / IP67 |
| Operating Temperature | -40 / 100 °C |
| Shaft Diameter | 14 mm |
| Encoder Diameter | 60 mm |
