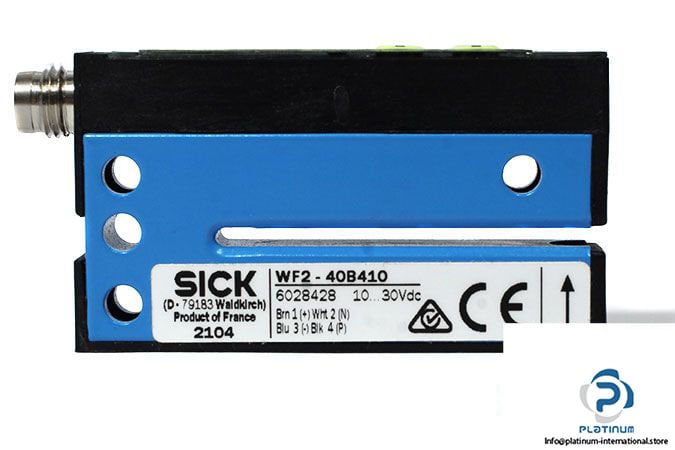

Sick WF2-40B410 Fork Photoelectric Sensor

Manufacturer: SICK

Type: Fork Photoelectric Sensor

Model: WF2-40B410

Part No.: 6028428

Sensing Mode: Through Beam

Housing Design (Light Emission): Fork Shaped

Output Type: PNP/NPN

Supply Voltage: 10 … 30 V DC

Fork Width: 2 mm

Fork Depth: 42 mm

Light Source: LED, Infrared Light

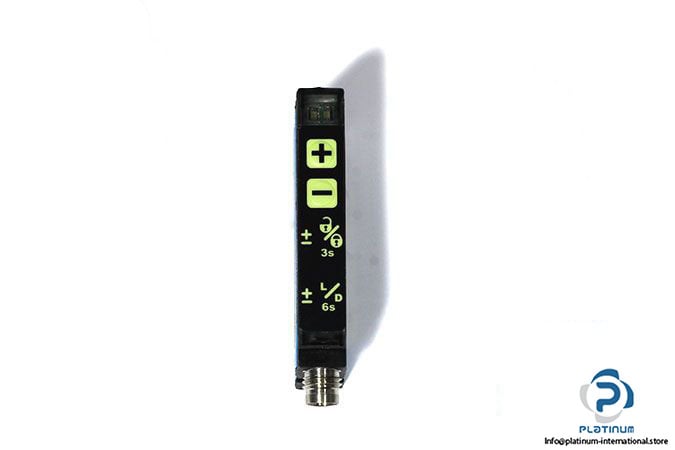

Output Function: Light/Dark Switching, Selectable via Button

Switching Frequency: 10 kHz

Stability of Response Time: ± 20 µs

Output Current Max: 100 mA

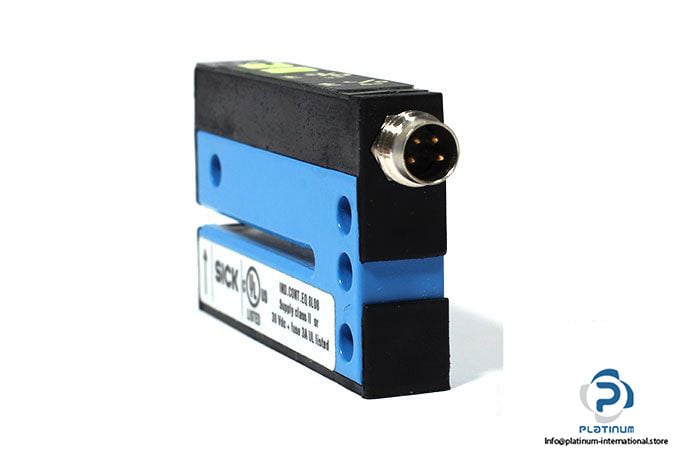

Connection Type: Connector M8, 4-Pin

Dimensions (W x H x D): 10 mm x 32 mm x 57 mm

Protection Class: III

Enclosure Rating: IP65

Ambient Operating Temperature: -20 … 60 °C
