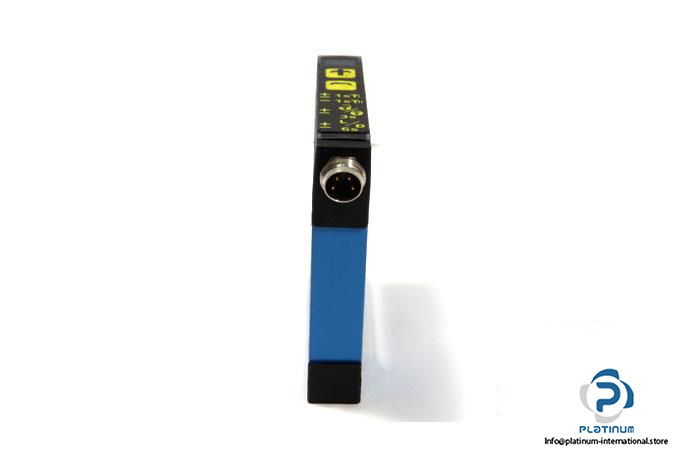

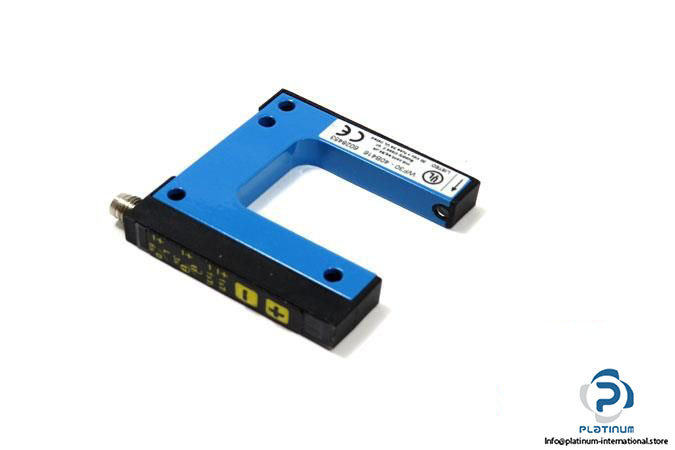

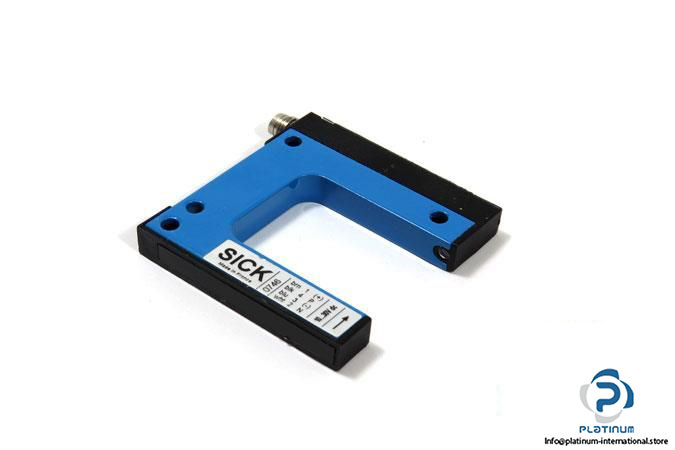

Sick WF30-40B416 Fork Sensor

Manufacturer: SICK

Type: FoFORK SENSOR

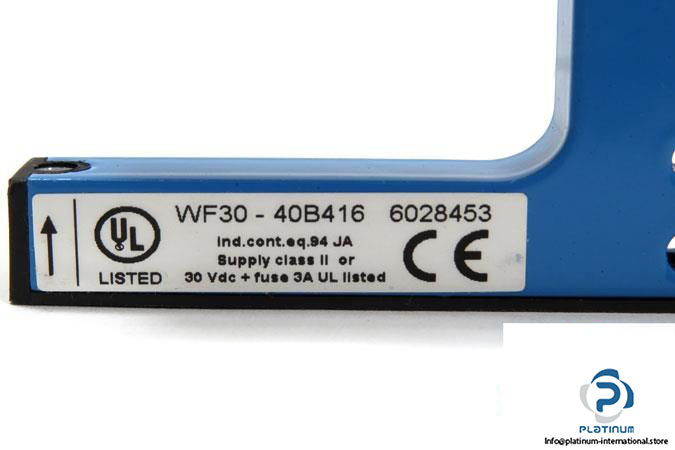

Model: WF30-40B416

Part No.: 6028453

Principle: Optical detection principle

Minimum detectable object: 0.2 mm

Response time max.: 100 µs

Operating Voltage: 10 … 30 V DC

Switching frequency: 10 kHz

Rated operating current: 100 mA DC

Ripple: 10%

Switching output: PNP/NPN

Switching mode: Light/dark switching

Light source: Infrared light

Adjustment: Plus/minus button

Connector type: M8 Connector, 4-pin

Protection class: III

Enclosure rating: IP65

Ambient Operating temperature: -20 … 60°C

Dimensions (W X HX D): 10 X 60 X 57 mm

Fork width: 30 mm

Fork depth: 42 mm

Housing: Fork shaped

Housing material: Metal, Aluminum

Condition: New
