Siemens 3RT1024-1AL20 Contactor
Yeni
Stokta2 ünitelerSevkiyata hazır
Contactor
The SIEMENS SIRIUS 3RT1024-1AL20 is a size S0 industrial contactor with 3 poles, 23 kW AC-1 power rating, and 230 V AC control voltage, ideal for reliable motor and power switching applications.2323033RT1024-1AL20ACComponentContactContactorControlIECIndustrialkWmotorPoleS0SiemensSiriusSizeSwitchV
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

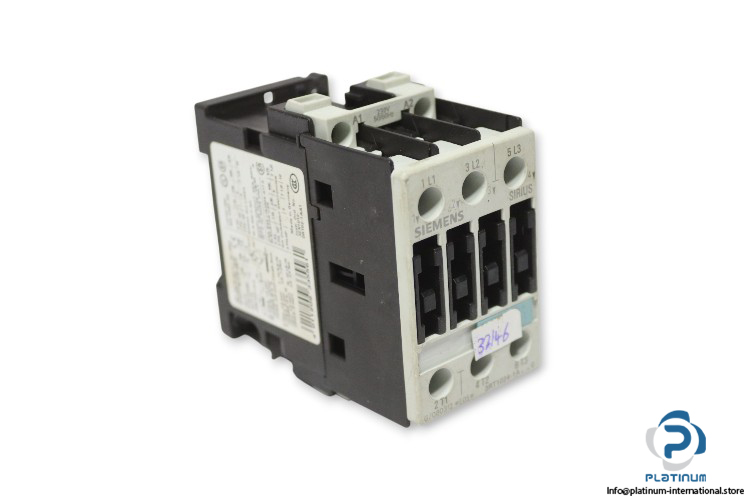

SIEMENS SIRIUS 3RT1024-1AL20 Contactor
The SIEMENS SIRIUS 3RT1024-1AL20 Contactor is a compact and reliable switching device designed for motor control and industrial power circuits. Built in size S0 and compliant with IEC standards, it offers dependable performance for a wide range of automation applications.
Manufacturer: SIEMENS
Type: Contactor
Model: 3RT1024-1AL20
Installation Order Number: 3ZX1012-0RT02-1AA1
Serial Number: 4011209 335561
Brand Name: SIRIUS
Size: S0
| Degree of Pollution | 3 |
| Protection Class | IP20 (front) |
| Number of Poles for Main Current Circuit | 3 |
| Number of NO Contacts for Main Contacts | 3 |
| Number of NC Contacts for Main Contacts | 0 |
| Operating Power at AC-1, 400 V | 23 kW |
| Operating Power at AC-2, 400 V | 5.5 kW |
| Operating Power at AC-3, 400 V | 5.5 kW |

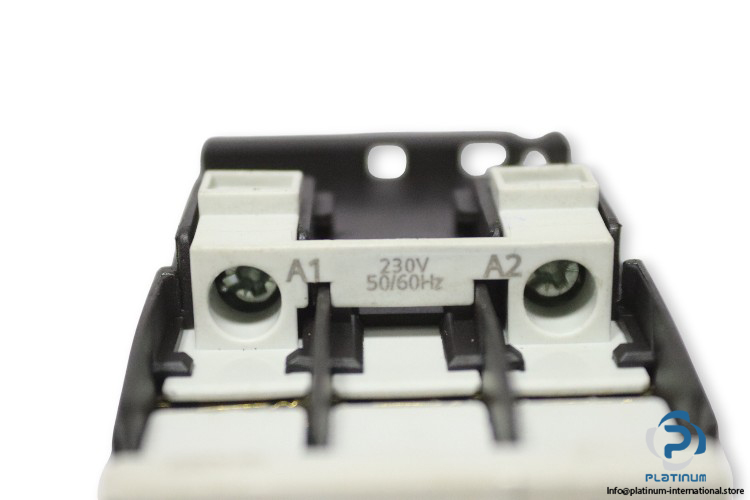

| Control Supply Voltage | 230 V AC |
| Standard | IEC / EN 60947-4-1 |
| Dimensions (W x D x H) | 45 x 91 x 85 millimeters |
