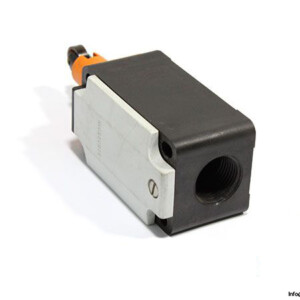

Siemens 3SE2 230-1D Position Switch
POSITION SWITCH
Durable Siemens mechanical position switch with roller plunger, IP66 protection, and 500 V switching capacity, suitable for demanding industrial applications.SIEMENS 3SE2230-1D POSITION SWITCH
The Siemens 3SE2230-1D position switch is a robust and precise mechanical switching device, engineered for reliable performance in industrial automation and safety applications. Built to IEC/EN 60947-5-1 standards, it ensures accurate position detection and long service life, even in demanding environments.
Manufacturer: Siemens
Type: Position Switch
Model: 3SE2230-1D
Standard: IEC/EN 60947-5-1
Ref No.: GB14048.5-2001
Inst Ord No.: 3ZX1012-0SE32-0BA1
| Design of the Switch Head | Roller Plunger |
| Active Principle | Mechanical |
| Switching Voltage Max. | 500 V |
| Connection | M20 x 1.5 |
| Auxiliary Contacts | 1 Normally Open and 1 Normally Closed |
| Fastening Method | Screw Fixing |
| Protection Class | IP66 |
| Dimensions | 37 x 40 x 118 mm |
| Ambient Operating Temperature | -30 / 85 °C |
