SKF Nukr 72 A Stud Type Track Roller

Manufacturer: SKF

Type: Cam follower (stud-type track roller) with integral sealing and relubrication feature

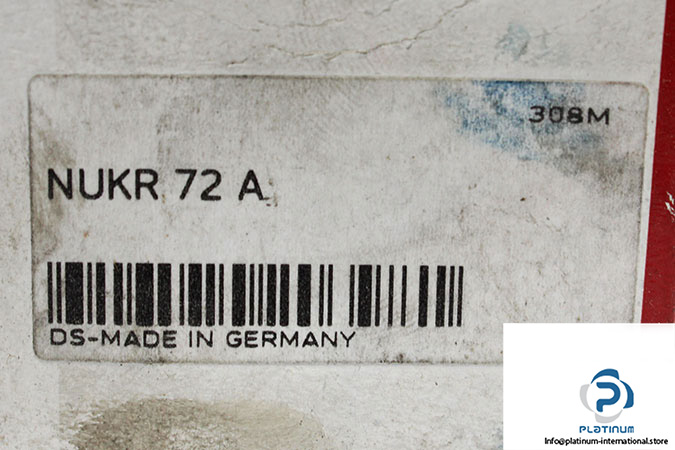

Model: NUKR72 A

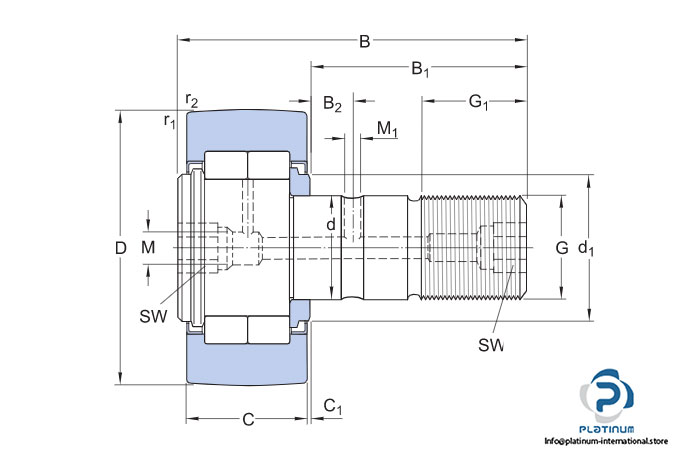

Dimensions

Outside diameter D: 72 mm

Attachment diameter d: 24 mm

Total length B: 80 mm

Width outer ring C: 28 mm

Thread stud G: M24x1.5

Basic load ratings:

Dynamic C: 45.7 kN

Static C₀: 58.5 kN

Fatigue load limit P_u: 7.1 kN

Limiting speed: 2000 rpm

Sealing: Labyrinth Seal on both sides
