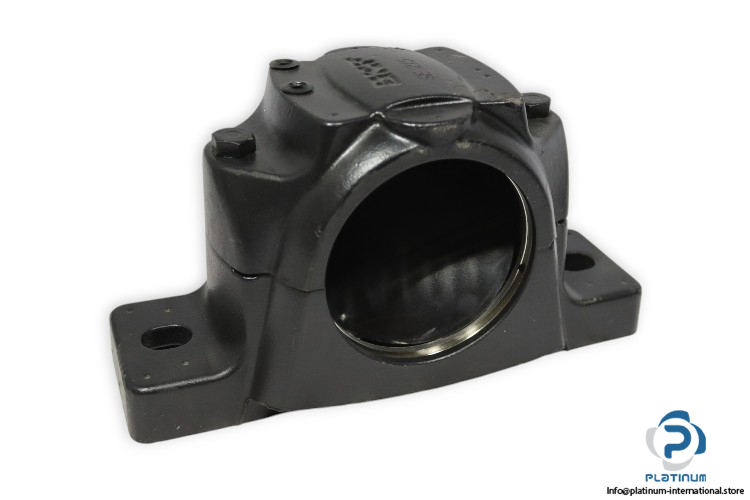

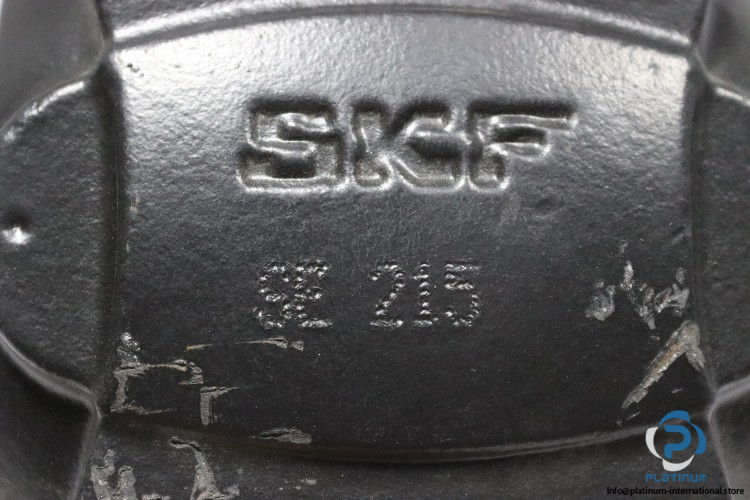

SKF SE 215 Plummer Block Housing

SKF Plummer Block Housing SE215

Manufacturer: SKF

Type: Plummer Block Housing

Model: SE215

The SKF Plummer Block Housing SE215 is a robust and reliable solution designed for supporting bearings in various industrial applications. Constructed from high-quality cast iron, this housing offers durability and resistance to wear, ensuring long-lasting performance. With precise design and quality construction, it ensures secure bearing placement and alignment. It is ideal for heavy-duty applications requiring high axial breaking load capacity and stable operation.

Technical Specifications:

• Bore Diameter: 102.5 mm
• Diameter of Bearing Seat: 130 mm
• Width of Bearing Seat: 56 mm
• Centre Height (Pillow Block): 80 mm
• Centre Distance Between Bolt Holes: 230 mm
• Attachment Bolt Diameter: 16 mm
• Overall Width: 115 mm
• Overall Height: 155 mm
• Overall Length: 280 mm
• Inside Width Between Seal Grooves: 87 mm
• Size of Cap Bolts: M12x65
• Tightening Torque for Cap Bolts: 80 N·m
• Housing Material: Cast Iron
• Breaking Load (Axial): 135 kN

This plummer block housing is ideal for use in demanding applications that require stable and durable bearing support, ensuring smooth operations and longevity in a variety of industrial environments.
