Stahl 9461/12-08-21 Analog Input Module

Stokta2 ünitelerSevkiyata hazır

99,99$

IS1 sistemi için tasarlanmış STAHL AIM HART 08 Analog Giriş Modülü, 2 telli ve 4 telli vericiler için kanallarla HART iletişimini destekler ve endüstriyel otomasyon sistemleri için DIN ray montajına sahiptir.

Üretici
STAHL
SKU
1096064
Kategori
Others
Koşul
Kullanılmış
Paylaş
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

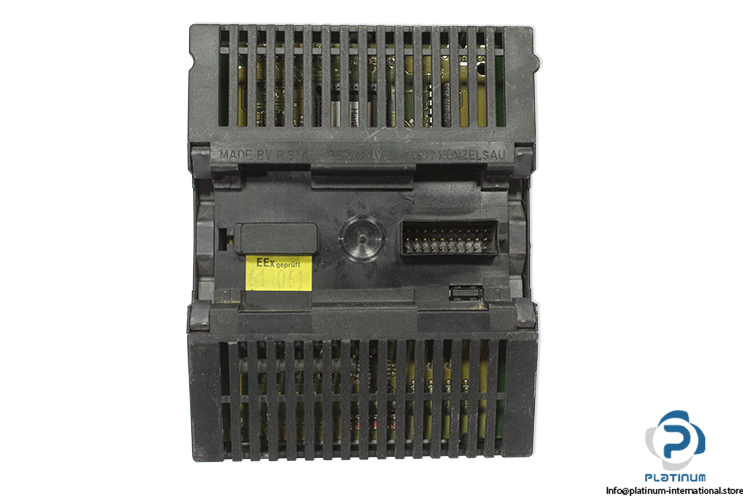

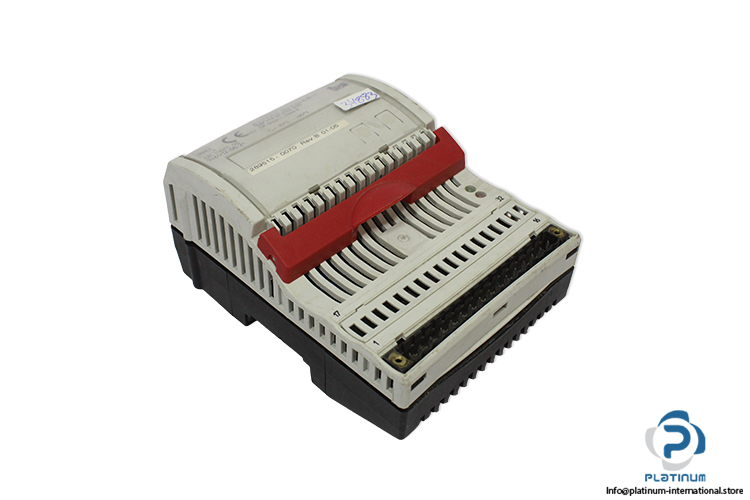

STAHL AIM HART 08 Analog Input Module

The STAHL AIM HART 08 analog input module is designed for use in the IS1 remote I/O system, providing reliable signal acquisition for industrial automation and hazardous area applications. This module supports HART communication and enables precise monitoring of transmitter signals in process control systems.

Manufacturer: STAHL

Type: Analog Input Module

Model: AIM HART 08

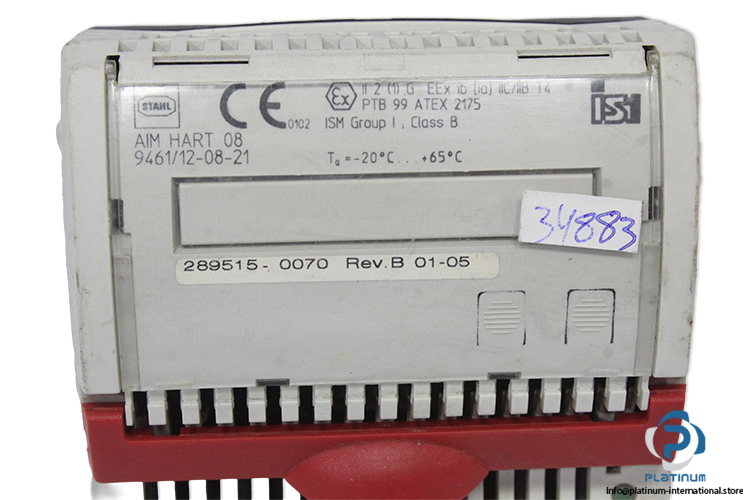

Part No.: 9461/12-08-21

Code: 289515-0070

Revision: B 01-05

Series: 9461

SystemIS1
Number Of Channels4
Signal Range0 ... 20 mA, 4 ... 20 mA
Minimum Signal0 mA
Maximum Signal23.5 mA
Supply Voltage16.0 V at 20 mA
Analog Input ConfigurationHART 4 channels for 2-wire HART transmitters and 4 channels for 4-wire HART transmitters
2-Wire Transmitter Maximum Voltage Uo / Voc26.2 V
Current Io / Isc91 mA
Maximum Power Po591 mW
4-Wire Transmitter Maximum Voltage Uo / Voc28 V
Maximum Voltage Ui / Vmax28 V max.
Current Io / Isc6 mA max.
Current Ii / Imax144 mA
Maximum Power Po42 mW
Operator Interface Operation LEDGreen "RUN"
Fault LEDRed "ERR"
Auxiliary Power Maximum Power Consumption4.1 W
Maximum Power Dissipation2.7 W

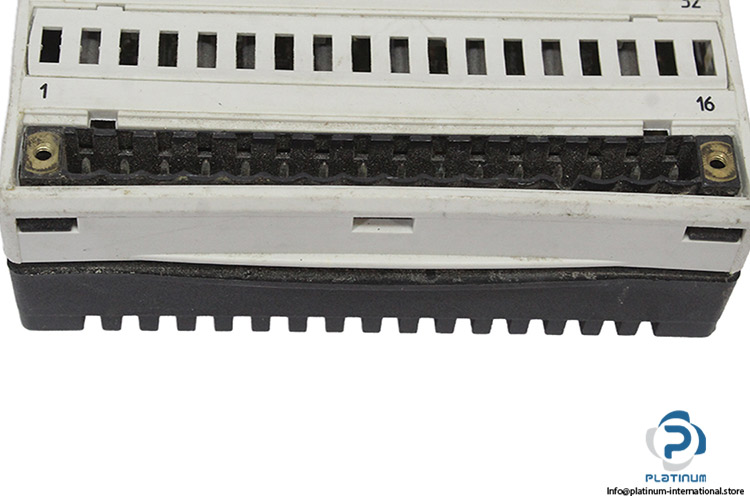

Electrical ConnectionEx i field signals plug-in terminals, 16-pole with catch, 2.5 mm² / up to 14 AWG, screw or spring type
Ambient Temperature-20 ... +65 °C
Module EnclosurePolyamide 6GF
Fire Resistance (UL 94)V2
Degree Of Protection (IEC 60529)Modules IP30, Connections IP20
Mounting TypeOn 35 mm DIN Rail NS 35/15
Mounting OrientationHorizontal and Vertical
Explosion ProtectionExplosion Proof
