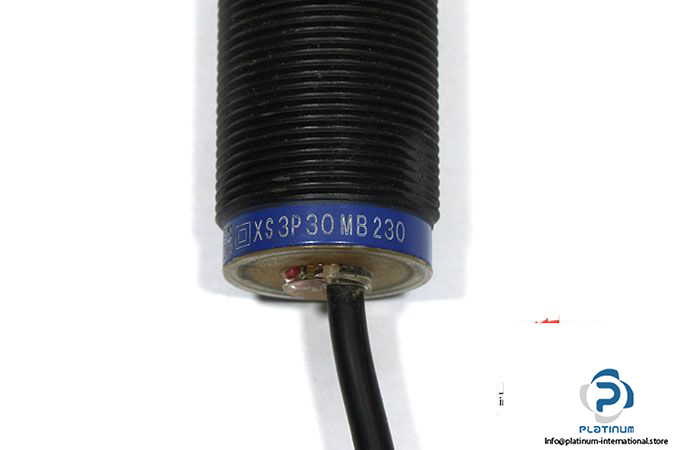

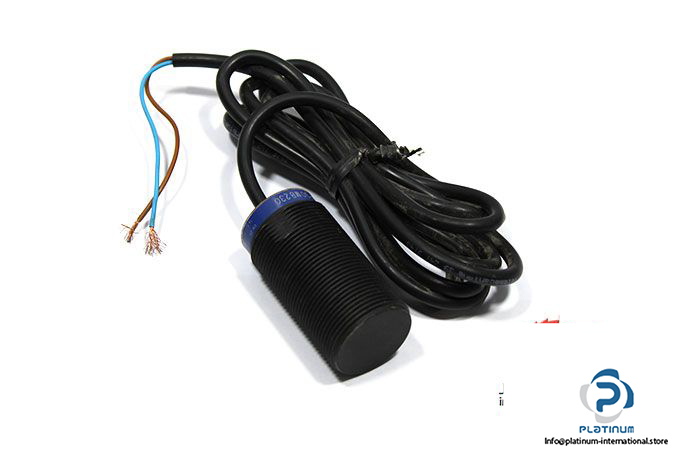

Telemecanique XS3P30MB230 Inductive Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS3P30MB230

Operating Voltage: 24 … 240 V AC / DC

Operating Current: 5 … 200 mA DC / 5 … 300 mA AC

Maximum Voltage Drop: < 5.5 V
Discrete Output Function: Normally Closed

Sensor Design: Cylindrical M30

Connector Type: Cable 2 m, 2-Wire

Ambient Operating Temperature: -25 … 70 °C

Diameter, Length: 30, 59 mm

Body Type: Fixed

Housing Material: Plastic

Enclosure Material: PPS

Mounting: Flush-Mountable

Weight: 0.125 kg
