Weldmuller 1498100000 Connector
Yeni
Stokta1 birimSevkiyata hazır
WELDMULLER Konnektör HDC HA 3 MS 400 V, 16 A sınıfında, 3 kutuplu, vida bağlantılı ve geniş çalışma sıcaklığı aralığına sahip sağlam erkek konnektör.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

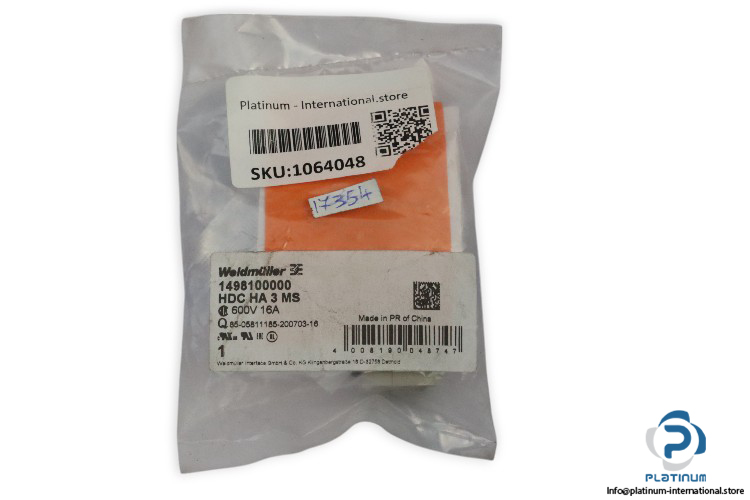

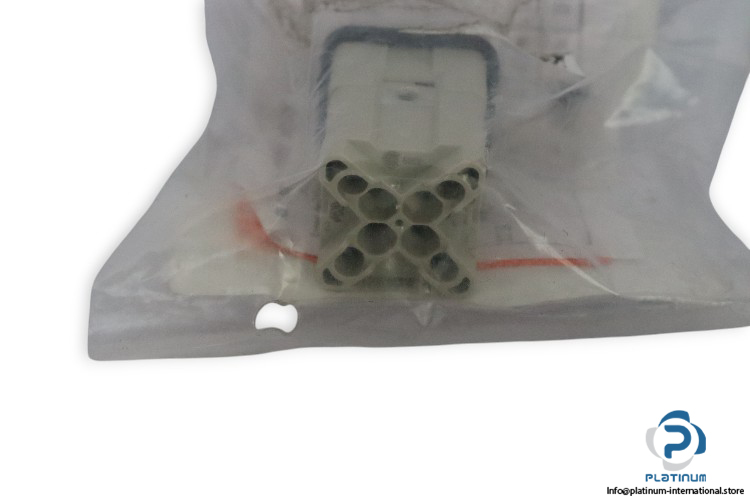

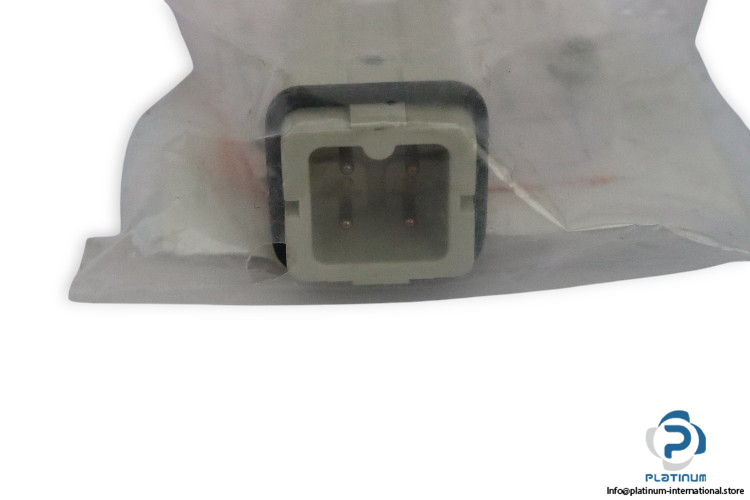

WELDMULLER Connector HDC HA 3 MS
The WELDMULLER HDC HA 3 MS Connector (Part No.: 1498100000) is a robust and reliable male connector designed for industrial applications. With a rated voltage of 400 V and a current capacity of 16 A, it provides excellent performance and durability. The screw connection type ensures secure wiring, while the beige housing is built to withstand extreme temperatures ranging from -40 °C to 125 °C.
Specifications:
- Manufacturer: WELDMULLER
- Type: Connector
- Model: HDC HA 3 MS
- Part No.: 1498100000
- Rated Voltage: 400 V
- Rated Current: 16 A
- Rated Impulse Voltage: 4 kV
- Max. Torque for Main Contact: 0.5 Nm
- Conductor Cross-Section: 2.5 mm²
- Fixing Screw: M3
- Number of Poles: 3
- Connection Type: Screw Connection
- Type: Male
- Color: Beige
- Dimensions (H X W X D): 36.5 x 21 x 21 mm
- Operating Temperature: -40 °C … 125 °C
