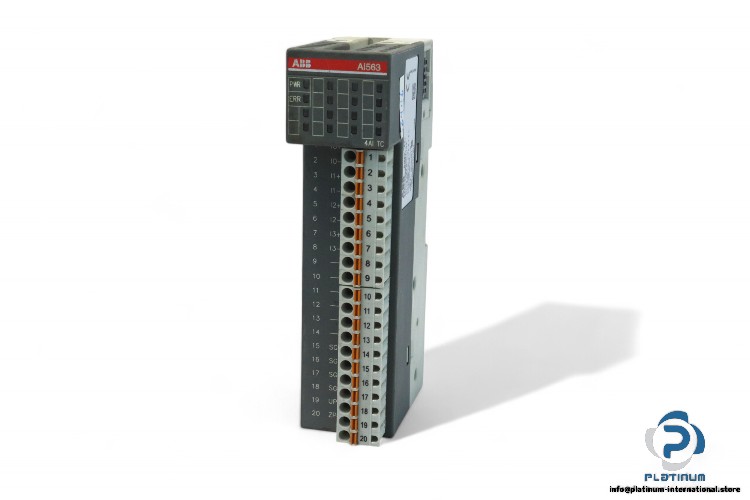

ABB AI563 Analog Input Module

Manufacturer: ABB
Type: ANALOG INPUT MODULE
Model: AI563
Part no.: 1TNE968902R1103

Connections Terminal: 19 for UP (+24 V DC) and terminal 20 for
ZP (0 V)
Wiring method: Spring/screw terminals
Rated value: 24 V DC
Degree of protection: IP 20
Current consumption: 0.10 A
Wire loop resistance: 100 „¦
Mounting with screws: M4
Fastening torque: 1.2 Nm
Number of channels per module: 4 configurable thermocouple (TC) inputs
Operation temperature:
0 … 60 °C (horizontal mounting of modules)
0 … 40 °C (vertical mounting of modules)
