ABB LS31P13B11 Limit Switch
جديد
متوفر2 وحداتجاهز للشحن
33,33$
Limit Switch
The ABB LS31P13B11 limit switch provides accurate and reliable position detection with a zinc die-cast head, roller lever actuator, and IP65 protection for industrial automation systems.1NC1NO1SBV010113R1211ABBAutomationdie-castHeadIndustrialIP65LeverLimitLS31P13B11PositionRollerSwitchZinc
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

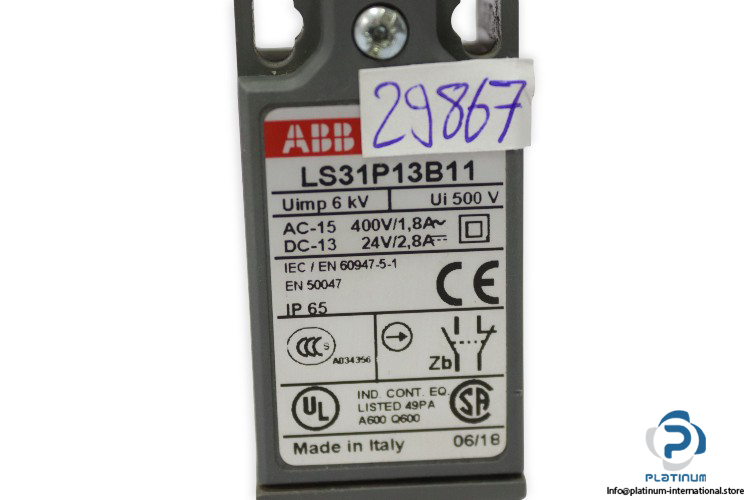

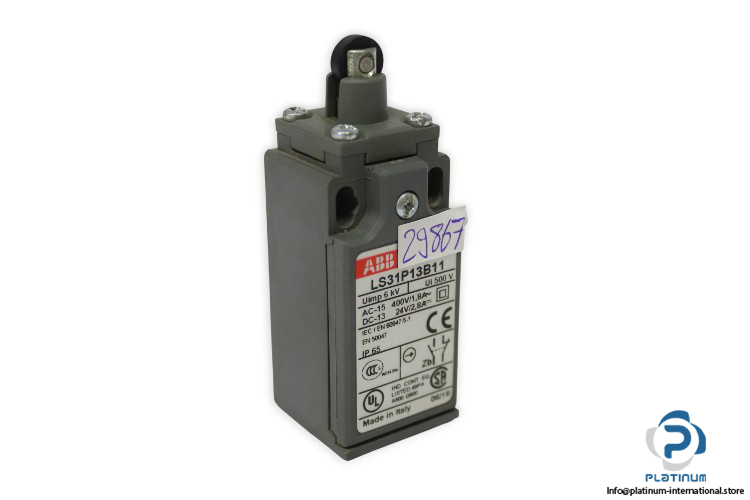

ABB LS31P13B11 Limit Switch
The ABB LS31P13B11 Limit Switch is a robust and precise mechanical switch designed for reliable position detection and control in industrial automation systems. Built with a durable zinc die-cast head and roller lever actuator, it ensures high performance and long operational life even in demanding environments.
Manufacturer: ABB
Type: Limit Switch
Model: LS31P13B11
ID No.: 1SBV010113R1211
Operational Ratings:
| AC-15 | 130 V / 5.5 A, 230 V / 3.1 A, 240 V / 3 A, 24 V / 10 A, 400 V / 1.8 A |
| DC-13 | 110 V / 0.6 / 66 A, 24 V / 2.8 / 67.2 A, 250 V / 0.27 / 67.5 A |
| Rated Insulation Voltage | 500 V AC |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Auxiliary Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Type of Actuator | Roller Lever |
| Head Material | Zinc Die-Cast |
| Protection Class | IP65 |
| Operating Temperature | -25 / 70 °C |
