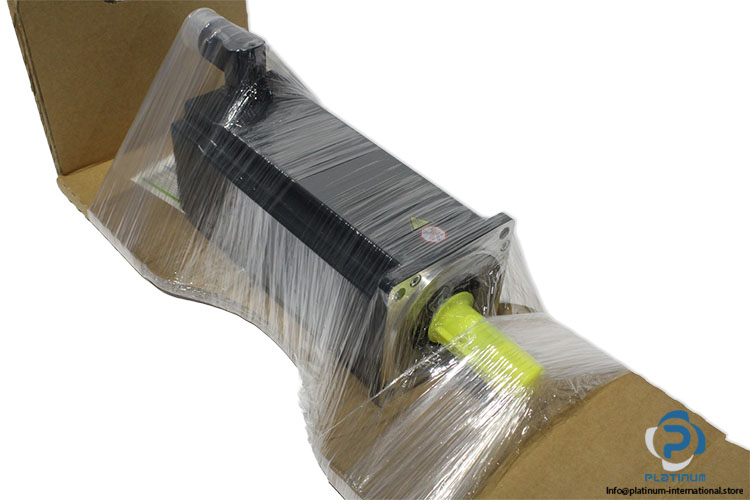

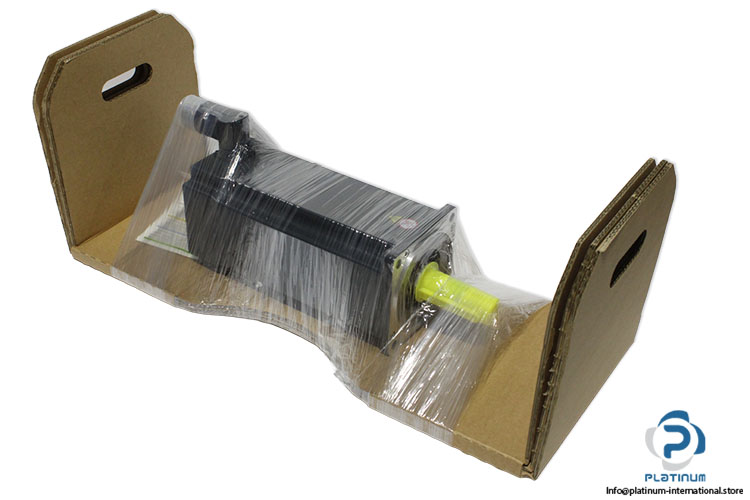

Beckhoff AM8063-0Q2B-0000 Servomotor

متوفر2 وحداتجاهز للشحن

1 555,55$

Servomotor The BECKHOFF AM8063-0Q2B-0000 is a high-performance servomotor delivering 8 kW power, 41.4 Nm torque, and 3000 rpm speed, designed for demanding industrial drive applications.

الشركة المصنّعة
BECKHOFF
SKU
1096823
الفئة
Servo Motors
الحالة
جديد
مشاركة
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

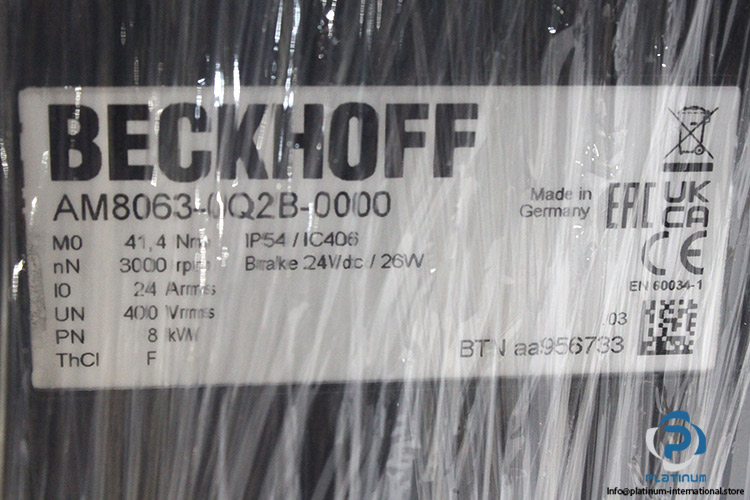

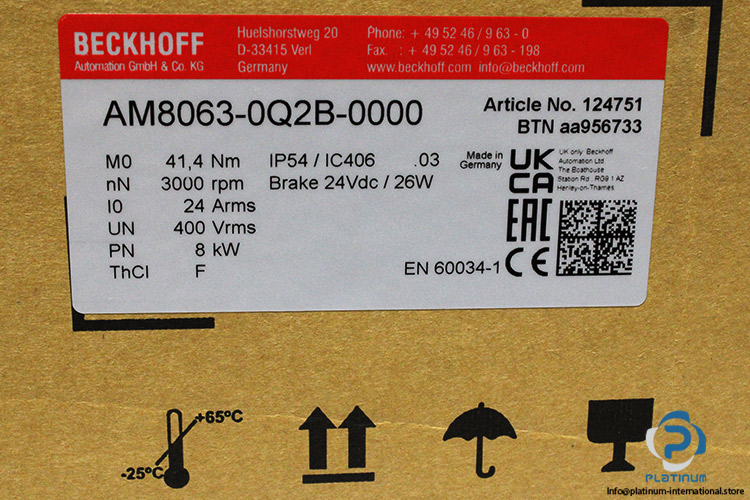

Part No.124751
BTN standsaa956733
Flange size142 mm
Rated Voltage400 V
Rated Speed3000 rpm
Stall Torque41.4 Nm
Rated Power8 KW
Stall Current24 A
standardEN 60034-1
Brake Voltage, power24Vdc / 26W
Thermal classF
Rotor moment of inertia J [kgcm2]29
Rotor moment of inertia with brake J [kgcm2]34.90
Number of poles10
Protection ratingselectable IP20, IP65
Design formflange-mounted according to IM B5, IM V1, IM V3
Materialaluminum
Coating/surfaceacrylic powder-coated, dark gray, similar to RAL7016
Coolingexternal axial ventilation

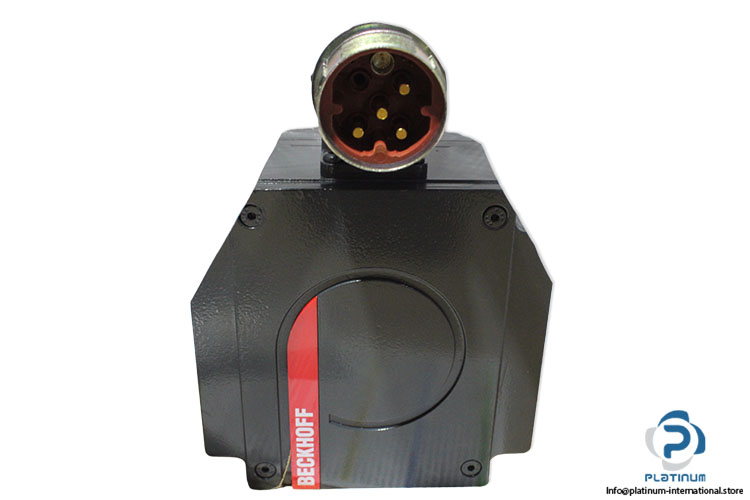

Connection technologyM40 speedtec® plug
Static friction torque MR [Nm]0.15
Thermal time constant tTH [min]41
Standard housing versionIP65
Standard shaft feedthrough versionIP54
Shaft feedthrough with shaft sealing ringIP65
Shaft diameter32 mm
suitable fordrive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range
Stock keyJO-004
ConditionNew
SKU1096823
Weight22,7

You May Also Need

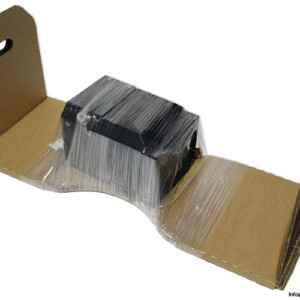

Beckhoff AX2090-L806-0001 AIR Cooling KIT
