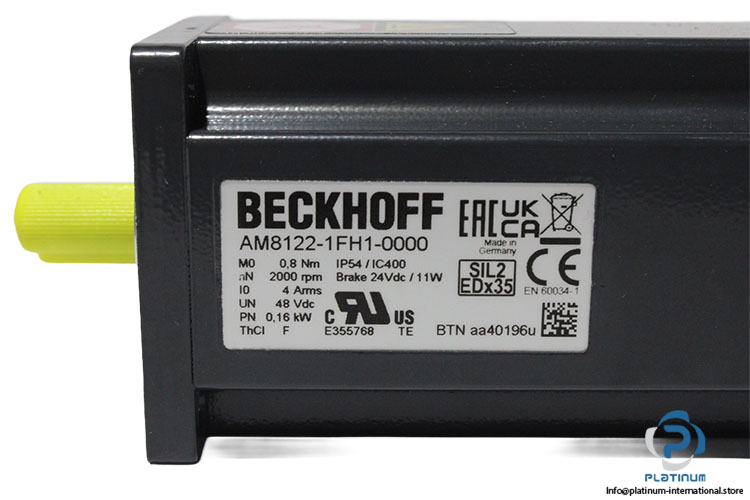

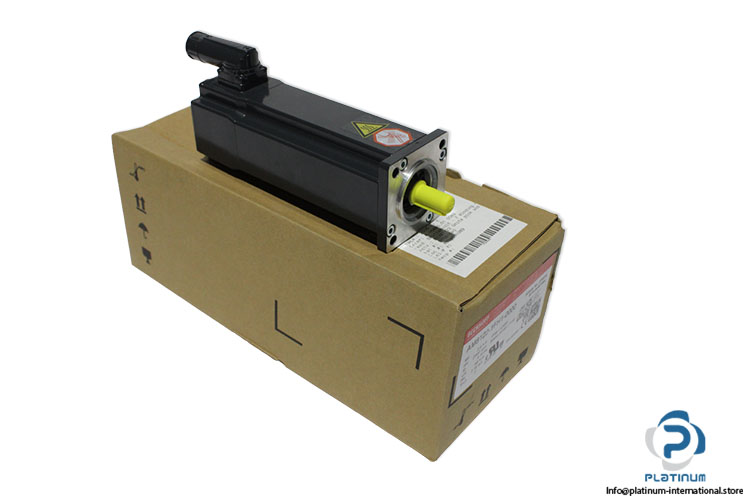

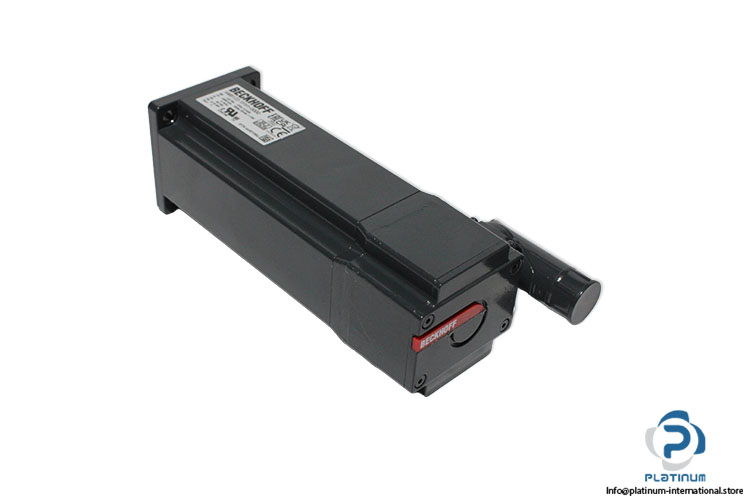

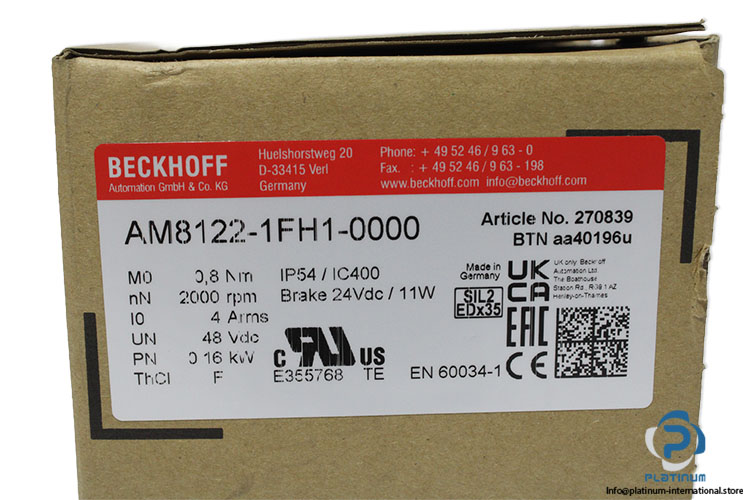

Beckhoff AM8122-1FH1-0000 Servomotor
جديد
متوفر8 وحداتجاهز للشحن
499,99$
Servomotor The BECKHOFF AM8122-1FH1-0000 is a compact 48 V DC servomotor delivering 0.16 kW power, 0.8 Nm torque, and 2000 rpm speed, designed for highly dynamic drive applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 270839 |
| BTN stands | aa40196u |
| Rated Voltage | 48 vdc |
| Rated Speed | 2000 rpm |
| Stall Torque | 0.8 Nm |
| Rated Power | 0.16 KW |
| Stall Current | 4 A |
| standard | EN 60034-1 |
| Brake Voltage, power | 24Vdc / 11W |
| Thermal class | F |
| suitable for | highly dynamic drive solutions in compact design in the voltage range of < 50 V DC |
| Rotor moment of inertia | 0.253 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder |
| Cooling | convection |

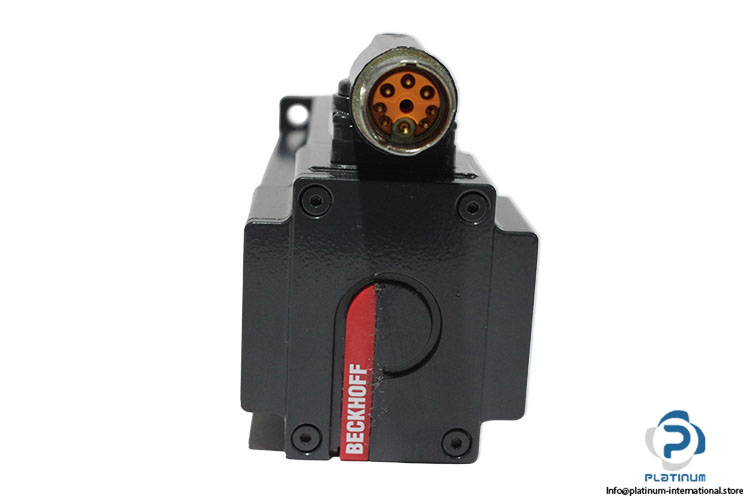

| Connection technology | itec® plug |
| Ambient temperature (operation) | 5…40°C |
| Protection rating | IP54 |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| Shaft diameter | 9 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096835 |
| Weight | 1,8 |
