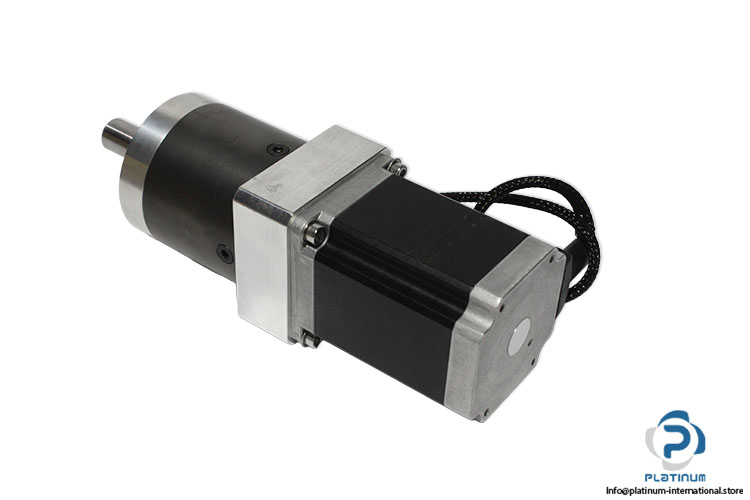

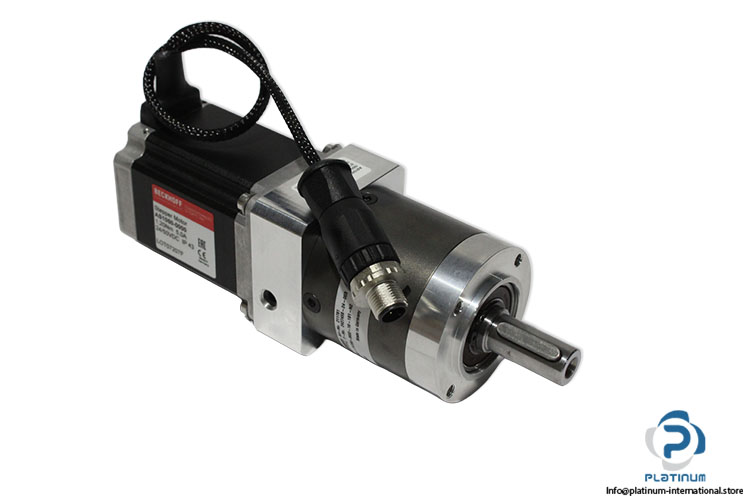

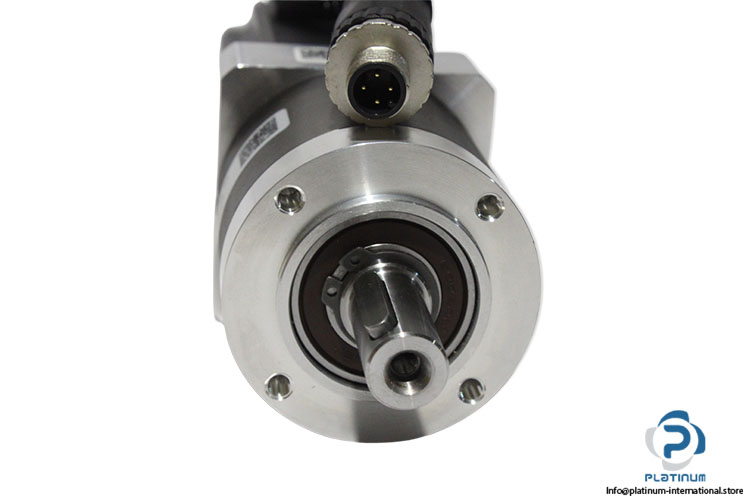

Beckhoff AS1050-0000 Stepper Motor With Gear

متوفر4 وحداتجاهز للشحن

577,77$

Stepper Motor With Gear The BECKHOFF AS1050-0000 stepper motor with planetary gearbox delivers precise motion control, 1.2 Nm torque, and a 16:1 gear ratio, operating at 24/50 VDC for industrial automation applications.

الشركة المصنّعة
BECKHOFF
SKU
1096831
الفئة
Servo Motors
الحالة
جديد
مشاركة
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

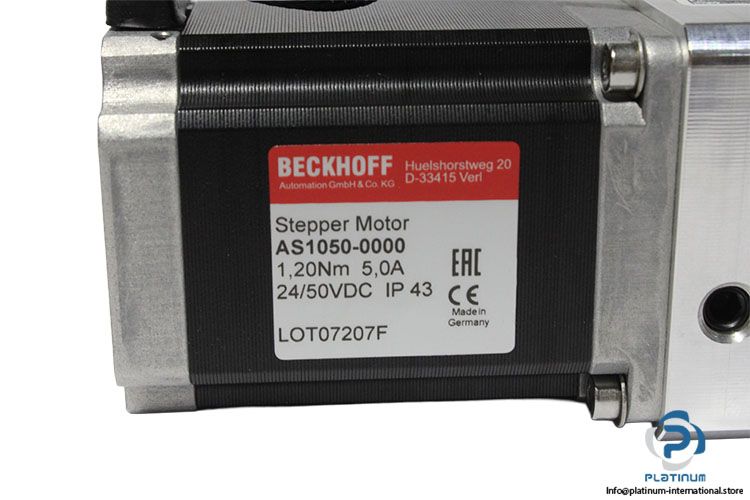

STEPPER MOTOR ModelAS1050-0000
seriesAS1000

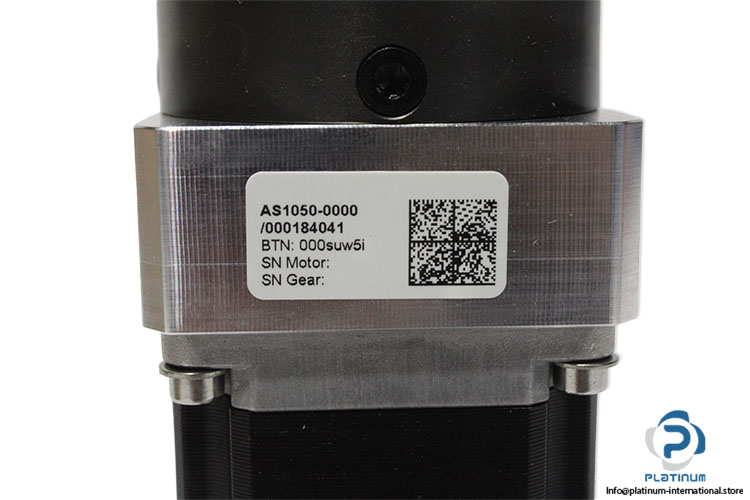

MOTOR Model.AS1050-0000/000184041
Part No.040068
Variant000184041
LOT No07207F
BTN STANDS000suw5i
Shaft Diameter6.35 MM
Rated Voltage24/50VDC
Resolution1.8°/200 steps
Rotor moment of inertia0,36 kg cm²
Holding Torque1.2 Nm
Rated Current5 A
Axial load [N]15
Radial load 0 mm from the shaft end [N]52
Radial load 5 mm from the shaft end [N]65
Radial load 10 mm from the shaft end [N]85
Radial load 15 mm from the shaft end [N]123
Backlash at standstill [°]± 0,054
Axial backlash max.1) [mm]0,075
Radial backlash max.2) [mm]0,025
Connection technologyM12 cable bundle
Protection classIP43

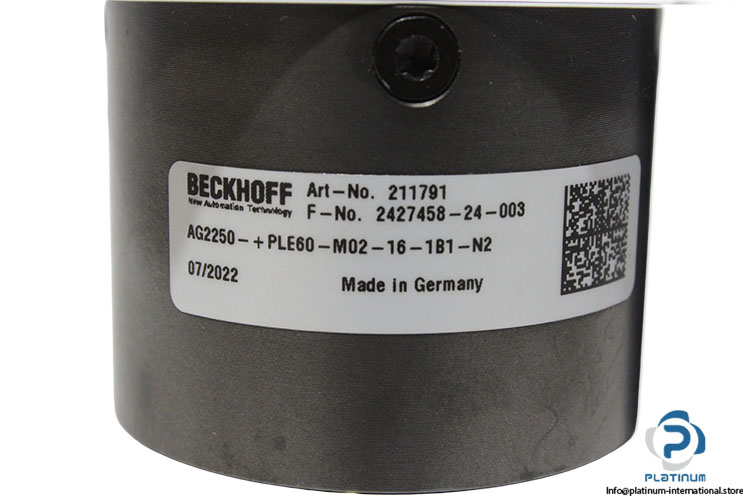

Attached with1Beckhoff AG2250-+PLE60-M02-16-1B1-N2 series planetary gearbox
Art-No., planetary gearbox211791
F-No. planetary gearbox2427458-24-003
Design, planetary gearboxstraight
Variant, planetary gearboxeconomy
Type, planetary gearboxeconomy
Nominal output torque, planetary gearbox44 Nm
Max. acceleration torque, planetary gearbox70 Nm
Gear stages, planetary gearbox2
Gear ratio, planetary gearbox16
Max. torsional backlash standard/reduced, planetary gearbox= 12/– arcmin
Ambient temperature (operation), planetary gearbox-25…+40°C
Protection ratingIP54
Design formflange-mounted according to B14
Coating/surfacepost-oxidized, heat-treated steel
Stock keyJO-004
ConditionNew
SKU1096831
Weight2,55
