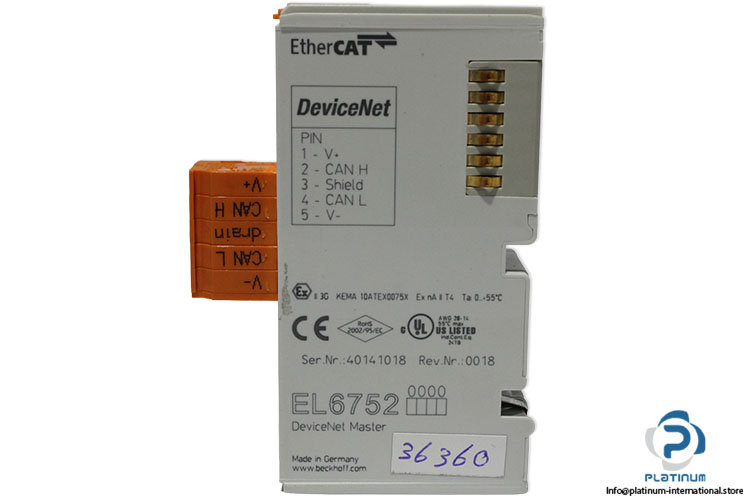

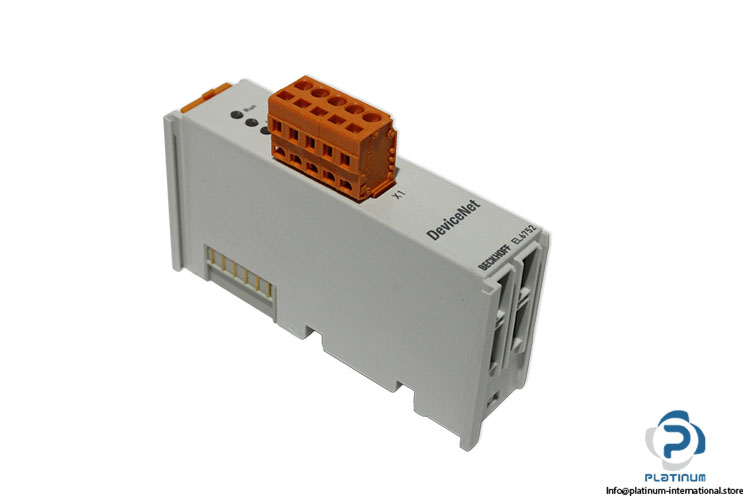

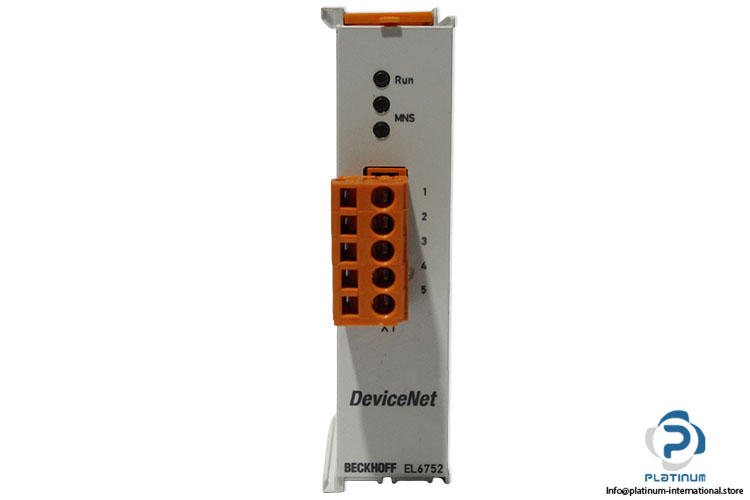

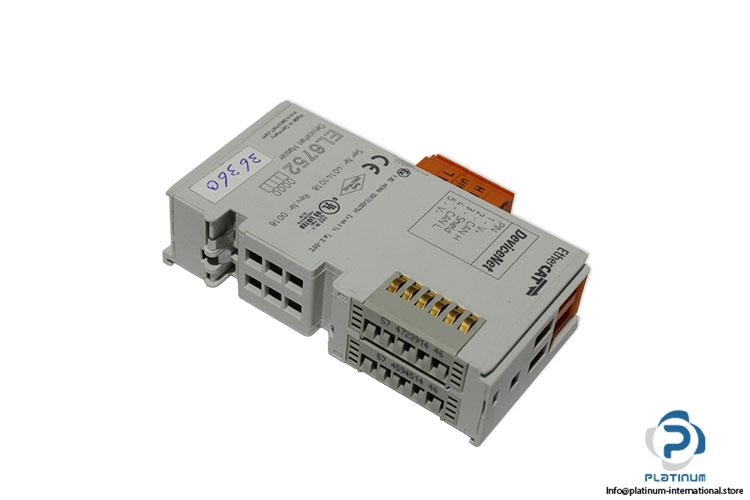

Beckhoff EL6752 Ethercat Terminal

متوفر1 وحدةجاهز للشحن

99,99$

EtherCAT Terminal Beckhoff EL6752 EtherCAT terminal with integrated DeviceNet master interface, high-speed communication, compact DIN rail design, and reliable industrial network connectivity.

الشركة المصنّعة
BECKHOFF
SKU
1097593
الفئة
PLC Modules
الحالة
جديد
مشاركة
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
Serial No.40141018
Rev. No.0018
No. of channels1
FieldbusDeviceNet
Connection TechnologyDeviceNet master terminal
Data transfer rates125, 250, 500 kbaud
Interfacesopen style connector, 5-pin, according to DeviceNet® specification, galvanically decoupled (Connector is supplied.)
CommunicationDeviceNet® network master (scanner)
ProtocolEtherCAT
Bus devicemax. 63 slaves
Hardware diagnosticsstatus LEDs
Current consumption E-bustyp. 260 mA
Special featuresDeviceNet scanner
Protection degreeIP20
MaterialPolycarbonate
Ambient temperature0 to 55°C
CertificateCE, cULus
StandardII 3G KEMA 10ATEX0075X Ex nA I T4
Design formcompact terminal housing with signal LEDs
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side-by-Side Mountingdouble slot and key connection
Markinglabeling of the BZxxxx series

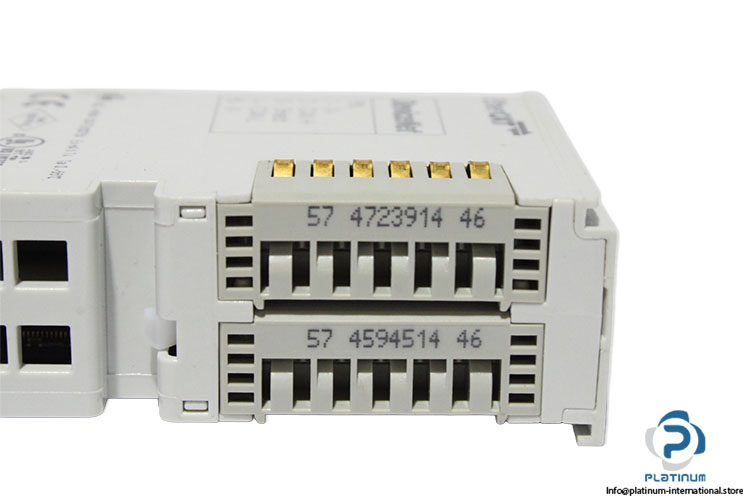

Terminal No.57 4723914 46 / 57 4594514 46
Dimensions24 x 100 x 52 mm
ConditionNew
Stock KeyJO-004
SKU1097593
Weight0,07
