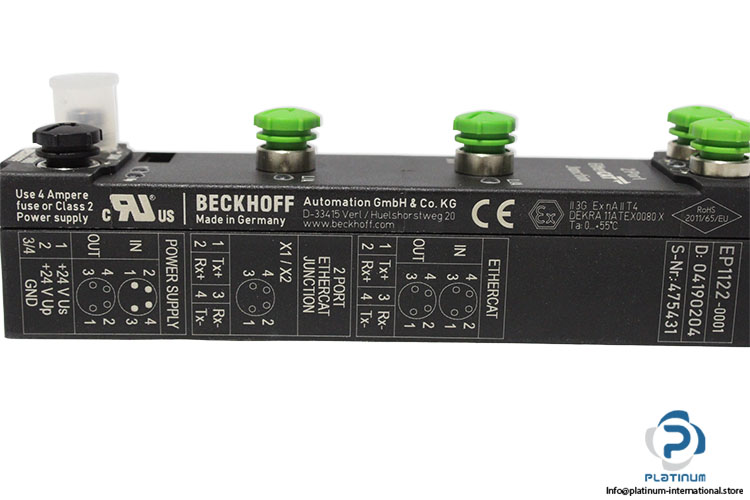

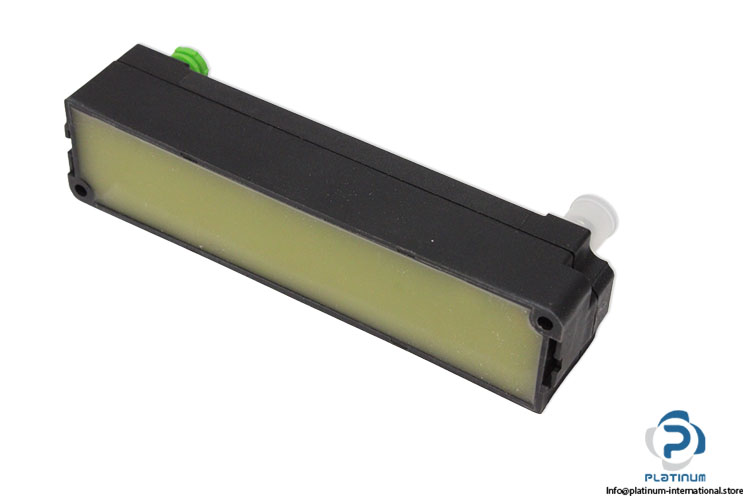

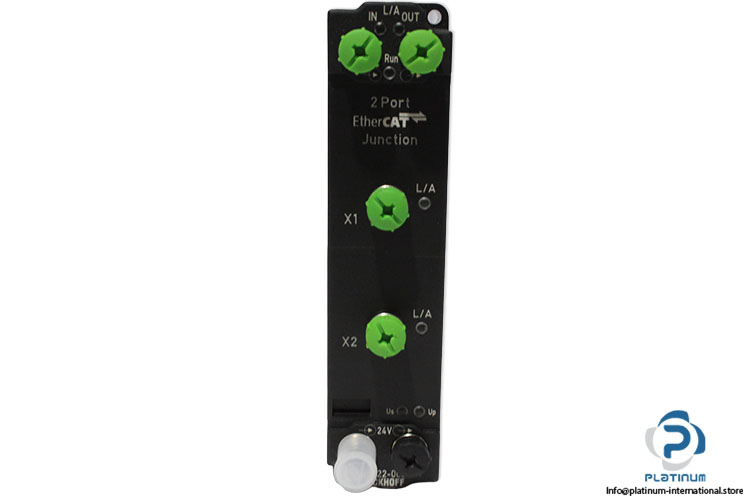

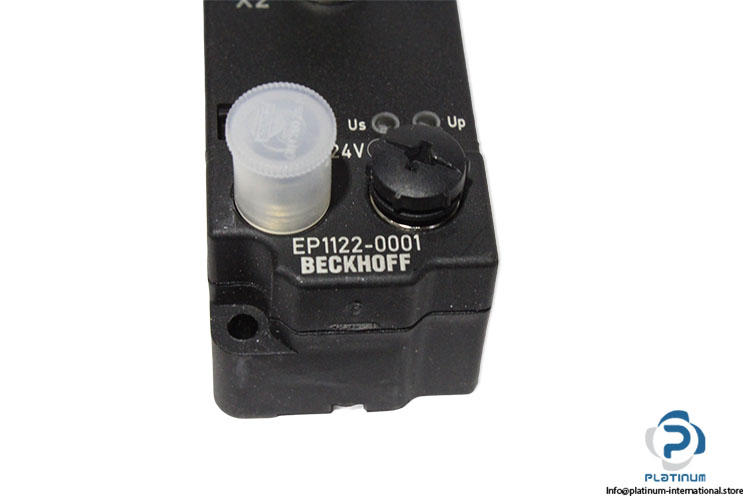

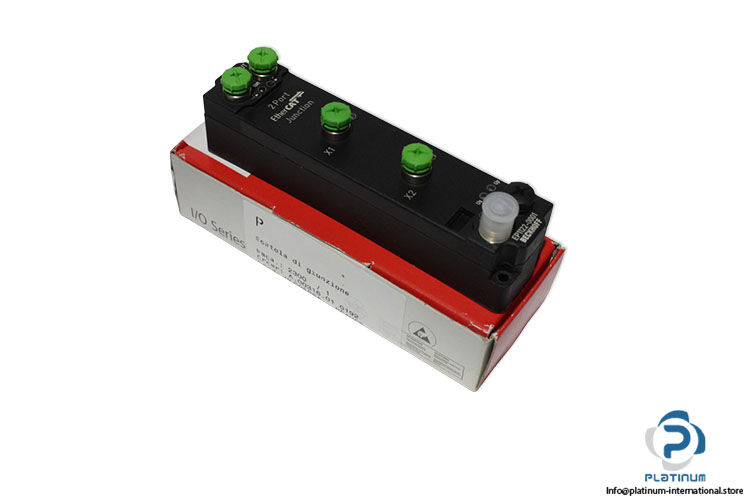

Beckhoff EP1122-0001 Ethercat BOX
جديد
متوفر3 وحداتجاهز للشحن
EtherCAT Box BECKHOFF EP1122-0001 EtherCAT Box designed for coupling EtherCAT junctions and ensuring reliable 100 Mbit/s communication in industrial automation applications. Featuring IP65/66/67 protection, 24 V DC operation, and approvals including CE, CCC, ATEX, and IECEx.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of ports | 2 |
| Task within EtherCAT system | coupling of EtherCAT junctions |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Data transfer medium | EtherCAT cable |
| Distance between stations | 100 m (100BASE-TX) |
| Data transfer rates | 100 Mbit/s |
| Operating temperature | -25…+60°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, CCC, ATEX, IECEx |
| Ex marking | ATEX/II 3 G Ex ec IIC T4 Gc/II 3 D Ex tc IIIC T135 °C Dc |
| Housing data | 8 x M8, 4 x M12 |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099668 |
| Weight | 0,19 |
