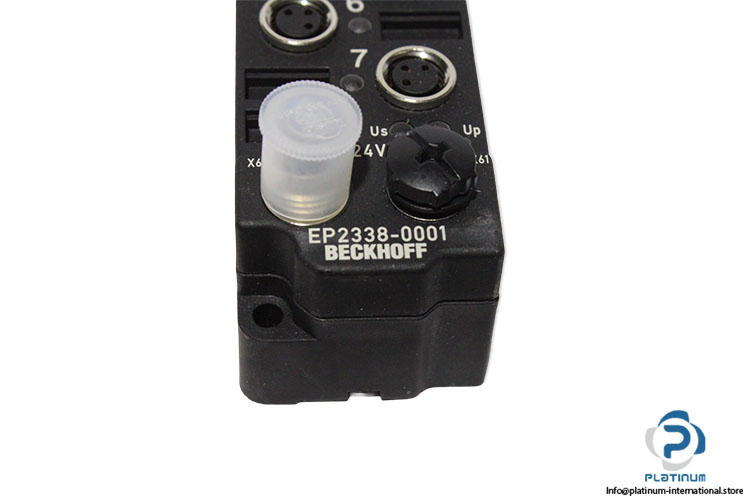

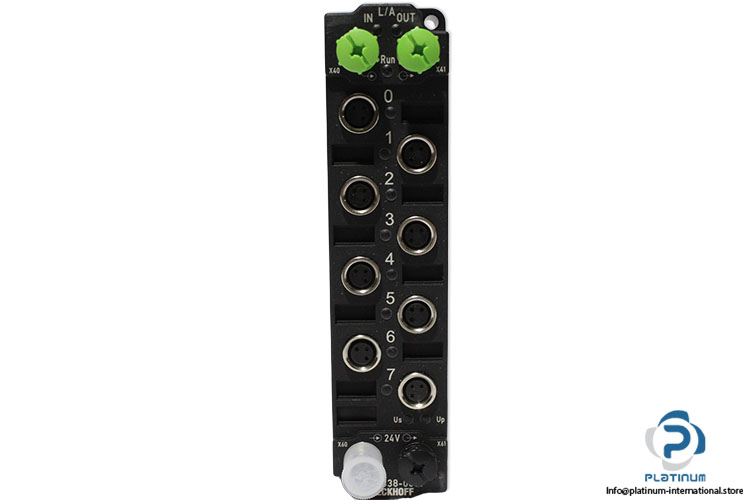

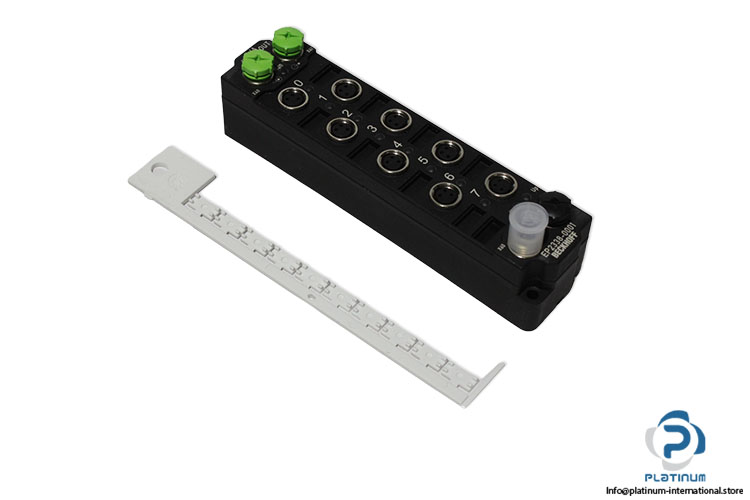

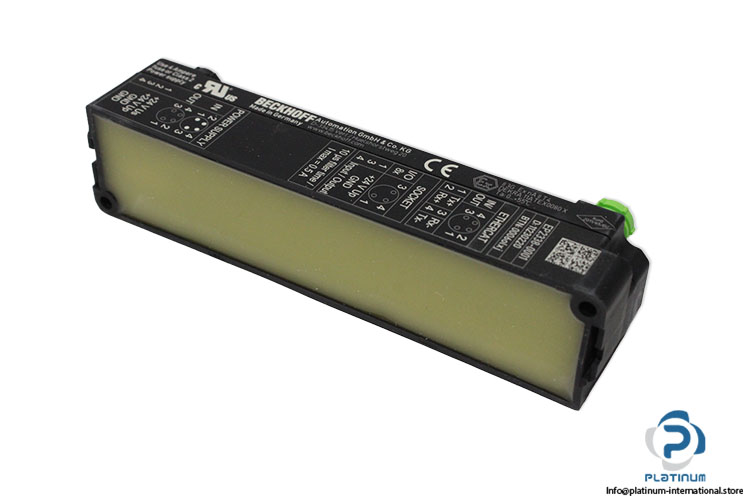

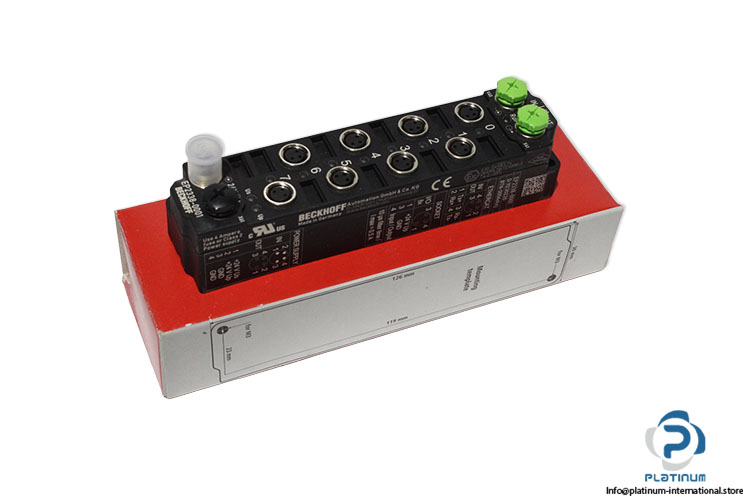

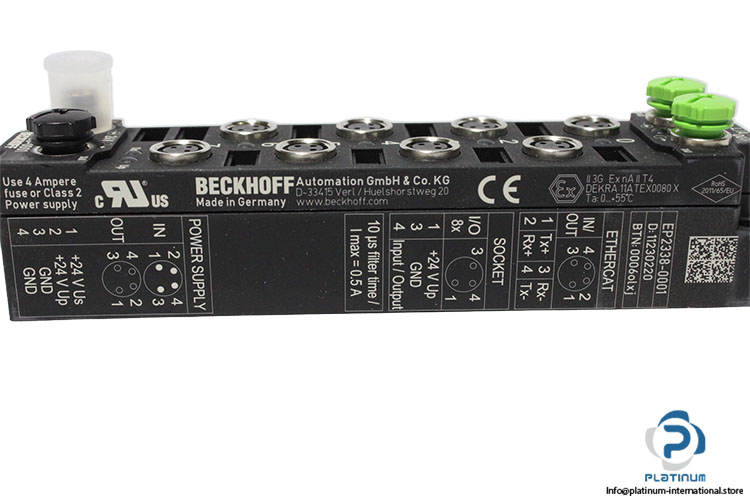

Beckhoff EP2338-0001 Ethercat BOX
جديد
متوفر292 وحداتجاهز للشحن
EtherCAT Box BECKHOFF EP2338-0001 EtherCAT Box with 8 digital input/output channels, 24 V DC operation, EtherCAT communication, and IP65/IP66/IP67 protection for industrial automation applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Ref no | 11230220 |
| BTN | 0006olxj |
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Specification | EN 61131-2, type 1/3 |
| Number of channels | 8 digital inputs or outputs |
| Input/output connections | M8 x 1, 3-pin, a-coded |
| Input filter | 10 µs |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 11…30 V, 6 mA input current (EN 61131-2, type 3) |
| Sensor supply | from load supply voltage, max. 0.5 A, short-circuit proof in total |
| Load type | ohmic, inductive, lamp load |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Max. output current | 0.5 A per channel, individually short-circuit proof |
| Switching times typ. TON | 50 µs, typ. TOFF: 300 µs |
| Short-circuit current | typ. 1.5 A |
| Auxiliary power current | typ. 20 mA + load |
| Current consumption from US | 120 mA |
| Power supply connection | feed, 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Special features | ideal for high number of channels |
| Operating temperature | -25…+60°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 10996701 |
| Weight | 0,19 |
