B&R X67SC4122.L12 SECURITY MODULE

متاح عند الطلب

Security Module B&R Automation X67SC4122L12 X67 security module with 8 safe digital inputs, 4 safe digital outputs, X2X Link and IP67 protection.

الشركة المصنّعة
B&R Automation
SKU
1064153
الفئة
Safety Devices
الحالة
جديد
مشاركة
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

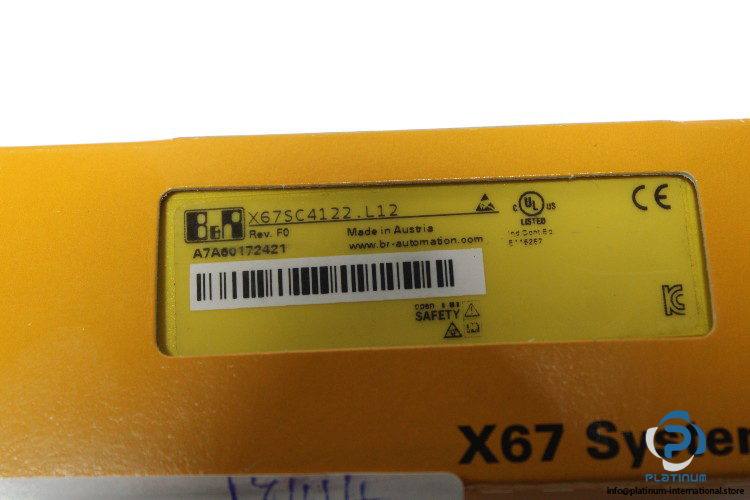

Part No.A7A60172421
SeriesX67
Rev.F0
Nominal Voltage24 V DC
Voltage Range18 to 30 V DC
No. of Digital Inputs (DI)8 safe digital inputs, sink circuit, 4.6 mA max.
No. of Digital Outputs (DO)4 safe digital outputs, type B with 2 A, source circuit
No. of Pulse Outputs8 pulse outputs Push-Pull
Link AddressX2X
Max. I/O Cycle Time1 ms

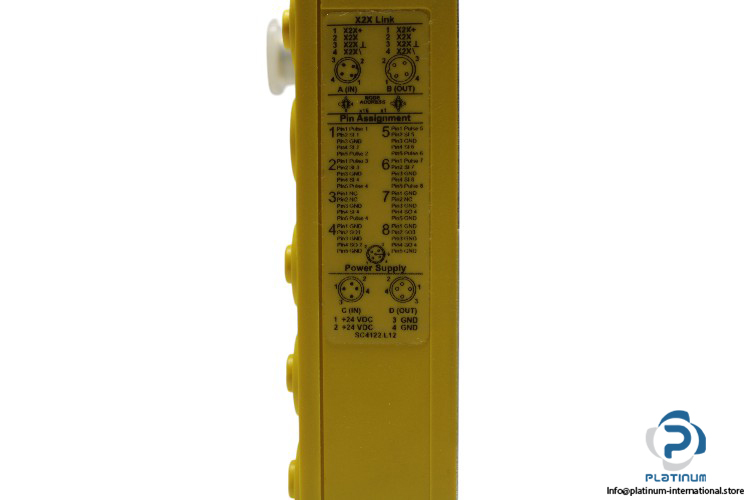

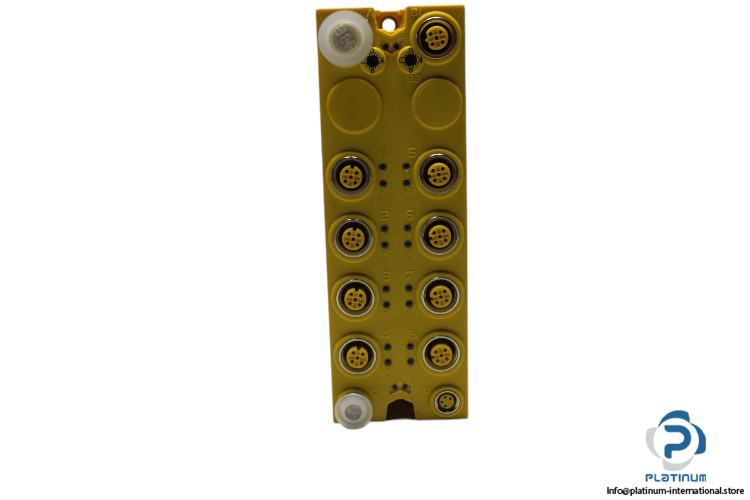

Connection TypeX2X Link: M12, B-coded, Inputs/Outputs: M12, A-coded, I/O, power supply: M8, 4-pin
ProtectionReverse polarity protection
Degree of ProtectionIP67
Operation Temperature-40 to 60°C
Dimensions53 x 155 x 42 mm
Explosion proofEX
ConditionNew
SKU1064153
Weight0,37
