Dropsa 1523332 Flow Master

Dropsa Flow Master

The Dropsa Flow Master is an advanced lubrication system designed for high-performance fluid delivery in industrial applications. With a 12V DC power supply, this unit offers a reduction ratio of 392:1, delivering a maximum torque of 3 Kg.cm. It operates efficiently even with high fluid viscosities, ensuring reliable performance across a wide temperature range.

Manufacturer: DROPSA

Type: Flow Master

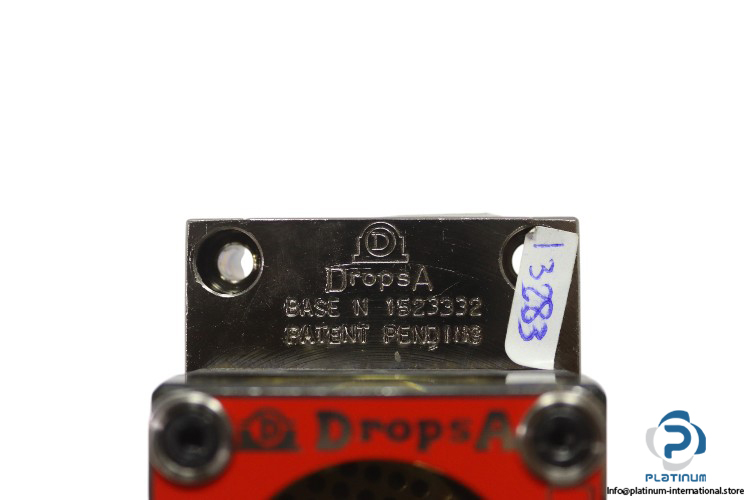

Code No: 1523332

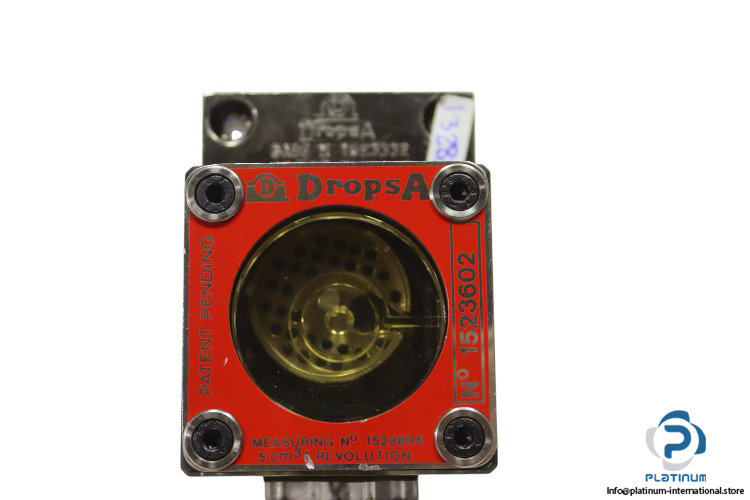

Part No: 1523602 / 1523605

Technical Data:

• Power Supply: 12 V DC
• Reduction Ratio: 392:1
• Maximum Torque: 3 Kg.cm
• Revolutions Per Minute Without Load: 6 rpm
• Revolutions Per Minute With Maximum Torque: 5 rpm
• Maximum Fluid Viscosity: 1000 cSt (4628 SUS) at operative temperature
• Operative Temperature Range: -20°C to +60°C
• Minimum Pressure: 6 bar (88.2 psi) in continuous working
• Maximum Pressure: 20 bar (294 psi)
• Thread of Base (Inlet/Outlet): G1/2 BSP (inlet) “ G3/8 BSP (outlet)
• Gasket: O Ring in Viton
• Material: Aluminum
