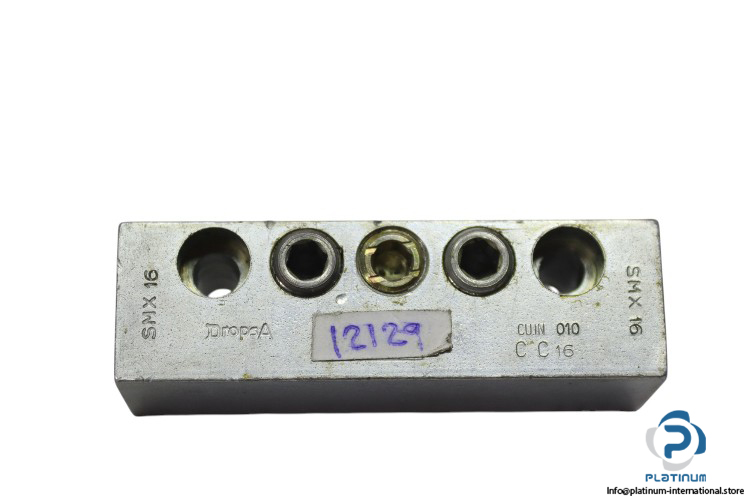

Dropsa SMX 16 Modular Progressive Distributor
Dropsa SMX16 Progressive Distributor “ Modular lubrication distributor for oil and grease, nickel-plated, G1/8 connection, up to 7,200 psi. Includes full monitoring controls and thread flexibility.
Dropsa SMX16 Modular Progressive Distributor
The Dropsa SMX16 is a high-pressure modular progressive distributor designed for precise and efficient distribution of grease and oil in lubrication systems. Built with advanced features and durable materials, it ensures reliable performance under demanding industrial conditions.
Manufacturer: Dropsa
Type: Modular Progressive Distributor
Model: SMX16
Key Features:
The two outputs are combined by replacing the adapter
Air bleed valves built into both sides of the base
SAE Metric - BSP - NPTF threads available
Full monitoring controls
The bases are always supplied complete with standard 'O' rings
| Fluid | Grease and Oil |
| Connection | G1/8 |
| Material | Nickel-Plated |
| Operates at | SMX 7,200 psi (500 bar), SMO 5,800 psi (400 bar) |
