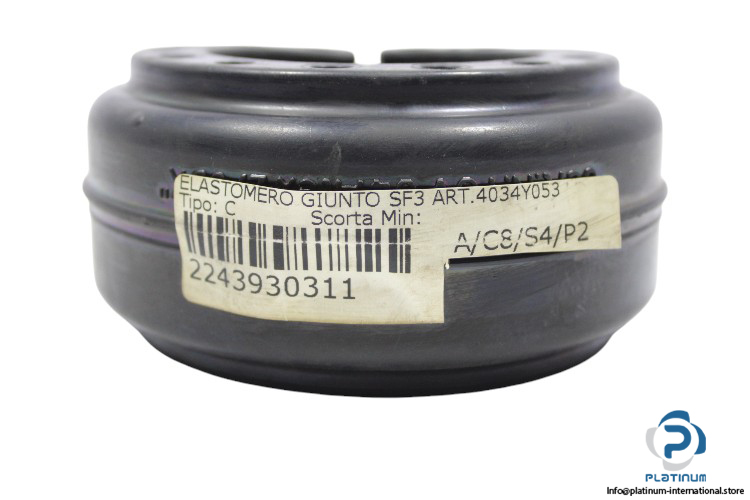

Elastomero SF3 Coupling

ELASTOMERO COUPLING

The ELASTOMERO Coupling (Model: SF3, Art No: 4034Y053, Ref No.: 2243930311, Ref No2: A/C8/S4/P2) is a high-performance coupling designed for efficient power transmission and vibration damping in industrial applications. With 14 pins, an outer diameter of 72 mm, and a nominal torque of 41.5 Nm, this coupling ensures reliable performance at high speeds (up to 3600 rpm) while providing superior torsional stiffness.

Manufacturer: ELASTOMERO

Type: Coupling

Model: SF3

Art No: 4034Y053

Ref No: 2243930311

Ref No2: A/C8/S4/P2

Technical Specifications

• Type: C
• Number of Pins: 14
• Outer Diameter: 72 mm
• Moment of Inertia: 0.0017 kgm²
• Nominal Torque: 41.5 Nm
• Maximum Speed: 3600 rpm
• Static Torsional Stiffness: 3.44 Nm/°
