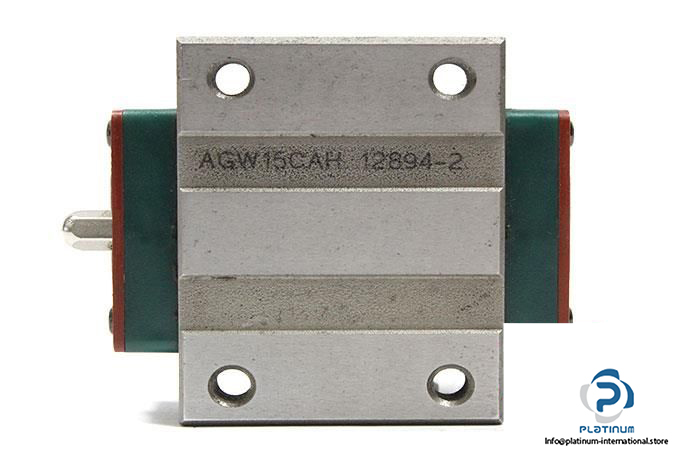

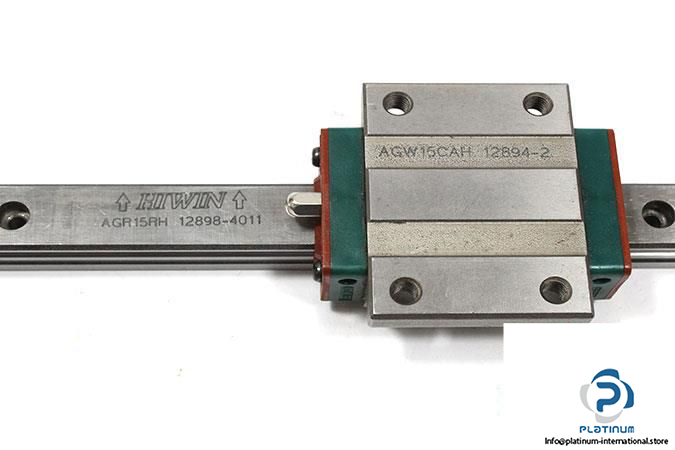

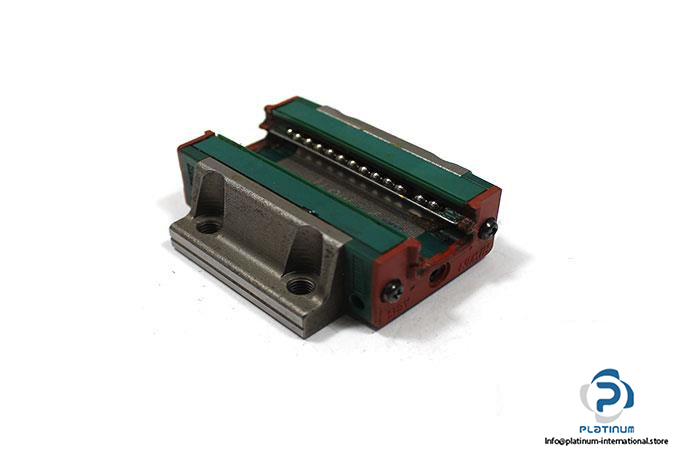

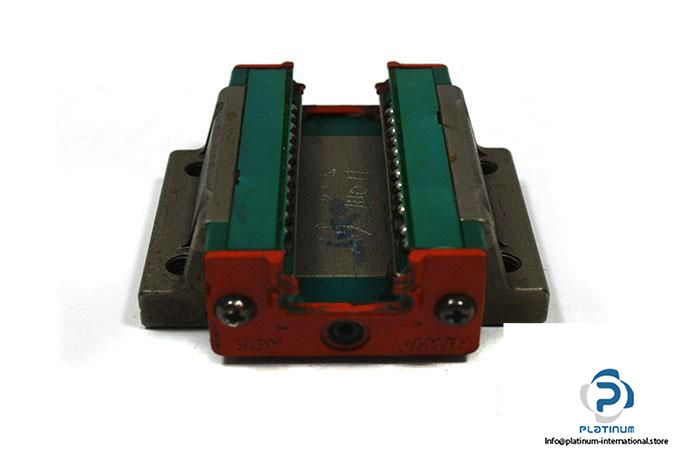

Hiwin AGW15CA Linear Guideway Block
HIWIN AGW 15CA LINEAR GUIDEWAY BLOCK
Hiwin™s AGW 15CA linear guideway block is engineered for high-load precision motion systems. Its compact flange design, top-mount configuration, and high dynamic/static load capacities make it suitable for demanding industrial applications.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: AGW 15CA
Size: 15 mm
| Block Height | 19 mm |
| System Height | 24 mm |
| Block Width (W) | 52 mm |
| Block Length (L) | 56.9 mm |
| Thread Size | M3 x16 |
| Rail Width | 15 mm |
| Rail Height | 13.5 mm |
| Distances Between Holes | 41 mm, 26 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 640 kgf |
| Basic Static Load Rating | 1010 kgf |
| Precision Code | C |
