Hiwin HGW45CC Linear Guideway Block
جديد
متوفر27 وحداتجاهز للشحن
244,01$
كتلة دليل خطي ثقيلة من Hiwin، بحجم 45 مم، مع تركيب علوي أو سفلي. توفر دعم حركة عالي التحميل موثوق مع تصنيفات تحميل ديناميكي 103.8 kN وحمل ثابت 146.71 kN.
103.81806B6-40A0045BlockBottomFlangeGuideGuidewayHeavyHGW45CCHiwinkNLinearLoadmmMNRMotionmountrailTop
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

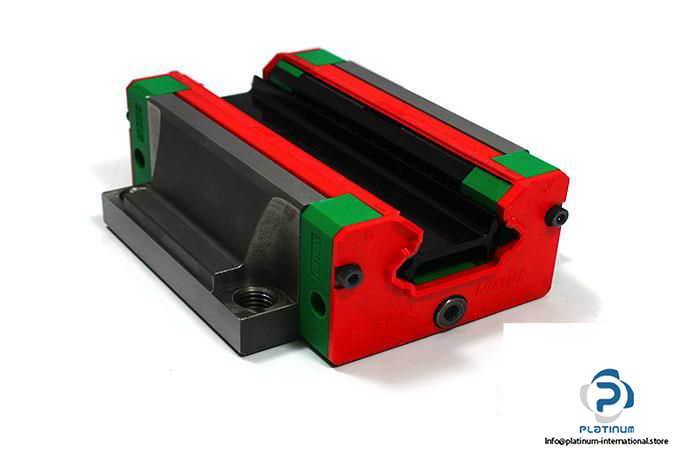

HIWIN HGW45CC LINEAR GUIDEWAY BLOCK
This heavy-duty linear guideway block by Hiwin is built for precise motion control under high loads. Engineered for strength and smooth linear travel, it supports both top and bottom mounting and is ideal for demanding industrial automation applications.
Manufacturer: Hiwin
Type: Linear Guideway Block

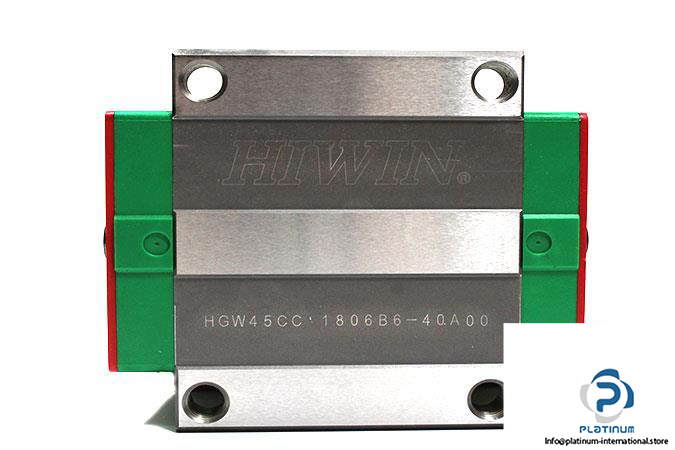

MNR: HGW45CC 1806B6-40A00
| Size | 45 mm |
| Block Height | 50.5 mm |
| System Height | 60 mm |
| Block Width (W) | 120 mm |
| Block Length (L) | 139.4 mm |
| Thread Size | M12 x 35 |
| Distances Between Holes | 100 mm, 80 mm |
| Rail Width | 45 mm |
| Rail Height | 38 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | Top or Bottom |
| Basic Dynamic Load Rating | 103.8 kN |
| Basic Static Load Rating | 146.71 kN |
