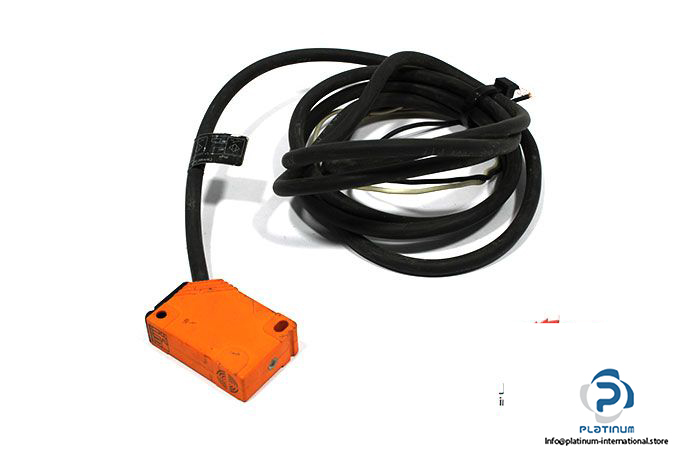

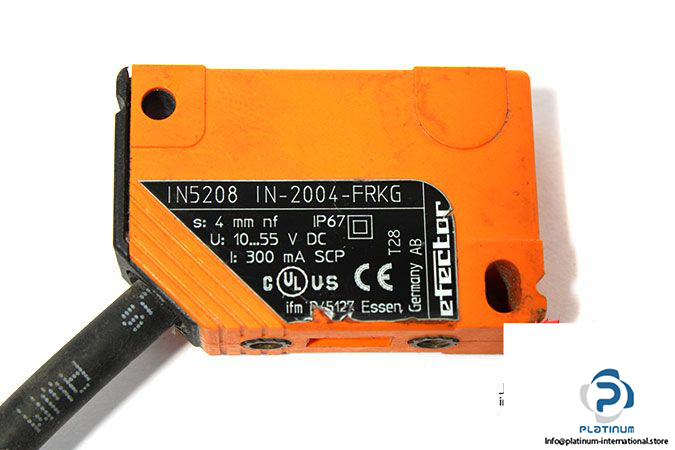

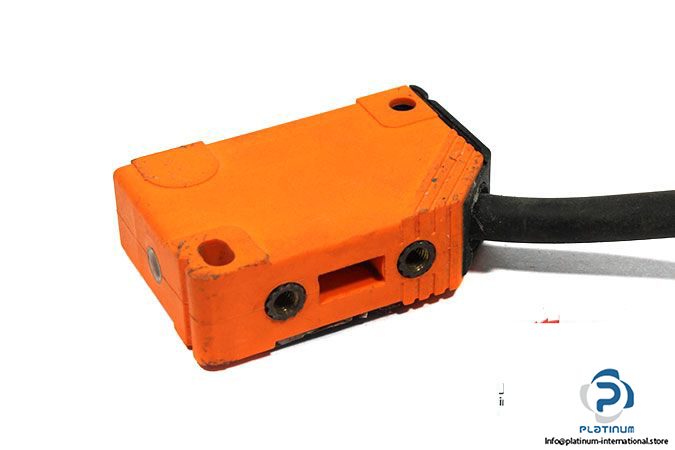

IFM IN5208 Inductive Sensor
مستعمل
متوفر8 وحداتجاهز للشحن
40,00$
Inductive Sensor IFM IN5208 inductive sensor with 4 mm sensing range, PNP/NPN output, IP67 protection, and reliable non-contact detection for industrial automation applications.
جديد
متوفر
هذا المنتج متوفر أيضًا بحالة جديدة
عرض النسخة الجديدة ←
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | IN5208 |
| MRN | IN-2004-FRKG |
| Sensing Range | 4 mm |
| Operating Distance | 0 … 3.25 mm |
| Operating Voltage | 10 … 55 V DC |
| Switching Frequency DC | 1200 Hz |
| Switching Output Current | 300 mA DC |
| Minimum Load Current | 4 mA |
| Max. Voltage Drop | 4.6 V |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open and Normally Closed, (selectable) |
| Protection Class | II |
| Enclosure Rating | IP67 |
| Housing | Rectangular |
| Electrical Connection | Cable: 2 m, 2 Wire |
| Ambient Operating Temperature | -25 … 80 °C |
| Dimensions | 40 x 12 x 26 mm |
| Material | PBT |
| Mounting | Non-Flush Mountable |
| Condition | Used |
| SKU | 985345 |
| Weight | 0,1 |
