Pizzato MS15 Microswitch
مستعمل
متوفر1 وحدةجاهز للشحن
MICROSWITCH
The Pizzato MS 15 microswitch offers reliable snap-action switching with high current capacity and flexible terminal protection. Ideal for control systems requiring precise response and durability.1516A1NC1NO250V300VACActionCompactControldcDirectIndustrialIP00IP20IP40MicroswitchmsPizzatoPlungerSnapSolderSwitchterminal
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

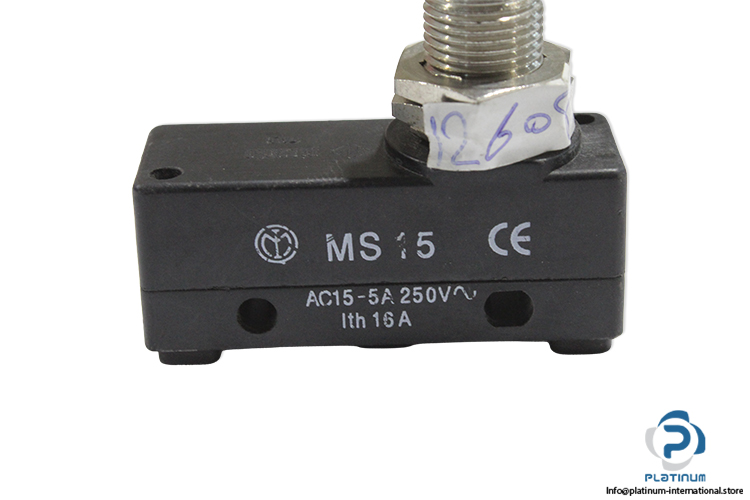

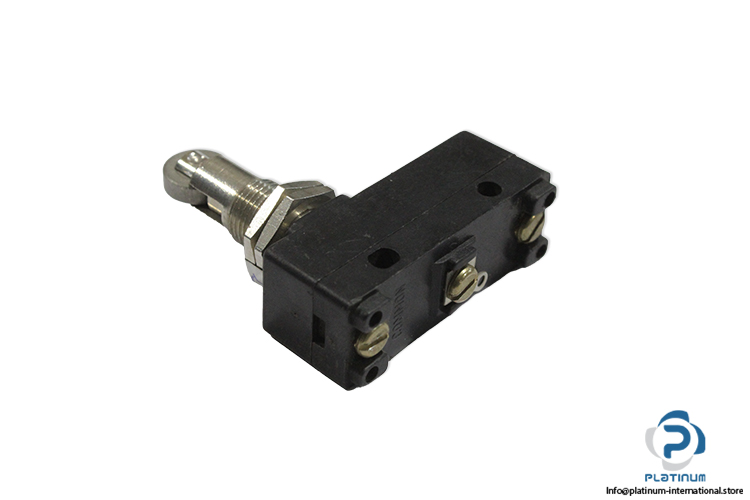

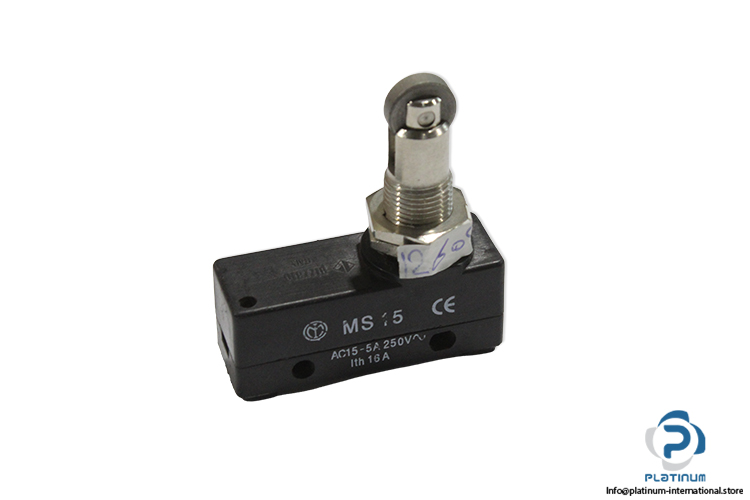

PIZZATO MS 15 MICROSWITCH
The Pizzato MS 15 microswitch is a compact, durable solution designed for reliable control in industrial environments. With high electrical ratings and multiple protection levels, it's engineered to meet demanding application requirements. Manufacturer: Pizzato
Type: Microswitch
Model: MS 15
| Thermal Current (Ith) | 16 A |
| Rated Insulation Voltage (Ui) | 250 V AC, 300 V DC |
| Contact Block | 1NO+1NC, snap action, change-over |
| Contact Rating AC-15 | 250 V AC, 5 A |
| Type of Terminal | Solder terminals |
| Actuation Type | Plunger Direct |
| Protection Degree | IP00 (without terminal cover), IP20 (with terminal covers VF C01, VF C03), IP40 (with terminal cover VF C02) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Pollution Degree | 3 |
| Ambient Temperature | -25 / +85°C |
| Dimensions | 49.2 x 57 x M12 mm |
