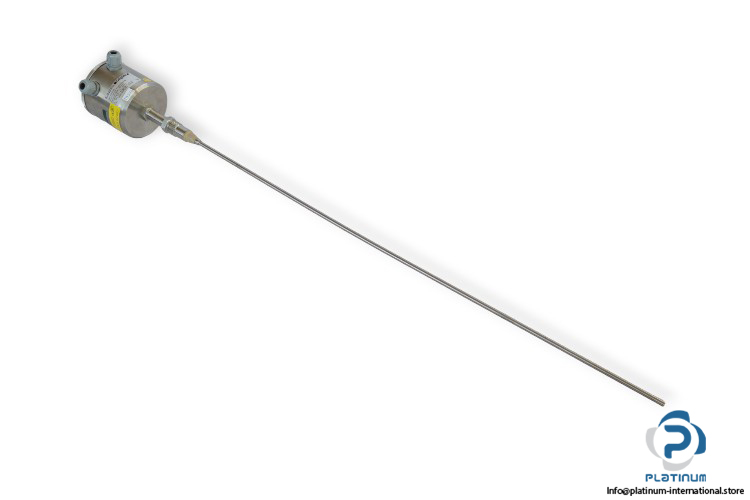

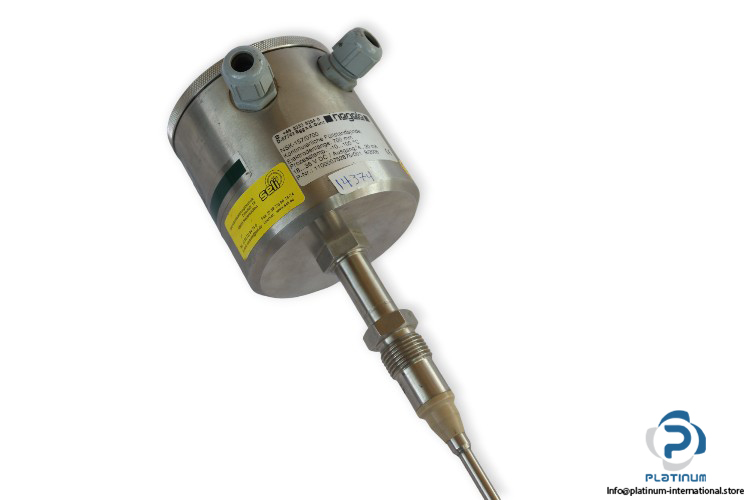

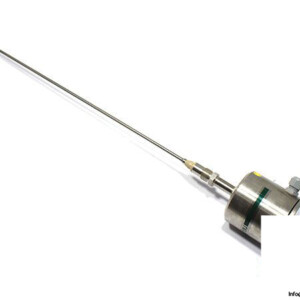

Negele NSK-157/0700 Continuous Level Sensor

Anderson “ Negele NSK-157/0700 Continuous Level Sensor

The Anderson “ Negele NSK-157/0700 is a high-precision continuous level sensor designed for monitoring liquid levels in metallic vessels up to 3 meters in height. It offers fast response time, high accuracy, and robust construction for industrial applications.

Manufacturer: Anderson “ Negele

Type: Continuous Level Sensor

Model: NSK-157/0700

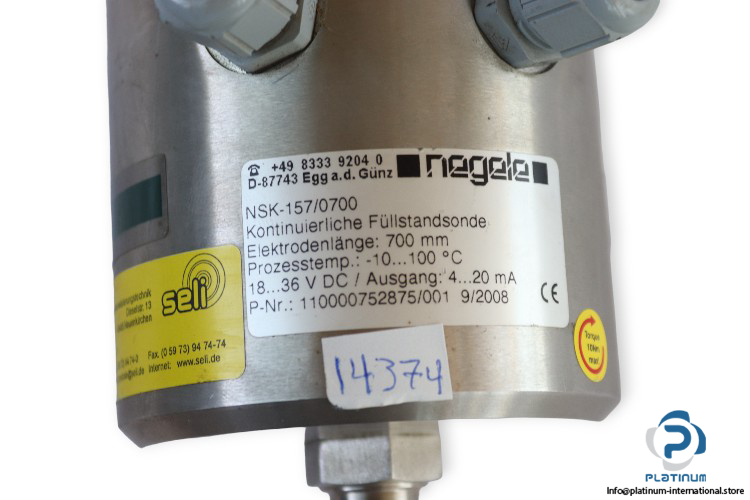

Part No.: 110000752875/001 9/2008

Technical Data:

• Application: For metallic vessels up to 3 m in height
• Process Pressure: Max. 10 bar
• Ambient Temperature: 0 / 50 °C
• Process Temperature: -10 / 100 °C
• Resolution: 1.0% of upper range value (rod length)
• Response Time: 50 ms

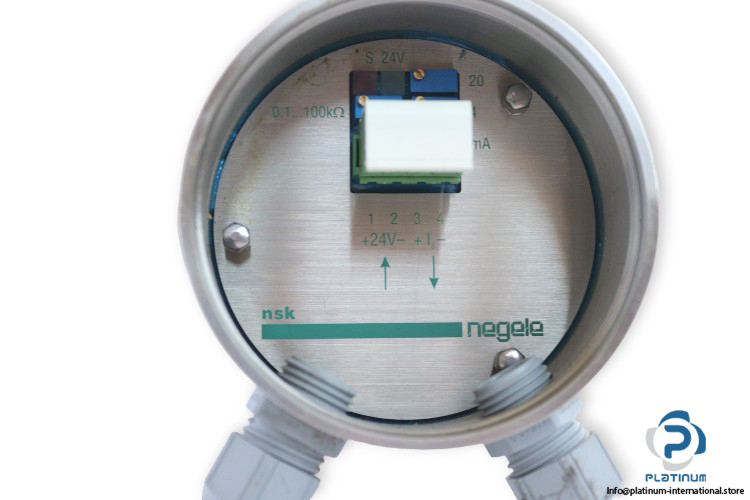

• Power Supply: 18 to 36 V DC
• Output Signal: Analog 4 to 20 mA, 2-wire loop
• Output Resistance: Max. 500 Ohm

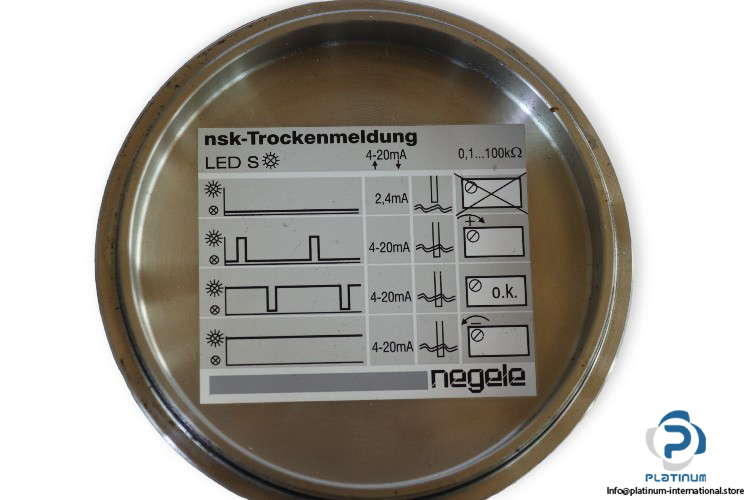

• Dry Alarm: 2.4 mA
• Electrode Length: 700 mm
• Sensor Diameter: 6 mm
• Material – Sensor: Stainless Steel
• Material – Insulator: PEEK
