Newport 202A-P,C1 Digit Process Meter
عداد عملية رقمي يوفر عيار 4-20 مللي أمبير مع نطاقات إدخال 4-20 مللي أمبير، 1-5 فولت، و0-10 فولت. مصنف لـ 230 فولت تيار متردد، يعمل في درجات حرارة من 0 إلى 60 درجة مئوية ويتطلب مصدر طاقة بقوة 4 واط لقياس العملية بشكل موثوق.
Newport 202A-P,C1 Digit Process Meter

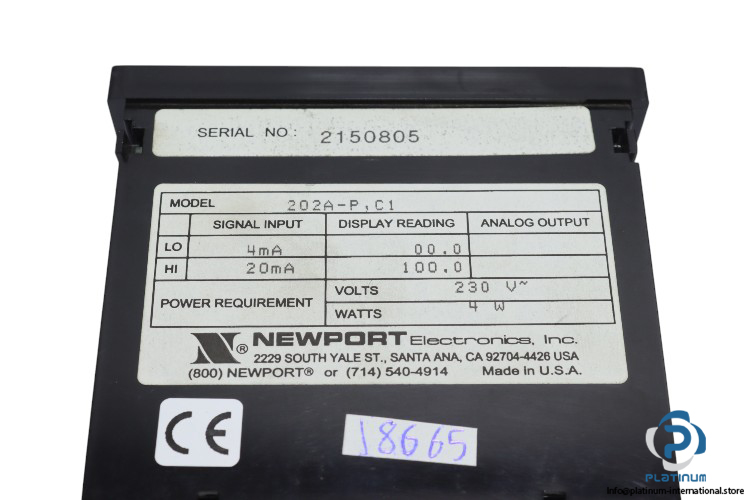

The Newport 202A-P,C1 Digit Process Meter is a versatile and reliable process measurement solution designed to display accurate readings for various industrial applications. This 3 1/2 digit meter provides default calibration of 4-20 mA, with a measurement range of 00.0 to 100.0. It supports multiple input ranges, including 4-20 mA, 1-5 V, and 0-10 V, making it suitable for a wide range of control and monitoring systems. With a rated voltage of 230 V AC and a frequency range of 50/60 Hz, this meter is capable of providing precise data for industrial environments. It requires a power supply of 4W and operates in a temperature range of 0 to 60°C.
Manufacturer: Newport
Type: Digit Process Meter
Model: 202A-P,C1
This process meter is ideal for use in various industrial and automation systems, providing reliable and accurate process readings across different input ranges and environmental conditions.
| Description | 3 1/2 digit process meter (default calibration: 4-20 mA = 00.0 - 100.0) |
| Rated Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Input Range | 4-20 mA, 1-5 V, 0-10 V |
| Power Requirement | 4W |
| Operating Temperature | 0 to 60°C |
