Omron E6C2-CWZ5B Incremental Encoder
مستعمل
متوفر1 وحدةجاهز للشحن
مشفر تزايدي Omron E6C2-CWZ5B هو مشفر عالي الدقة ومتعدد التحمل يوفر 500 PPR، إدخال 12“24 VDC، ومخرج PNP بتوصيل مفتوح. مصمم لأنظمة الأتمتة بسرعات تصل إلى 6000 rpm.
12“24500AutomationE6C2-CWZ5BEncoderHigh-SpeedIncrementalIndustrialOmronOutputPNPPPRRotarySensorshaftVDC
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

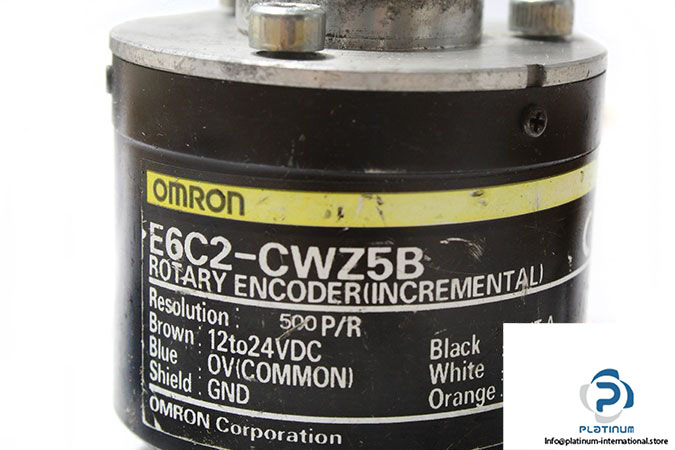

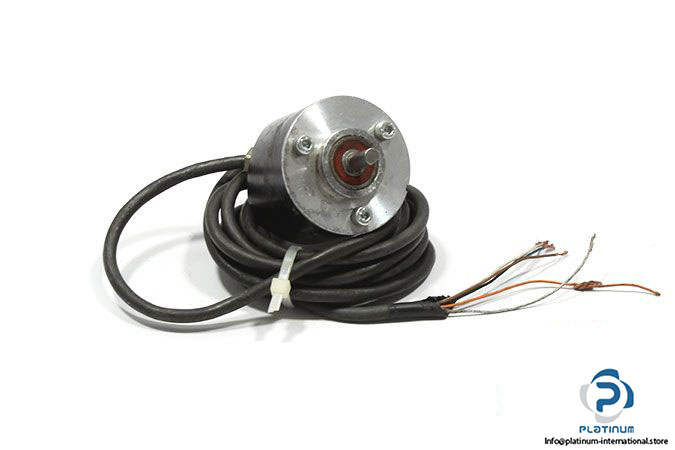

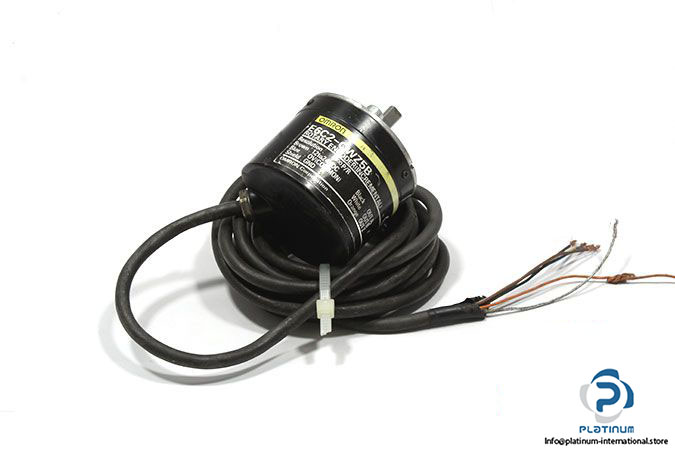

OMRON E6C2-CWZ5B INCREMENTAL ENCODER
The Omron E6C2-CWZ5B is a high-precision incremental encoder built for reliable feedback control in automation systems. With 500 pulses per revolution and durable construction, it's ideal for robust industrial use.
Manufacturer: Omron
Type: Incremental Encoder
Model: E6C2-CWZ5B
Output Capacity:
| Shaft Diameter | 6 mm |
| Power Supply Voltage | 12 / 24 V DC |
| Output Configuration | Open-collector output (PNP) |
| Resolution | 500 PPR |
| Current Consumption | 100 mA max. |
| Applied Voltage | 30 VDC max. |
| Source Current | 35 mA max. |
| Response Frequency | 50 kHz |
| Phase Difference | 90°±45° between A and B (1/4 T ± 1/8 T) |
| Permissible Speed | 6000 rpm |
| Residual Voltage | 0.4 V max. (at source current of 35 mA) |
| Material | Case: Zinc alloy, Main unit: Aluminum, Shaft: SUS420J2 |
