Panasonic ATC22103 Multi-Range Timer

Name: PANASONIC ATC22103 MULTI-RANGE TIMER
SKU: 1084196
Price: 33.33 USD
Availability: InStock

Panasonic-atc22103-multi-range-timer(used)

Panasonic-atc22103-multi-range-timer(used)-1

Panasonic-atc22103-multi-range-timer(used)-2

Panasonic-atc22103-multi-range-timer(used)-3

مستعمل

متوفر1 وحدةجاهز للشحن

33,33$

Multi-Range Timer

The PANASONIC ATC22103 multi-range timer features a 0 to 10 second range, 24 V AC input, LED indicators, and an 8 pin round base, ideal for precise industrial timing control.

الشركة المصنّعة

PANASONIC

SKU

1084196

الفئة

Timers

الحالة

مستعمل

24v AC ATC22103 Automation Base Control Device Indicator Industrial LED Multi Octal Panasonic PM4H-S PM4HS-H-24V Range Series Timer Timing

جديد متاح عند الطلب 59,99$

هذا المنتج متوفر أيضًا بحالة جديدة

عرض النسخة الجديدة ←

مخزون ضخم

شحن عالمي

دعم من خبراء

جودة مضمونة

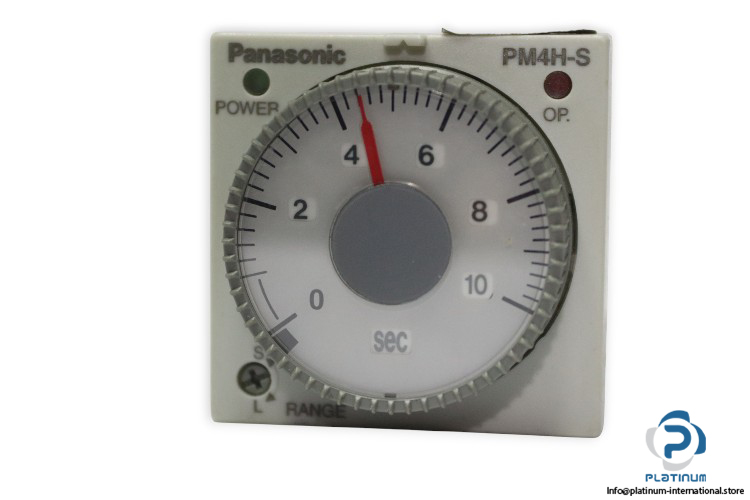

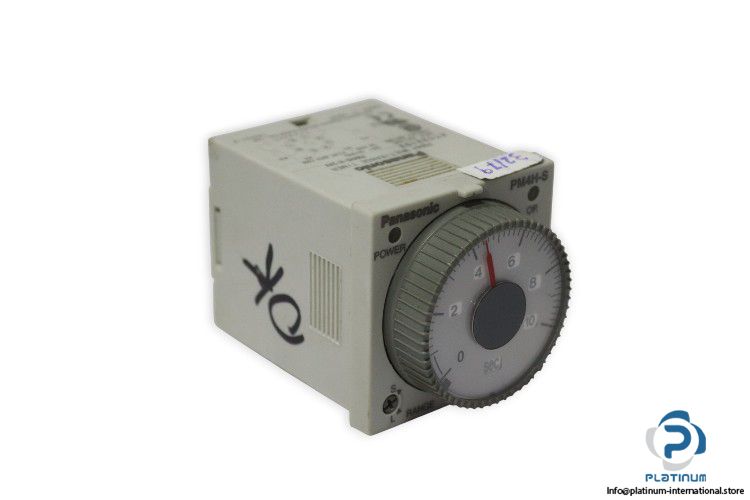

PANASONIC ATC22103 Multi-Range Timer

The PANASONIC ATC22103 Multi-Range Timer is a reliable and compact timing device designed for precise control in industrial automation. With easy setup, LED indication, and an 8-pin base connection, it delivers stable operation for various timing applications.

Manufacturer: PANASONIC

Type: Multi-Range Timer

Model: ATC22103

Product Number: PM4HS-H-24V

Series: PM4H-S

Code: 130527-P

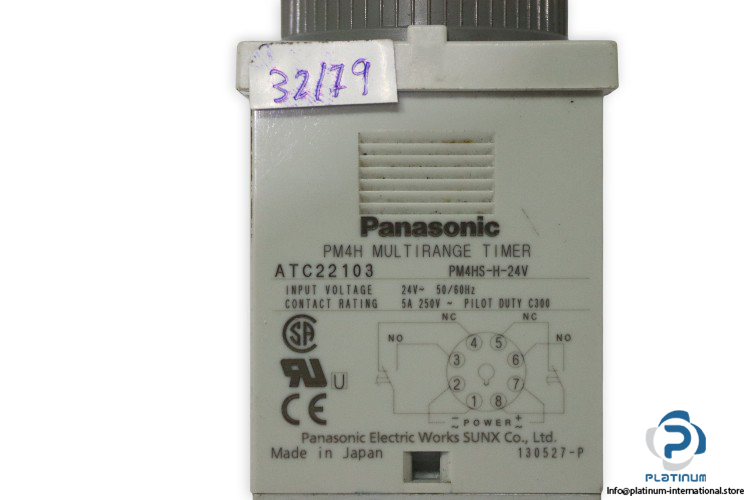

Input Voltage	24 V AC, 50/60 Hz
Output / Contact Rating	5 A 250 V AC
Pilot Duty	C300
Timer Range	0 to 10 seconds

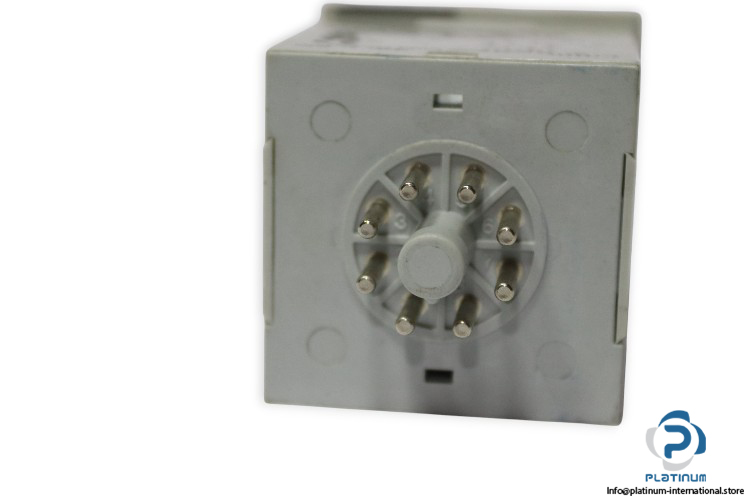

Socket Type	8 pin round base (octal socket)
Indicators	Power LED, Output LED
Terminals Include	NC (normally closed), NO (normally open), COM
