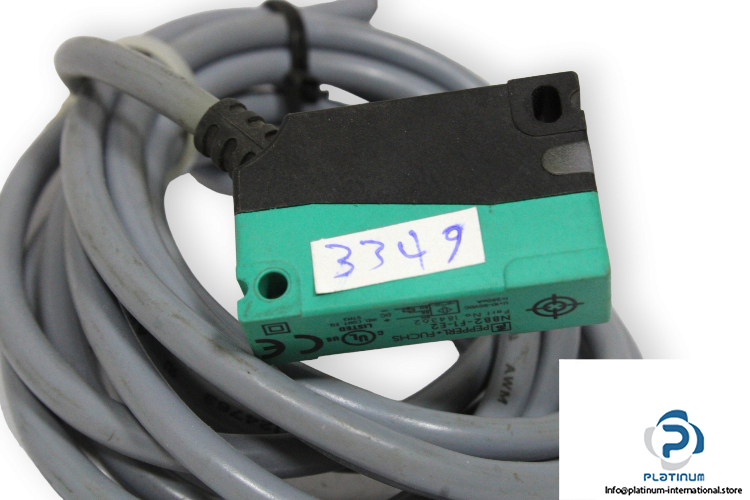

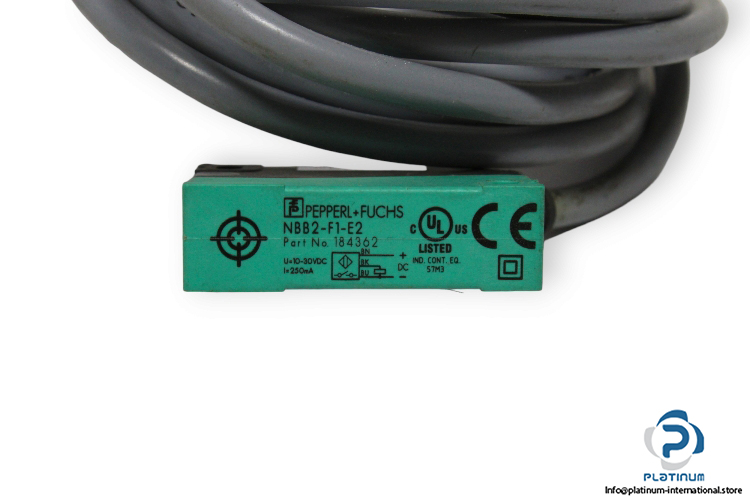

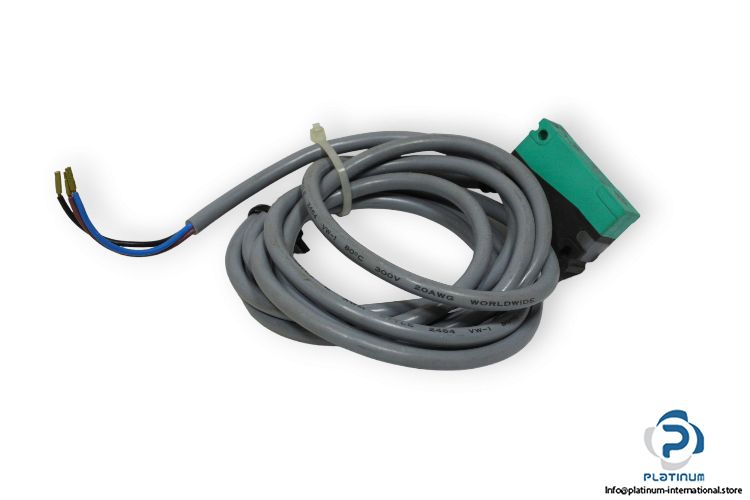

Pepperl+Fuchs NBB2-F1-E2 Inductive Sensor
Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NBB2-F1-E2
Part No: 184362
Switching Function: Normally Open (NO)
Output Type: PNP
Rated Operating Distance: 2 mm
Installation: Flush
Operating voltage: 10 … 30 V DC
Switching frequency: 0 … 1400 Hz
Rated insulation voltage: 60 V
Operating current: 0 … 250 mA
Ambient temperature: -25 … 70 °C
Connection type: cable PVC, 2 m
Housing material: PA
Sensing face: PA
Degree of protection: IP67
Dimension: 26 X 40 X 12 mm
