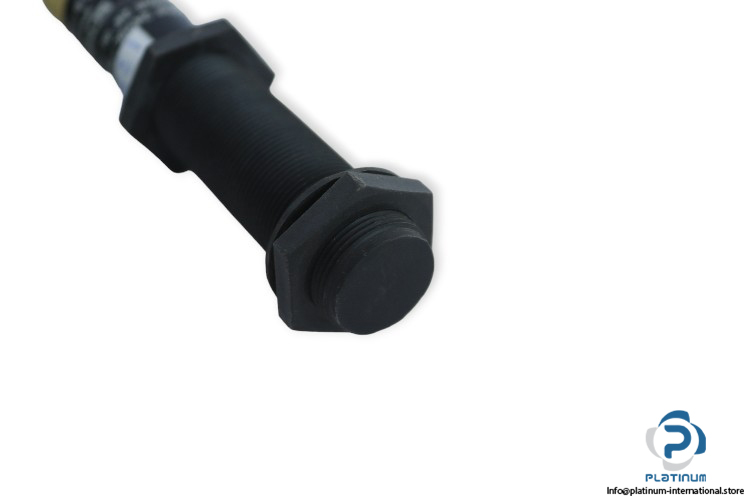

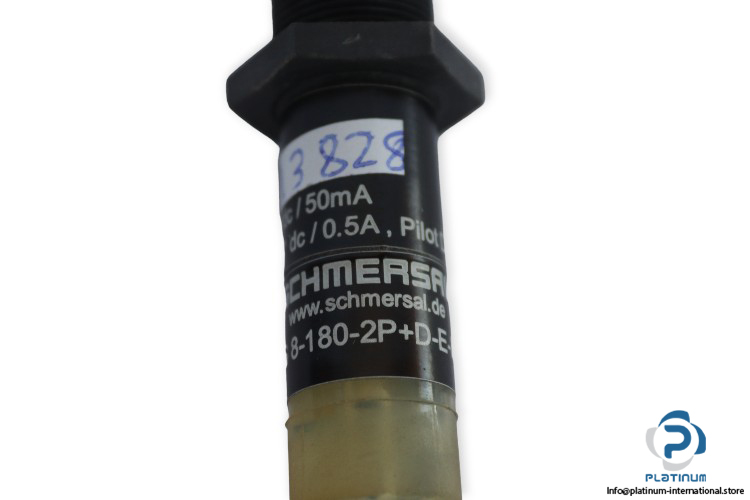

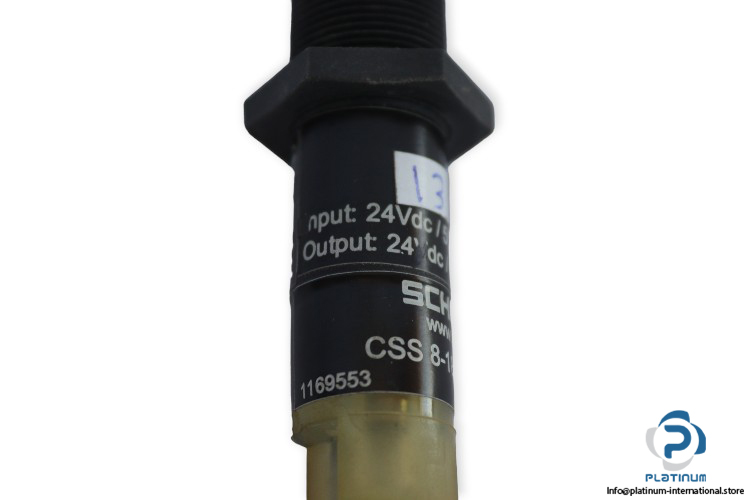

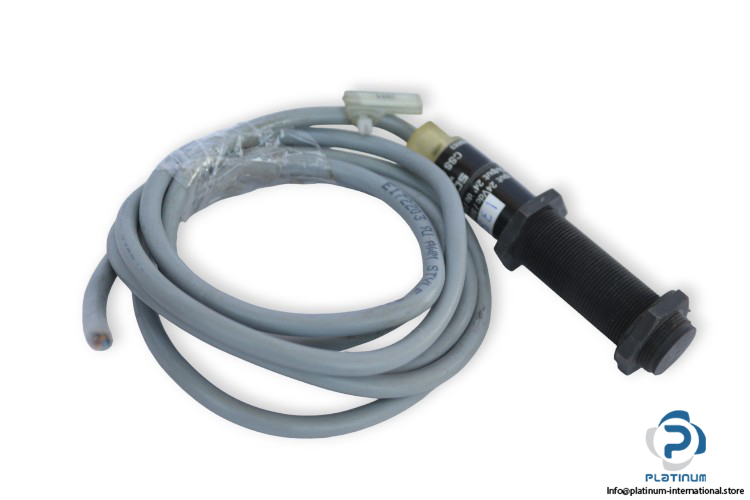

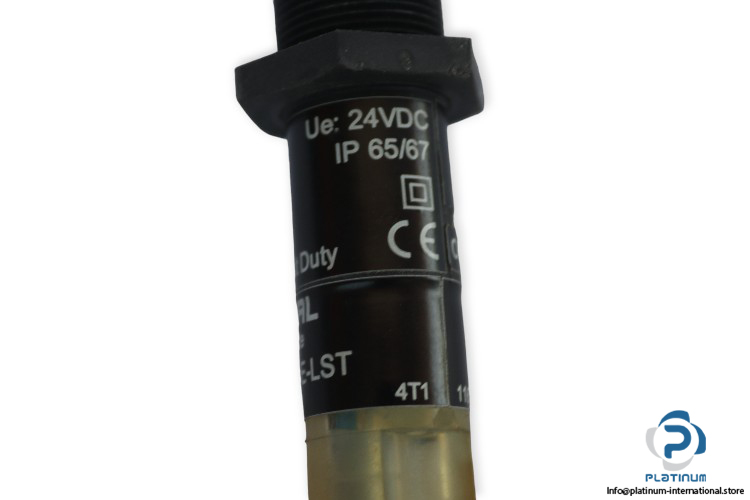

Schmersal CSS 8-180-2P+D-E-LST Safety Sensor

Manufacturer: SCHMERSAL
Type: Safety Sensor
Model: CSS8-180-2P+D-E-LST
Part No.: 1169553

Switch distance Sn: 8 mm
Ensured switch distance ON Sao: 7 mm
Ensured switch distance OFF Sar: 10 mm
Operating Voltage: 24 V DC, 50 mA
Output Voltage: 24 V DC,0.5 A
Electrical Design: PNP
Diameter, Housing length: M18,92 mm
Connector type: Cable with connector, male connector M12, 5-pole
Mounting: Non-flush
Housing Material: Plastic, glass-fibre reinforced thermoplastic
Operating Temperature: -25 … 60°C
Enclosure Rating: IP65/67
