Schneider VW3A4423 EMC Input Filter
فلتر إدخال EMC SCHNEIDER VW3A4423 فلتر إدخال EMC مصنف 25 A لمحركات ثلاثية الطور، مصمم لتقليل التداخلات الراديوية وضمان التوافق مع متطلبات EMC في أنظمة Lexium وAltivar.
SCHNEIDER VW3A4423 EMC Input Filter

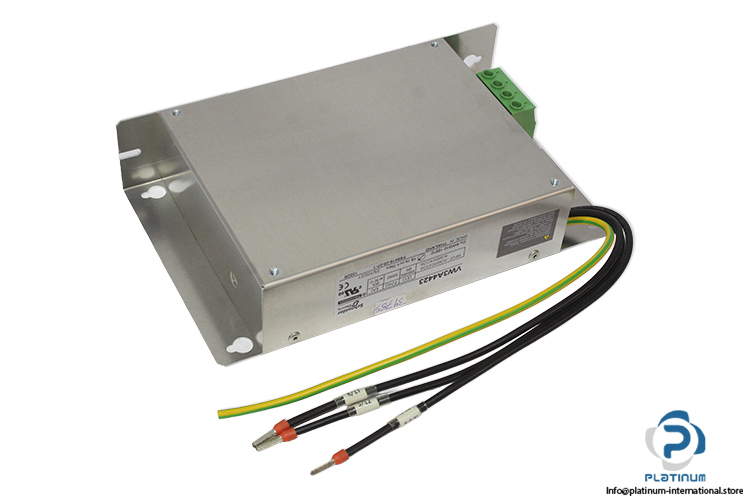

The SCHNEIDER VW3A4423 EMC Input Filter is designed to reduce radio interference and ensure electromagnetic compatibility in variable speed drive systems. It is engineered for three-phase networks and optimized for integration with Schneider Lexium and Altivar drive ranges.
Manufacturer: SCHNEIDER
Type: EMC Input Filter
Model: VW3A4423

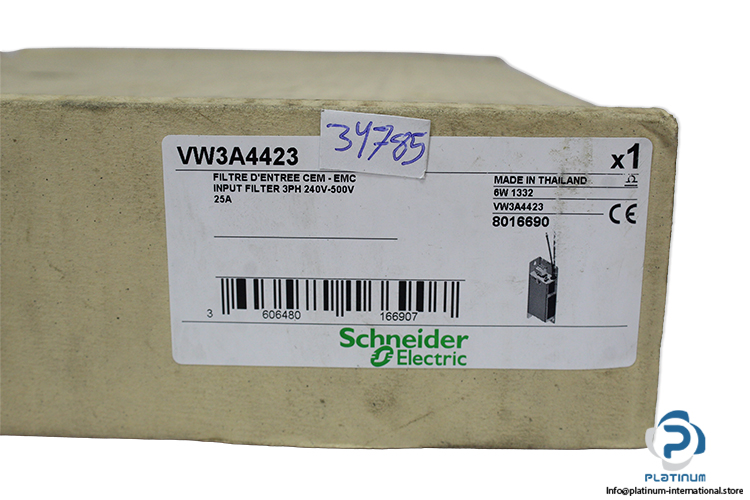

Part No.: 8016690

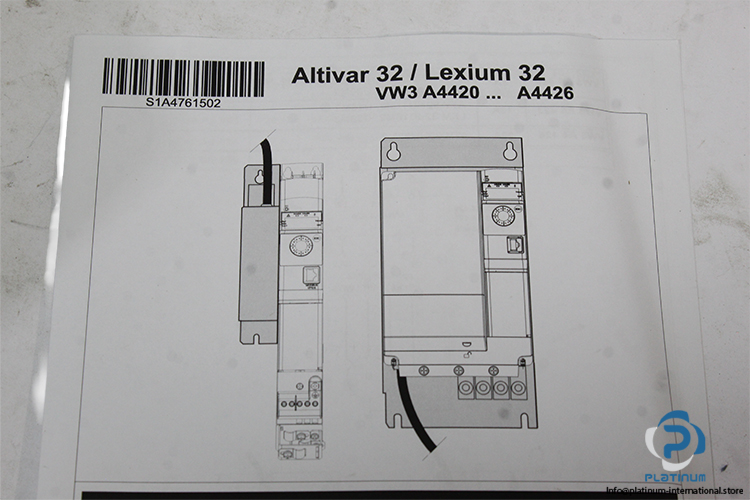

Code: 6W 1332 / VW3 A4420 . A4426

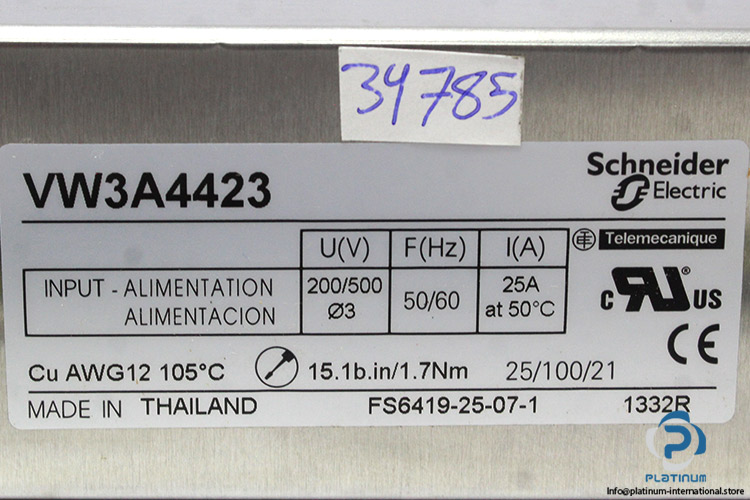

Production Code: FS6419-25-07-1 1332R
S No.: S1A4761502 / 3 606480 166907
Product Compatibility:
LXM28A
LXM32, Three-Phase, Line Current 14.6...18.1 A
Variable Speed Drive ATV340 At 2.2 kW, 380...480 V
Variable Speed Drive ATV340 At 3 kW, 380...480 V
Variable Speed Drive ATV340 At 4 kW, 380...480 V
Variable Speed Drive ATV340 At 5.5 kW, 380...480 V
Variable Speed Drive ATV340 At 7.5 kW, 380...480 V
| Rated Current [In] | 25 A |
| Thermal Losses | 15.8 W |
| Input Voltage | 200 / 500 V |
| Voltage Tolerance | -15...10 % |
| EMC Filter Compatibility | Type 023 |
| Network Number Of Phases | Three Phase |
| Mounting Location | At Variable Speed Drive Side |
| Product Specific Application | Radio Interference Input Filter |
| Range Of Product | Altivar, Lexium |
| Range Compatibility | Lexium 32, Lexium 52, Lexium 28, Altivar Machine ATV340 |

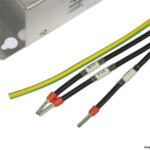

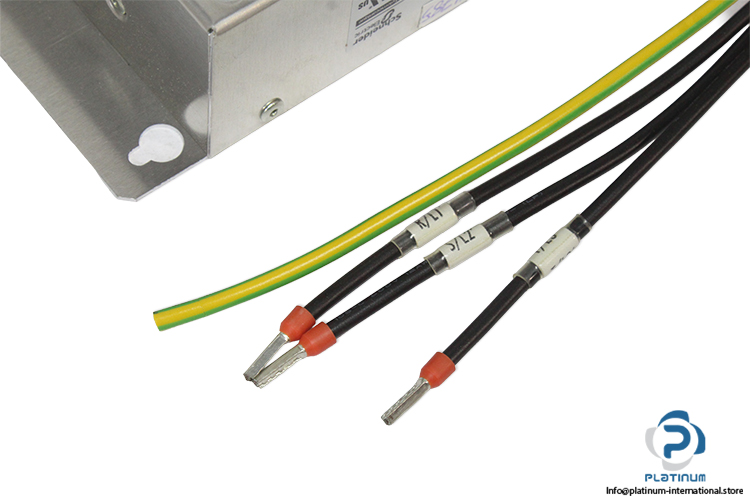

| Wiring Requirement | Requires Copper (Cu) AWG12 Wire Rated For 105 °C |
| Tightening Torque | 15.1 lb.in (1.7 Nm) |
