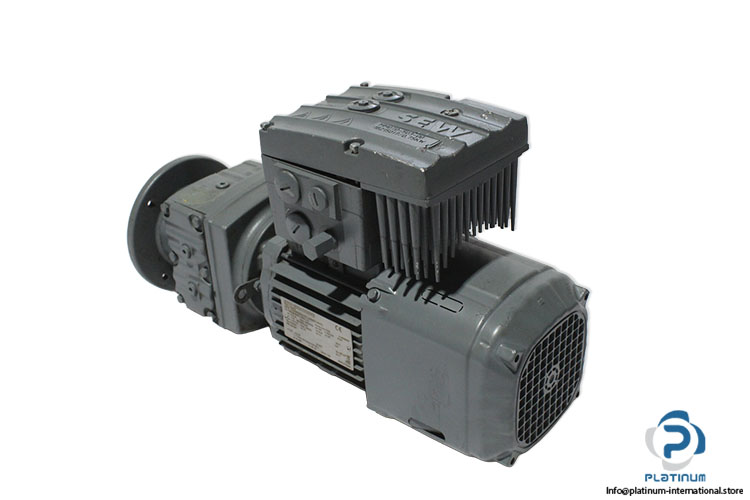

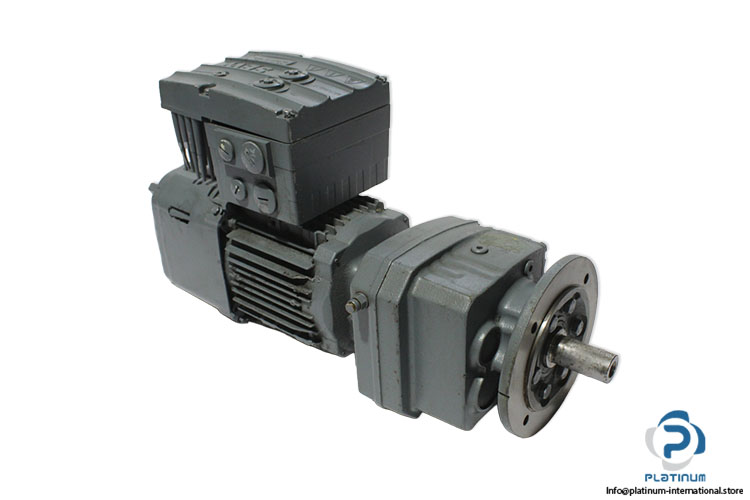

SEW RF37 DRN80MK4/BE1/MM07/AVT1 Helical Gearmotor
مستعمل
متوفر1 وحدةجاهز للشحن
Helical Gearmotor The SEW-Eurodrive RF37 DRN80MK4/BE1/MM07/AVT1 is a helical gearmotor with an integrated MOVIMOT MM07 inverter drive, providing efficient variable-speed control, reliable torque, and dependable performance for industrial automation and power transmission applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

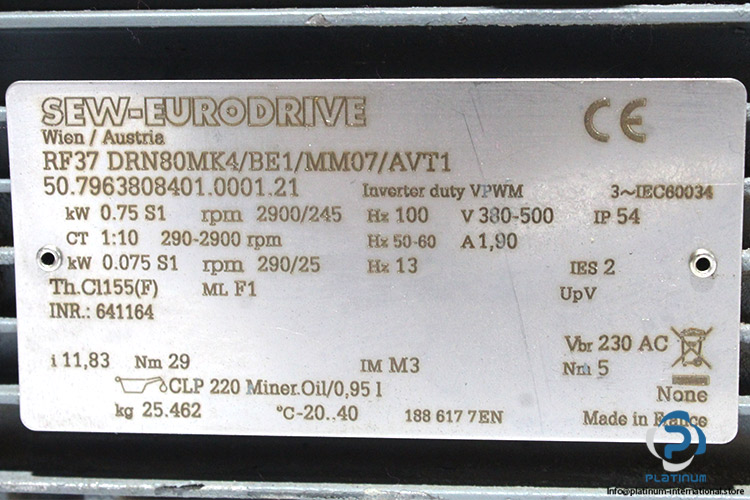

| Part No. | 50.7963808401.0001.21 |
| Input speed [r/min] | 2900 - 290 |
| Output speed [r/min] | 245 - 25 |
| Total ratio [i] | 11,83 |
| Ma max [Nm] | 183 |
| Output torque [Nm] | 29 |
| Service factor SEW-FB | 6,30 |
| Mounting position | M3 |
| ISO code | CLP 220 |
| Lubricant type | Miner.Oil |
| Lubricant volume [l] | 0,95 |
| Motor power [kW] | 0.75 / 0.075 |
| Motor mains power [kW] | 0,550 |
| Motor frequency [Hz] | 100 |
| Cyclic duration factor S1-S10 | S1 |
| Setting range (CT) | 1:10 |
| Motor frequency min. [Hz] | 13 |
| Motor voltage [V] | 380-500 |
| Line frequency [Hz] | 50-60 |
| MM rated main current [A] | 1,90 |
| Thermal cl.[°C]/Enclosure[IP] | 155(F) / 54 |
| International efficiency class | IE3 |
| Motor mains efficiency [%] | 80,8 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Brake voltage [V]/-torque [Nm] | 230 AC / 5 |
| Brake rectifier nameplate | None |
| MOVIMOT | MM07 |

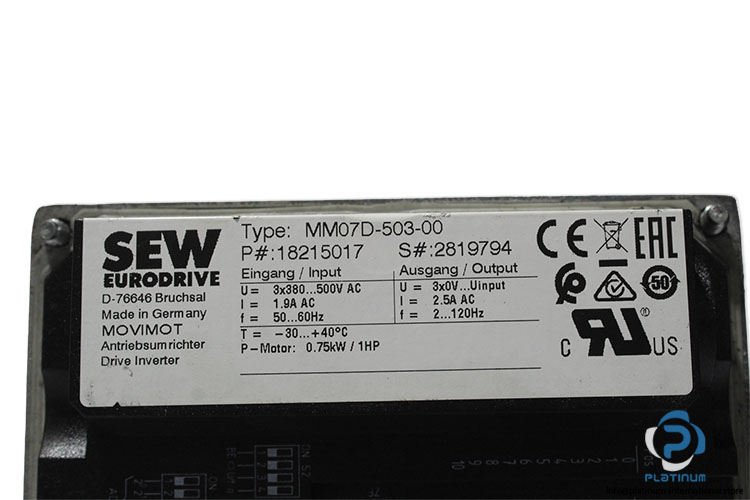

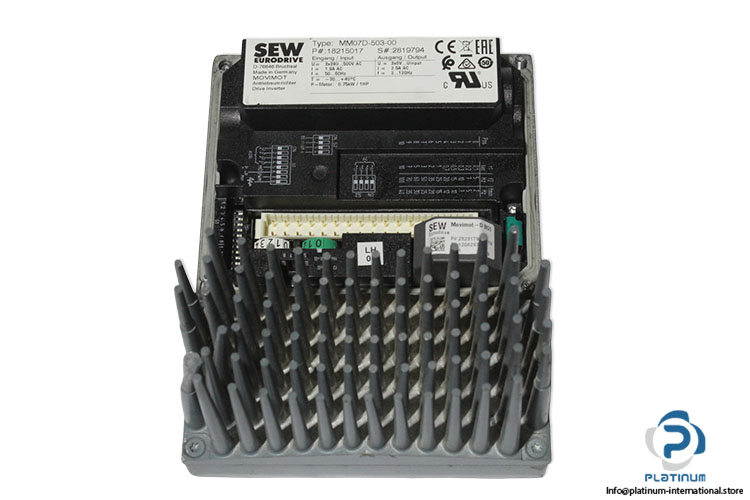

| Attached with | SEW MM07D-503-00 Movimot Inverter Drive |
| P no | 18215017 |
| S no | 2819794 |
| Range | MOVIMOT |
| Supply Voltage, Input | 3-Phase 380 … 500 V AC |
| Rated Current, Input | 1.9 A |
| Frequency, Input | 50 … 60 Hz |
| Power, Input | 0.75kW / 1 HP |
| Rated Voltage, Output | 3-Phase 0 … 380 – 500 V AC |
| Rated Current, Output | 2.5 A |
| Frequency, Output | 2 … 120 Hz |
| Temperature | -30 … 40 °C |
| Stock key | jo-004 |
| Condition | Used |
| SKU | 1100469 |
| Weight | 25,1 |
