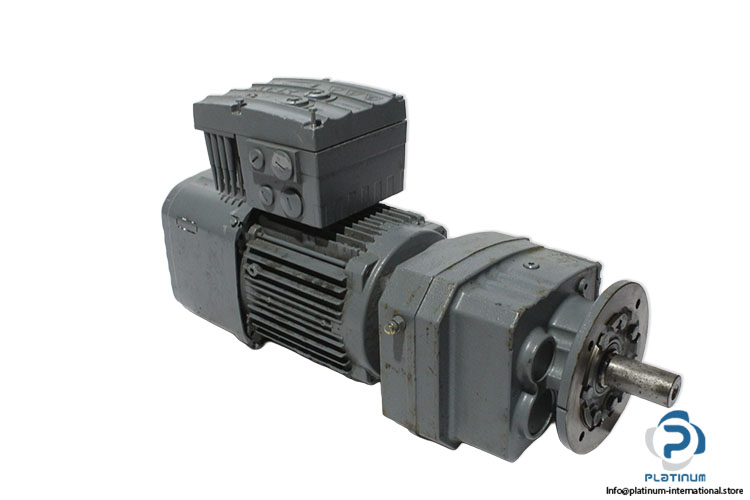

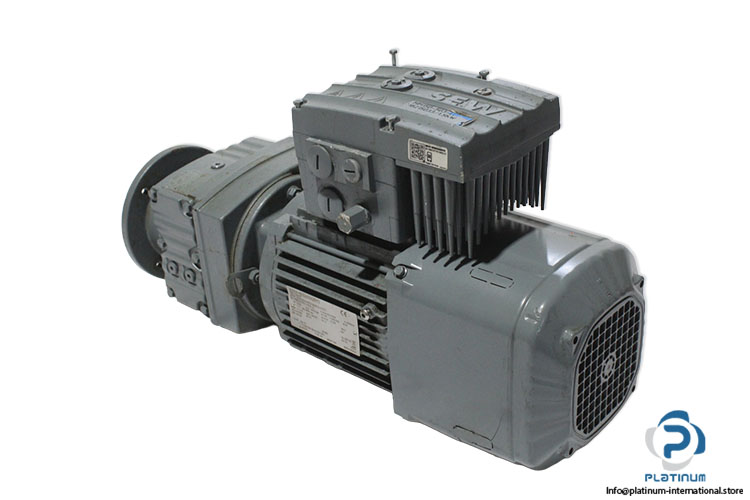

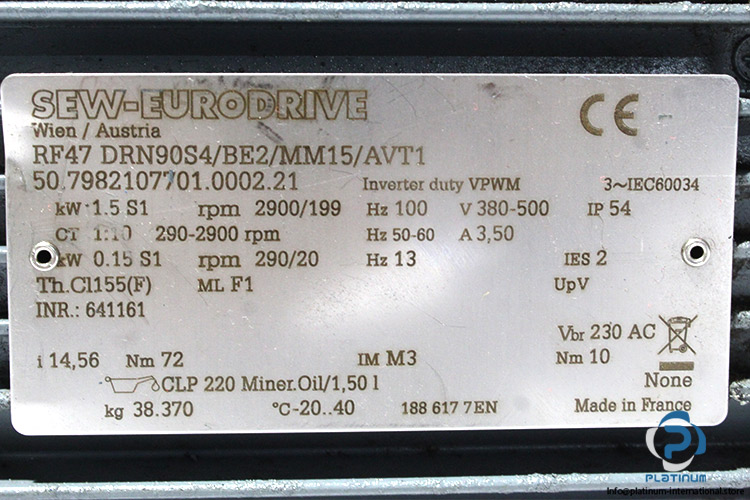

SEW RF47 DRN90S4/BE2/MM15/AVT1 Helical Gearmotor
مستعمل
متوفر1 وحدةجاهز للشحن
Helical Gearmotor The SEW-Eurodrive RF47 DRN90S4/BE2/MM15/AVT1 is a helical gearmotor with an integrated MOVIMOT MM07 inverter drive, providing efficient variable-speed control, reliable torque, and dependable performance for industrial automation and power transmission applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 50.7982107701.0002.21 |
| Input speed [r/min] | 2900 - 290 |
| Output speed [r/min] | 199 - 20 |
| Total ratio [i] | 14,56 |
| Ma max [Nm] | 265 |
| Output torque [Nm] | 72 |
| Service factor SEW-FB | 3,70 |
| Mounting position | M3 |
| ISO code | CLP 220 |
| Lubricant type | Miner.Oil |
| Lubricant volume [l] | 1,50 |
| Motor power [kW] | 1.5 / 0.15 |
| Motor mains power [kW] | 1,100 |
| Motor frequency [Hz] | 100 |
| Cyclic duration factor S1-S10 | S1 |
| Setting range (CT) | 1:10 |
| Motor frequency min. [Hz] | 13 |
| Motor voltage [V] | 380-500 |
| Line frequency [Hz] | 50-60 |
| MM rated main current [A] | 3,50 |
| Thermal cl.[°C]/Enclosure[IP] | 155(F) / 54 |
| International efficiency class | IE3 |
| Motor mains efficiency [%] | 84,5 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Brake voltage [V]/-torque [Nm] | 230 AC / 10 |
| Brake rectifier nameplate | None |
| MOVIMOT | MM15 |

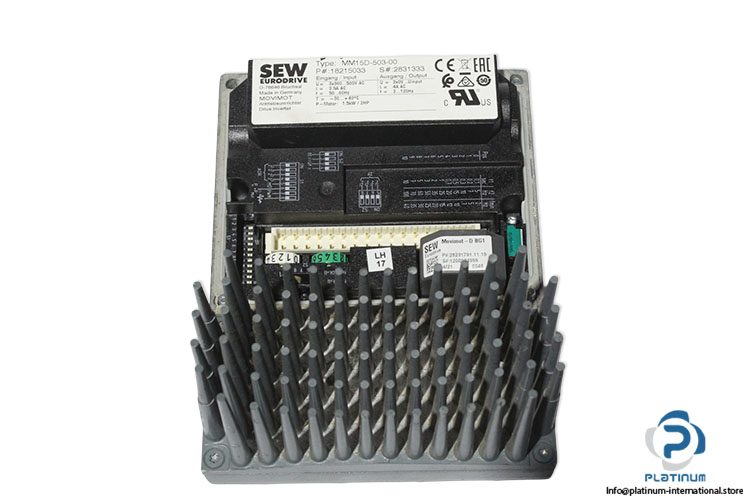

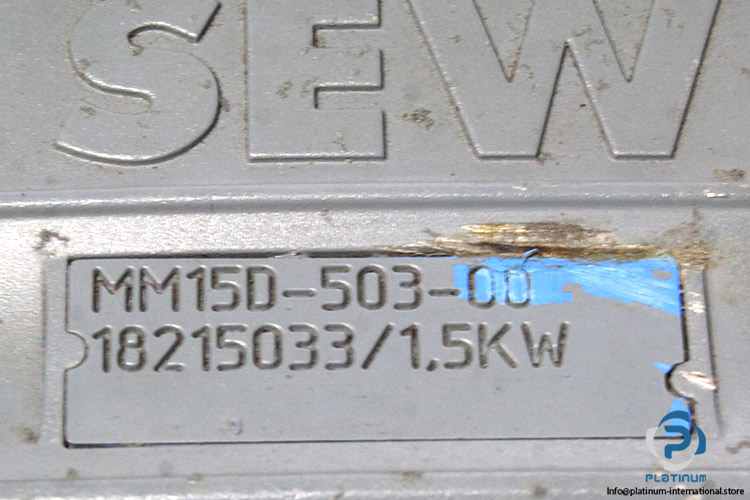

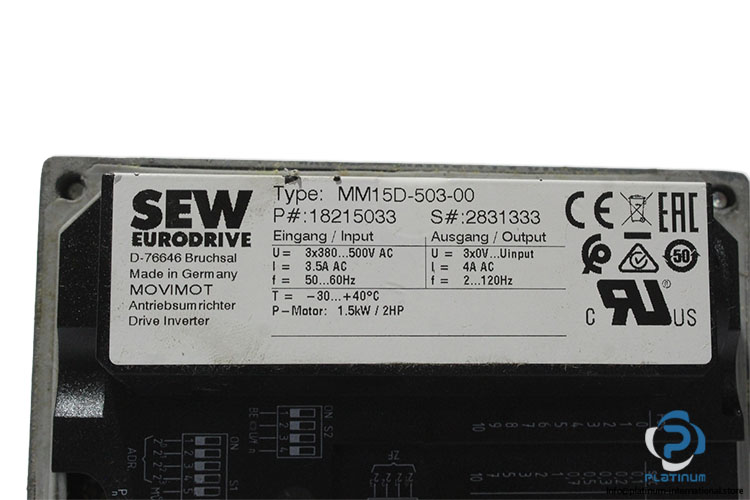

| Attached with | SEW MM15D-503-00 Movimot Inverter Drive |
| P No | 18215033 |
| S no | 2831333 |
| Range | MOVIMOT |
| Supply Voltage, Input | 3-Phase 380 … 500 V AC |
| Rated Current, Input | 3.5 A |
| Frequency, Input | 50 … 60 Hz |
| Power, Input | 1.5 kW |
| Rated Voltage, Output | 3-Phase 0 … 380 – 500 V AC |
| Rated Current, Output | 4 A |
| Frequency, Output | 2 … 120 Hz |
| Temperature | -30 … 40 °C |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100476 |
| Weight | 38,2 |
