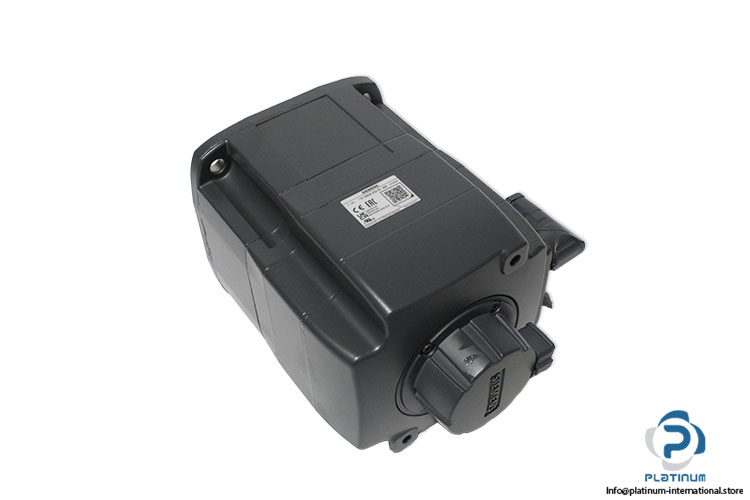

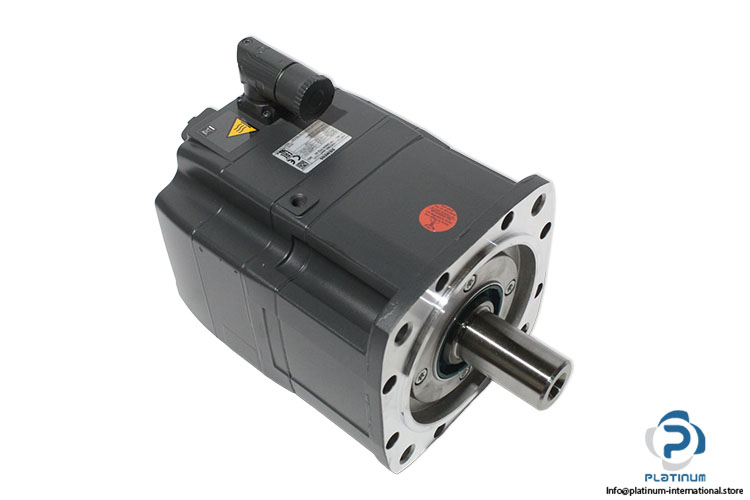

Siemens 1FK7080-2AH71-1CH1 Servomotor
جديد
متوفر2 وحداتجاهز للشحن
3 099,99$
Servo Motor The SIEMENS 1FK7080-2AH71-1CH1 is a synchronous servo motor with high precision, 4500 rpm rated speed, 4.5 Nm torque, and integrated absolute encoder with DRIVE-CLiQ interface.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

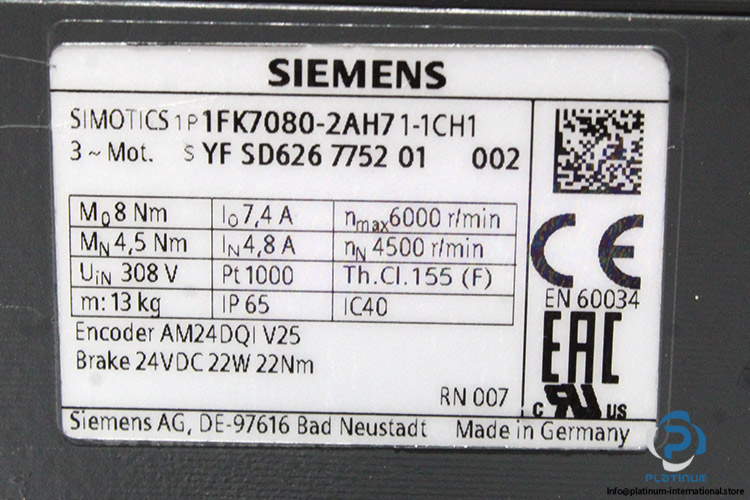

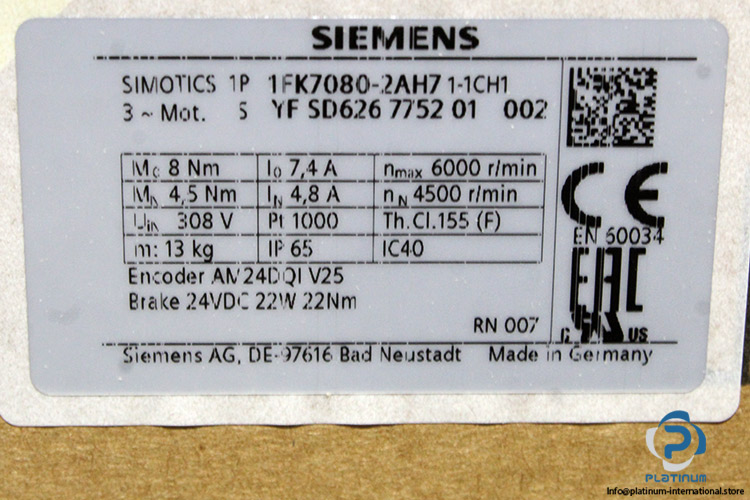

| Drive Family | SIMOTICS |
| Series | 1FK7 |

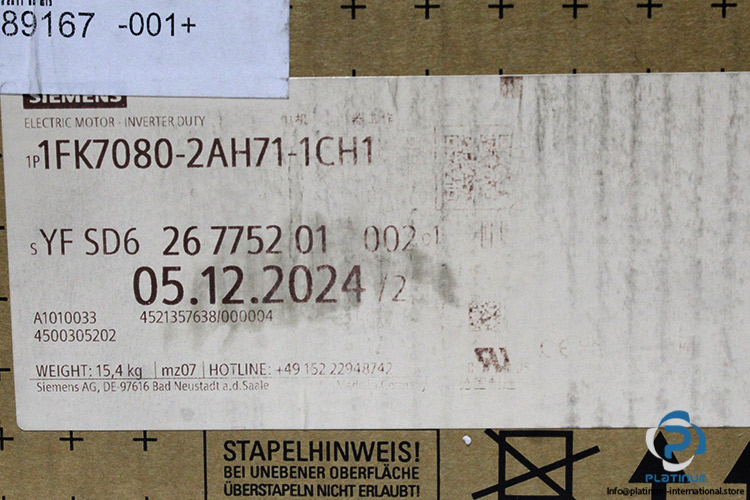

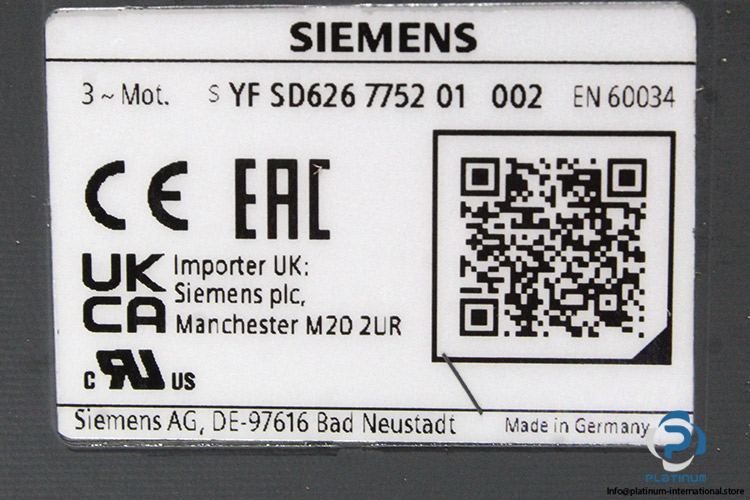

| Ref No. | YF SD626 7752 01 002 |
| Code | A1010033 4521357638/000004/ 4500305202 |
| Encoder model | AM24DQI V25 |
| Rated Voltage | 308 v |
| Standard | EN 60034 |
| Rated speed | 4500 rpm |
| max speed | 6,000 rpm |
| Rated torque | 4.5 Nm |
| Rated current | 4.8 A |
| Static torque | 8 Nm |
| Stall current | 7.4 A |
| design | naturally cooled IMB 5 (IM V1, IM V3) |

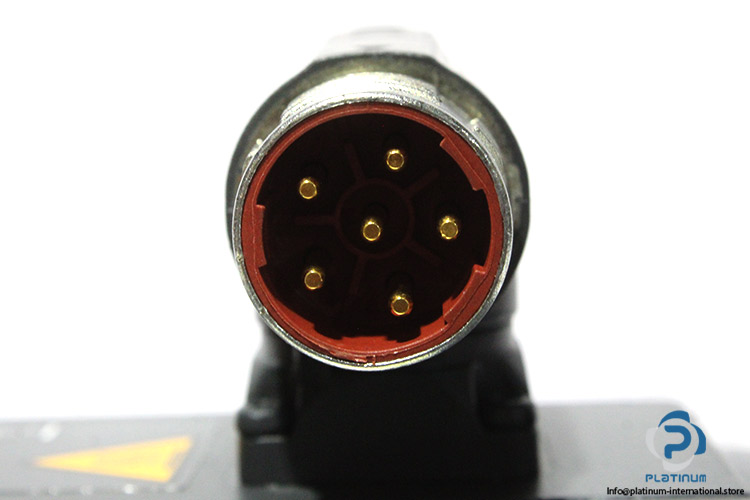

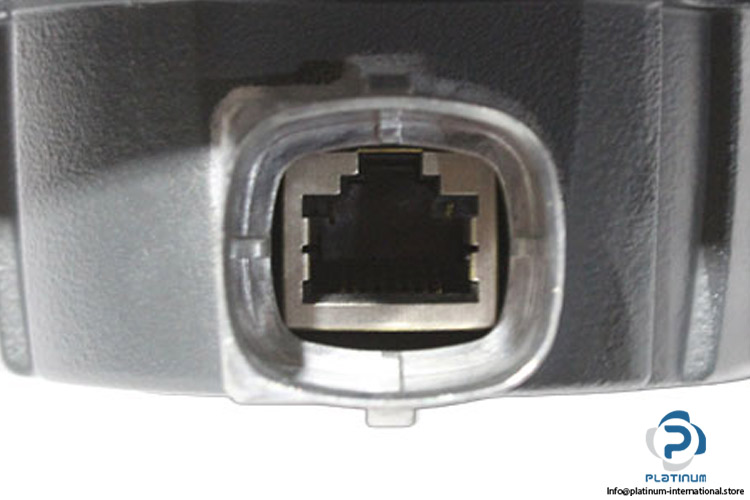

| Connector | circular connector power and RJ45 connector Encoder |
| shaft | smooth shaft, tolerance N with holding brake |
| Brake Voltage | 24VDC |
| Brake Power | 22W |
| Brake torque | 22Nm |
| Sensor Design | Encoder AM24DQI: Absolute encoder 24 bit + 12-bit Multiturn with with DRIVE-CLiQ interface |
| Stock key | jo-004 |
| Condition | New |
| SKU | 1096847 |
| Weight | 15,5 |
