Siemens 6SE7026-0TD61-Z Inverter
جديد
متاح عند الطلب
INVERTER
Siemens 6SE70260TD61Z inverter from the SIMOVERT VC MASTERDRIVES VECTOR CONTROL series, delivering 30 kW output power, IP20 protection, and precise speed control for industrial applications.30ControlDriveHighIndustrialInverterIP20kWMasterdrivesperformancePowerSeriesSiemensSimovertSpeedVCVector
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
SIEMENS 6SE70260TD61Z INVERTER
The Siemens 6SE70260TD61Z is a high-performance inverter from the SIMOVERT VC MASTERDRIVES VECTOR CONTROL range, designed for precise speed and torque control in demanding industrial applications. Built to IEC 146-1-1 standards, it delivers efficient power conversion with robust protection in a compact form factor.
Manufacturer: Siemens
Type: Inverter
Model: 6SE70260TD61Z

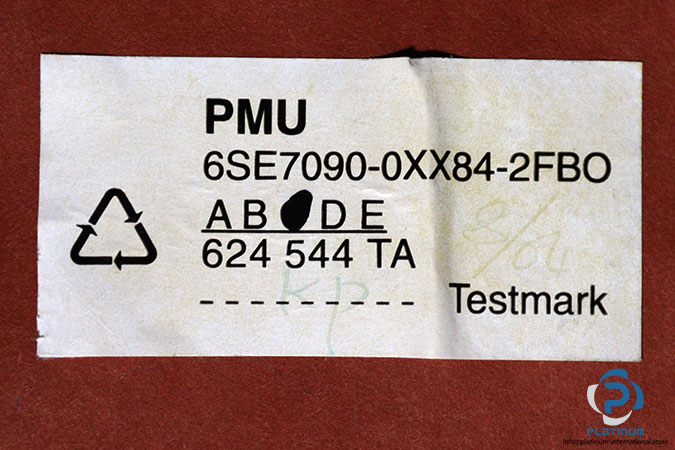

Reference No.: 6SE7090-0XX84-2FBO / 624 544 TA
Range: SIMOVERT VC
Subrange: MASTERDRIVES VECTOR CONTROL

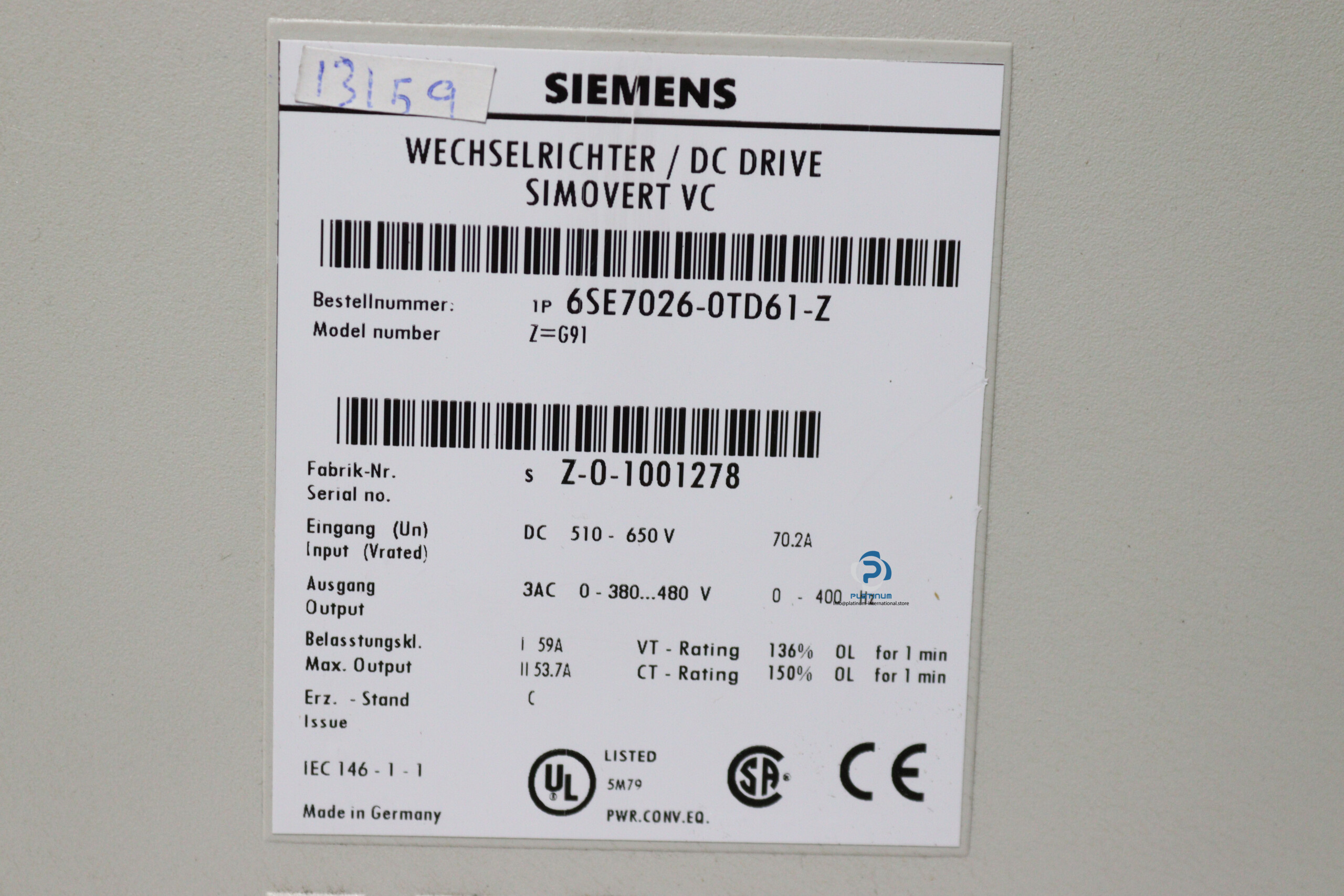

| Input Supply Voltage | 510 / 650 V DC |
| Input Rated Current | 70.2 A |
| Input Frequency | 47 / 63 Hz |
| Output Rated Voltage | 3-Phase 0 / 380“480 V AC |
| Output Rated Current | 53.7 A |
| Output Frequency | 0 / 400 Hz |
| Power | 30 kW |
| Protection Class | IP20 |
| Standard | IEC 146-1-1 |
| Dimensions | 660 x 406 x 381 mm |
