TEE Q2D 132M2A-41 H 3 Phase Electric Motor
مستعمل
متوفر1 وحدةجاهز للشحن
3 Phase Electric Motor The TEE Q2D 132M2A-41 H is a 3-phase industrial electric motor with 7.5 kW rated power at 50 Hz, IE2 efficiency and S1 continuous duty.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

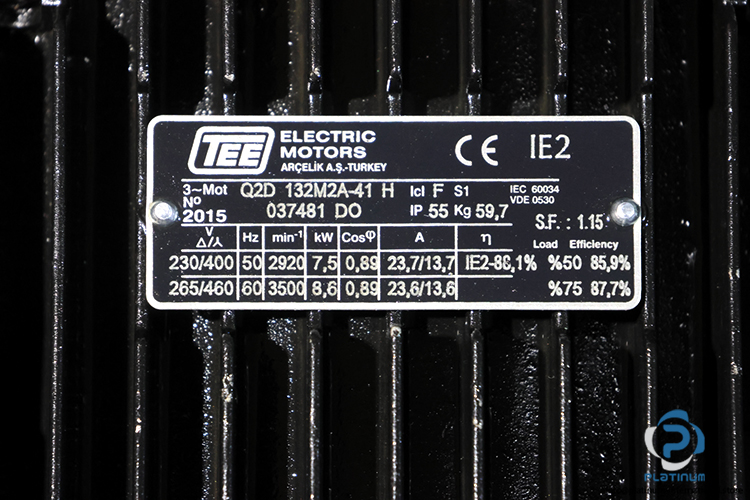

| Ref No | 037481 DO, INV MC 4 7.50 L00A00- G10000 S00 005 1 |
| ART Nr . | 10098571 (00) |
| S.F. | 1.15 |
| Voltage (Delta/Star) at Frequency 50 Hz | 230 / 400 V |
| Speed at Frequency 50 Hz | 2920 rpm |
| Rated Power at Frequency 50 Hz | 7.5 kW |
| Power Factor (Cos) at Frequency 50 Hz | 0.89 |
| Rated Current at Frequency 50 Hz | 23,7/13,7 A |
| Voltage (Delta/Star) at Frequency 60 Hz | 265 / 460 V |
| Speed at Frequency 60 Hz | 3500 rpm |
| Rated Power at Frequency 60 Hz | 8.6 kW |
| Rated Current at Frequency 60 Hz | 23.6 / 13.6 A |
| Power Factor (Cos) at Frequency 60 Hz | 0.89 |
| Efficiency (Full Load) | 80.1 % |
| Efficiency at 50 % Load | 85.9 % |
| Efficiency at 75 % Load | 87.7 % |
| Duty Type | S1 (Continuous Duty) |
| Insulation Class | F |
| Protection Class | IP55 |
| Standard | IEC 60034 / VDE 0530 |
| Efficiency Class | IE2 |
| Service Factor (S.F.) | 1.15 |
| Mounting | B3 |
| Brand | TEE |
| Serial No. | 90280LL400008 |

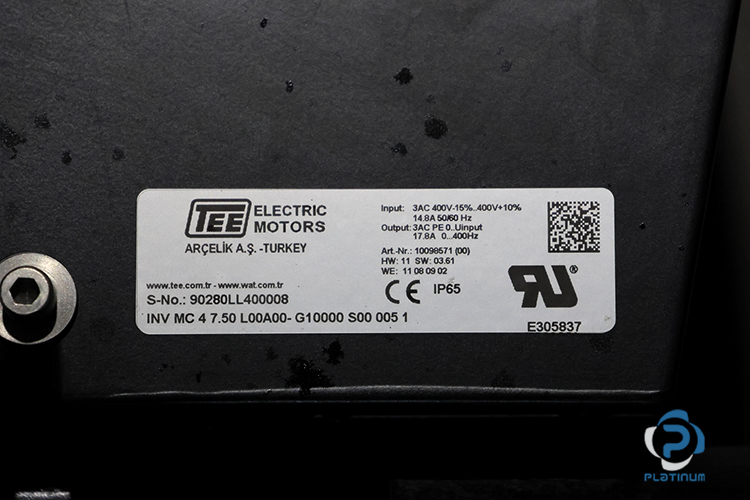

| Input Voltage | 3 AC 400 V V |
| Input Current | 14.8 A |
| Input Frequency | 50 / 60 Hz |
| Output | 3 AC 0 - 400 V |
| Output Current | 17.8 A |
| Output Frequency Range | 0 / 400 Hz |
| Hardware Version (HW) | 11 |
| Software Version (SW) | 03.61 |
| WE Code | 11 08 09 02 |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1101294 |
| Weight | 62,5 |
