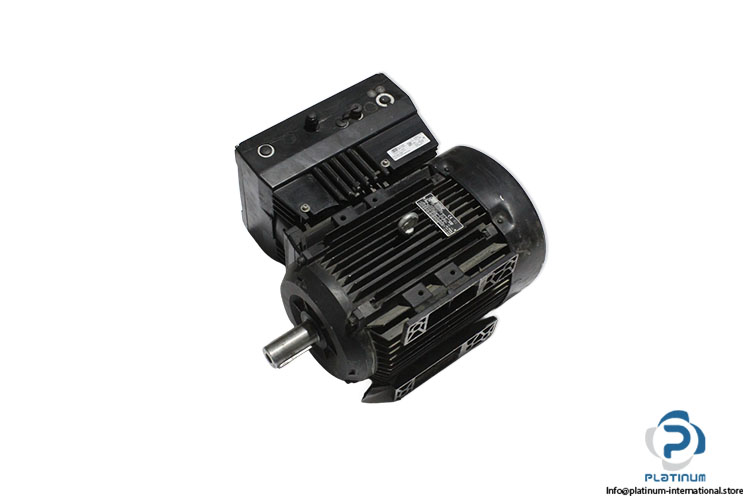

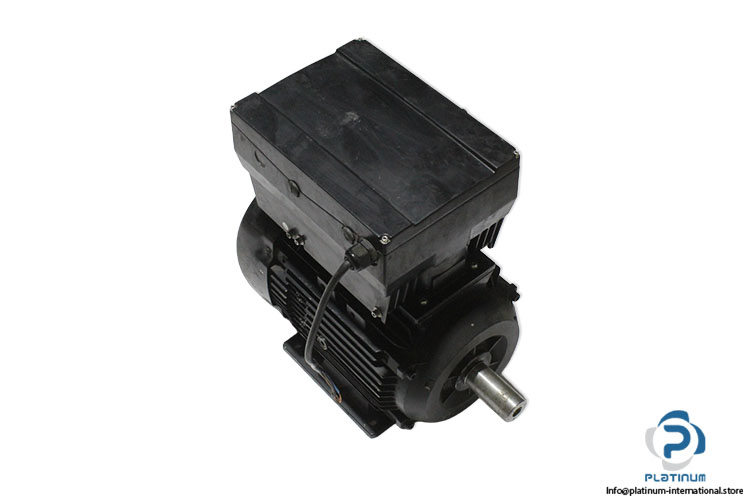

TEE Q2D 132M4C-41 H 3 Phase Electric Motor
مستعمل
متوفر1 وحدةجاهز للشحن
3 Phase Electric Motor The TEE Q2D 132M4C-41 H is a 3-phase industrial electric motor with 7.5 kW rated power at 50 Hz, IE2 efficiency and S1 continuous duty.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

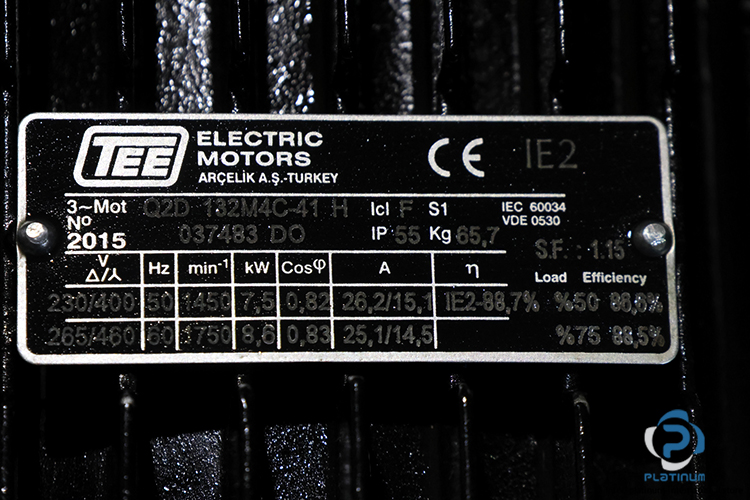

| ART Nr . | 10098571(00) |
| Voltage (Delta/Star) at Frequency 50 Hz | 230 / 400 V |
| Speed at Frequency 50 Hz | 1450 rpm |
| Rated Power at Frequency 50 Hz | 7.5 kW |
| Power Factor (Cos) at Frequency 50 Hz | 0.82 |
| Rated Current at Frequency 50 Hz | 26.2/15.1 A |
| Voltage (Delta/Star) at Frequency 60 Hz | 265 / 460 V |
| Speed at Frequency 60 Hz | 1750 rpm |
| Rated Power at Frequency 60 Hz | 8.6 kW |
| Rated Current at Frequency 60 Hz | 25.1 / 14.5 A |
| Power Factor (Cos) at Frequency 60 Hz | 0.83 |
| Efficiency (Full Load) | 88.7% |
| Efficiency at 50 % Load | 88.6 % |
| Efficiency at 75 % Load | 88.5% |
| S.F . | 1:15 |
| Duty Type | S1 (Continuous Duty) |
| Insulation Class | F |
| Protection Class | IP55 |
| Standard | IEC 60034 / VDE 0530 |
| Efficiency Class | IE2 |
| Service Factor (S.F.) | 1.15 |
| Mounting | B3 |
| Brand | TEE |
| Serial No. | 90280MB40001H |

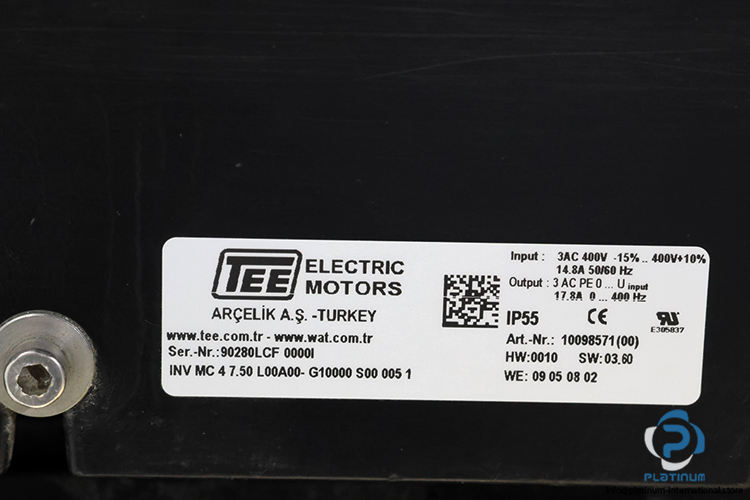

| Input Voltage | 3 AC 400 V V |
| Input Current | 14.8 A |
| Input Frequency | 50 / 60 Hz |
| Output | 3 AC 0 - 400 V |
| Output Current | 17.8 A |
| Output Frequency Range | 0 / 400 Hz |
| Hardware Version (HW) | 0010 |
| Software Version (SW) | 03.60 |
| WE Code | 10098571(00) |
| Certification Marks | CE, RU (E305837) |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1101296 |
| Weight | 62,5 |
