Motion Control Rotary Encoders

Thalheim ITD 3 A 4Y2 Incremental Encoder

Name: THALHEIM ITD 3 A 4Y2 INCREMENTAL ENCODER
SKU: 966407
Price: 166.66 USD
Availability: InStock

thalheim-itd-3a4y2-incremental-encoder3_675x450

thalheim-itd-3a4y2-incremental-encoder4_675x450

thalheim-itd-3a4y2-incremental-encoder5_675x450

thalheim-itd-3a4y2-incremental-encoder6_675x450

مستعمل

متوفر2 وحداتجاهز للشحن

166,66$

مُشَفِّر تَدْرِيجِي Baumer Thalheim ITD 3 A 4Y2 يوفر دقة 200 PPR، خرج دفع وسحب (HTL)، تصميم محور مجوف، وحماية IP54، مثالي لأنظمة الأتمتة الدقيقة.

الشركة المصنّعة

Baumer Thalheim

SKU

966407

الفئة

Rotary Encoders

الحالة

مستعمل

200 3 4Y2 a Baumer Encoder hollow HTL Incremental Industrial IP54 ITD Motion PPR Push-Pull Rotary Sensor shaft Thalheim

مخزون ضخم

شحن عالمي

دعم من خبراء

جودة مضمونة

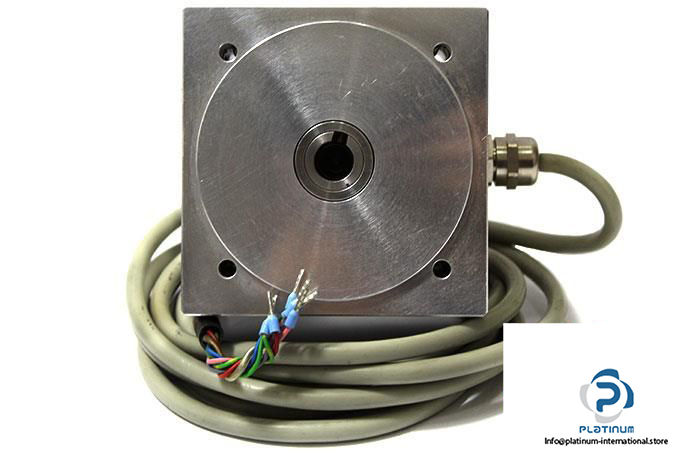

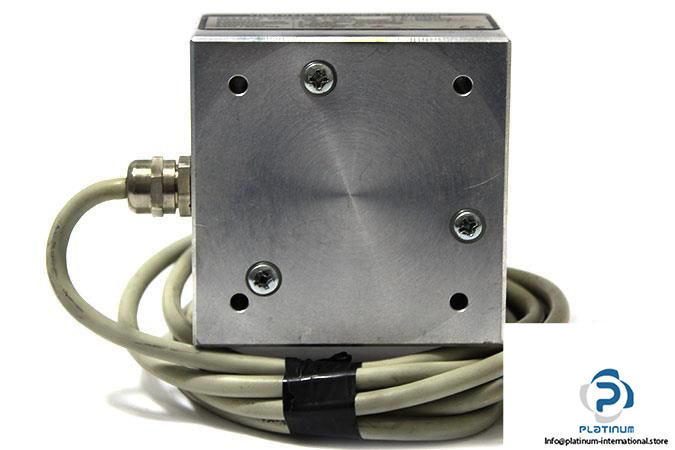

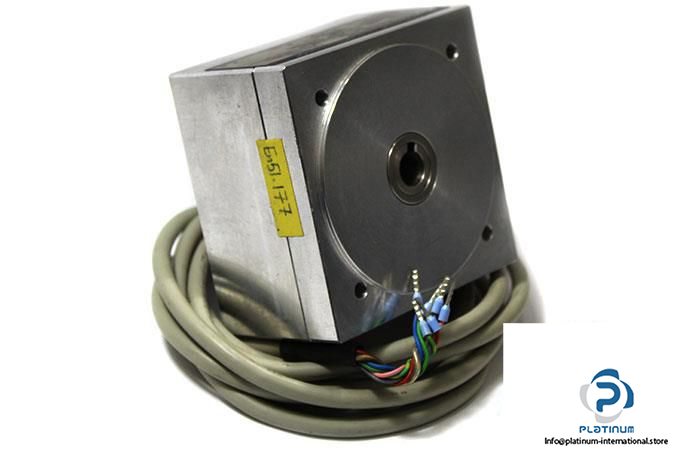

BAUMER THALHEIM ITD 3 A 4Y2 INCREMENTAL ENCODER

The Baumer Thalheim ITD 3 A 4Y2 is a high-precision incremental encoder designed for accurate motion control and positioning in demanding industrial environments. With a rugged design, this encoder offers reliable performance across various automation systems.

Manufacturer: Baumer Thalheim

Type: Incremental Encoder

Model: ITD 3 A 4Y2

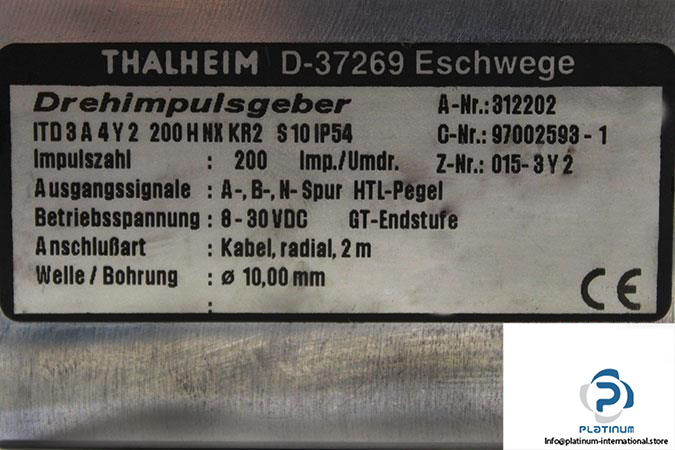

MRN: ITD 3 A 4Y2 200 H NX KR2 S 10 IP54

A No: 312202

C No: 97002593-1

Z No: 015-3y2

Shaft Design	Hollow Shaft
Shaft Diameter	10 mm
Voltage Supply	8 / 30 VDC
Resolution	200 pulses per revolution (PPR)
Output Circuit	Push-pull (HTL)

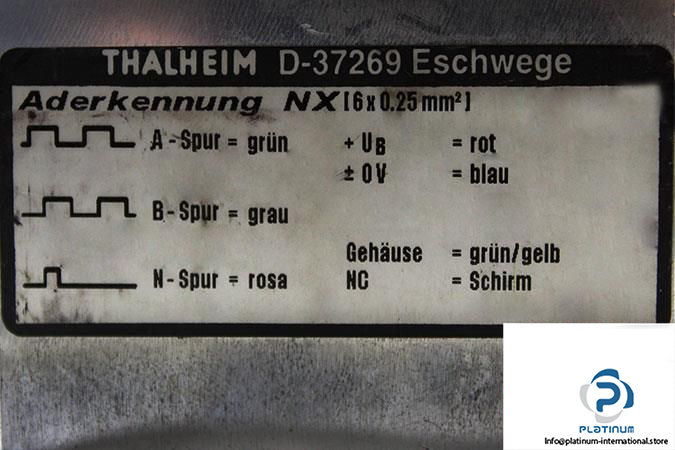

Connection Type	Cable 6Ã—0.25 mm, Radial, 2m
Protection Class	IP54
Temperature Range	-20 / 75 °C
