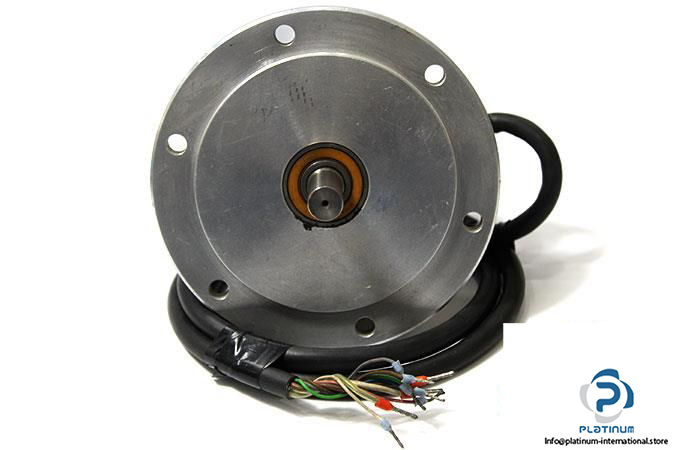

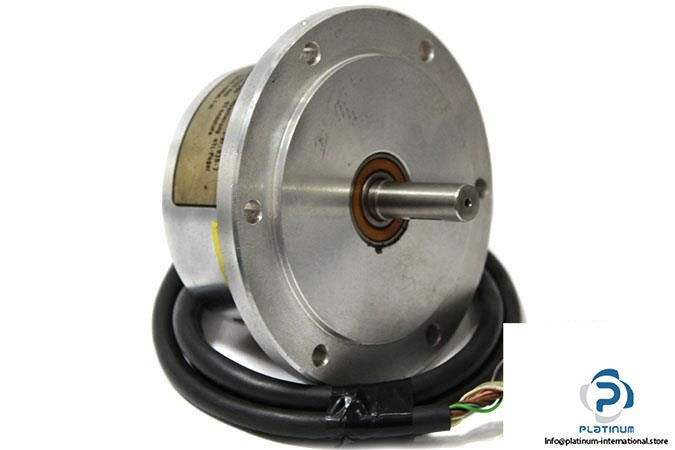

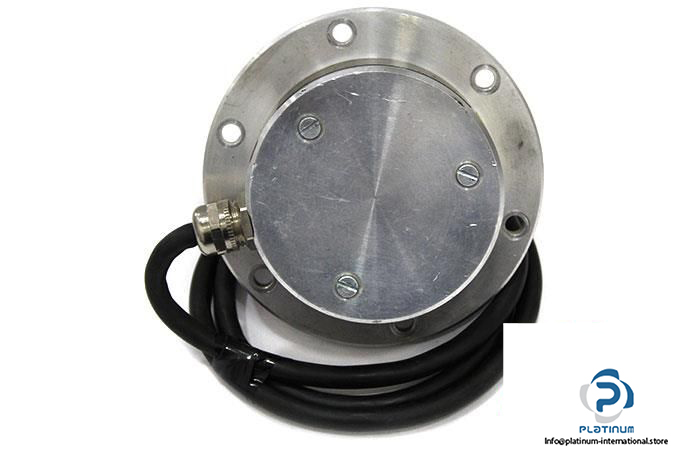

Thalheim ITD 40 B10 Incremental Encoder
162,00$
مشفّر تزايدي Baumer Thalheim ITD 40 B10 هو مشفّر تزايدي مدمج وعالي الدقة مع 1024 PPR، وعمود صلب بقطر 11 مم، ومخرج دفع وسحب (HTL)، وحماية IP54، مثالي للأتمتة الصناعية.
BAUMER THALHEIM ITD 40 B10 INCREMENTAL ENCODER
The Baumer Thalheim ITD 40 B10 is a high-precision incremental encoder designed for industrial automation systems requiring accurate position feedback. Engineered with a robust aluminum housing and stainless steel shaft, this encoder delivers reliable performance in demanding environments.
Manufacturer: Baumer Thalheim
Type: Incremental Encoder
Model: ITD 40 B10

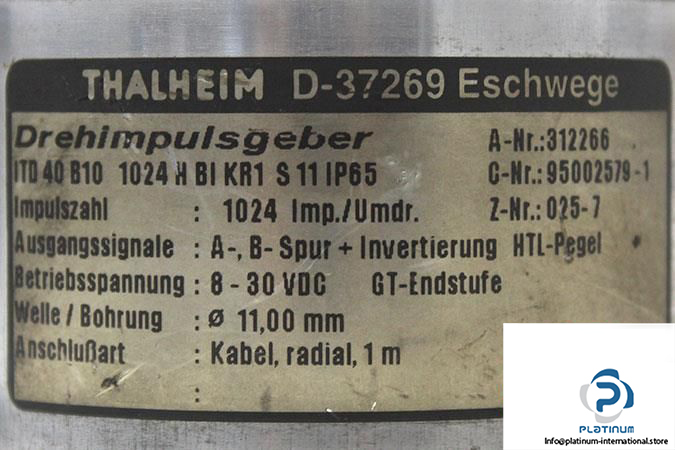

MRN: ITD 40 B10 1024 H BI KR1 S 11 IP65
Art No.: 312266
G No.: 95002579-1
Z No.: 025-7
| Shaft Design | Solid shaft |
| Shaft Diameter | 11 mm |
| Voltage Supply | 8 / 30 VDC |
| Resolution | 1024 pulses per revolution (PPR) |

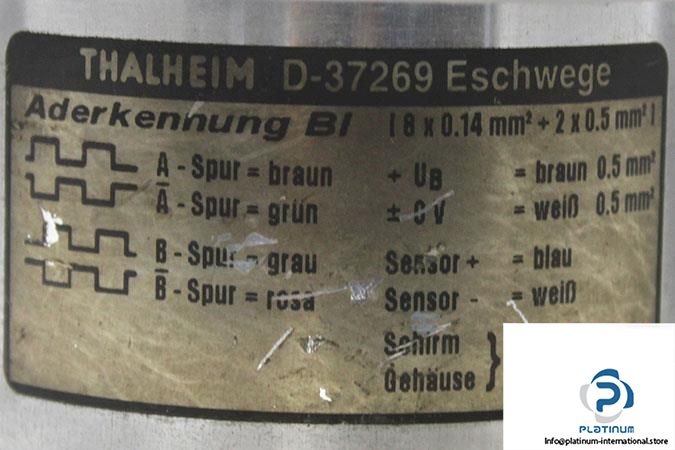

| Output Circuit | Push-pull (HTL) |
| Type of Connection | Cable, radial, 1m |
| Protection Class | IP54 |
| Housing Material | Aluminium |
| Shaft Material | Stainless steel |
