FG PI 3115 PS 10 Filter Element
Neu
Auf Lager9 EinheitenVersandbereit
Filterelement FG Filtrationgroup PI3115PS10 mit Glasfaser-Medium, 10 Mikron Filtrationsgrad und hoher Durchflusskapazität für industrielle Filtersysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

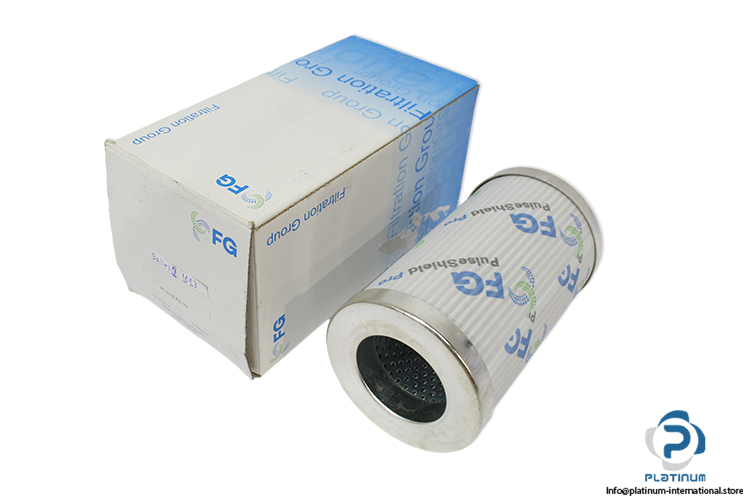

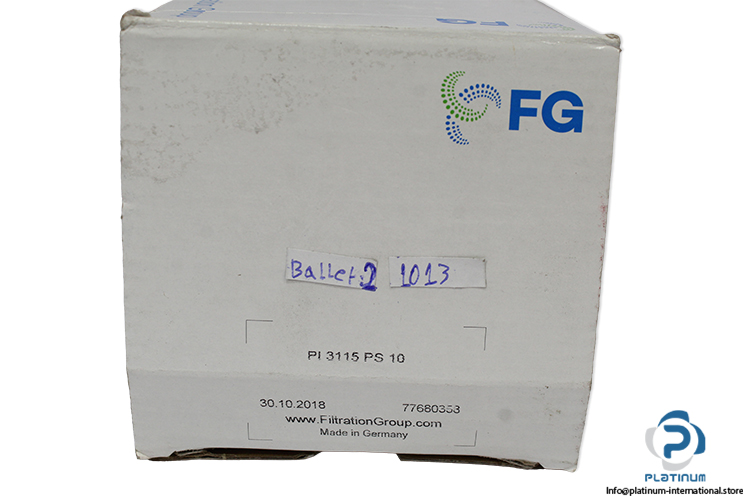

FG Filtrationgroup PI3115PS10 Filter Element
The FG Filtrationgroup PI3115PS10 is a high-performance filter element designed for efficient fluid filtration in industrial systems. Built with glass fibre filter media and a robust plastic end cap, it ensures reliable particle retention and long service life under demanding operating conditions.
Manufacturer: FG Filtrationgroup
Type: Filter Element
Model: PI3115PS10
Part No.: 77680358
| Element Type | FG Standard |
| Nominal Size | 150 l/min |
| Height | 142.00 mm |
| Outer Diameter | 84.00 mm |
| Inner Diameter | 47.50 mm |
| Mounting Diameter | 47.50 mm |
| Differential Pressure Resistance | 20 bar |
| Filter Surface | 2,425 cm² |
| Filter Material Code | PS 10 |
| Filter Material | Glass Fibre |
| Filter Rating | 10.00 µm |
| End Cap Material | Plastic End Cap PA |
