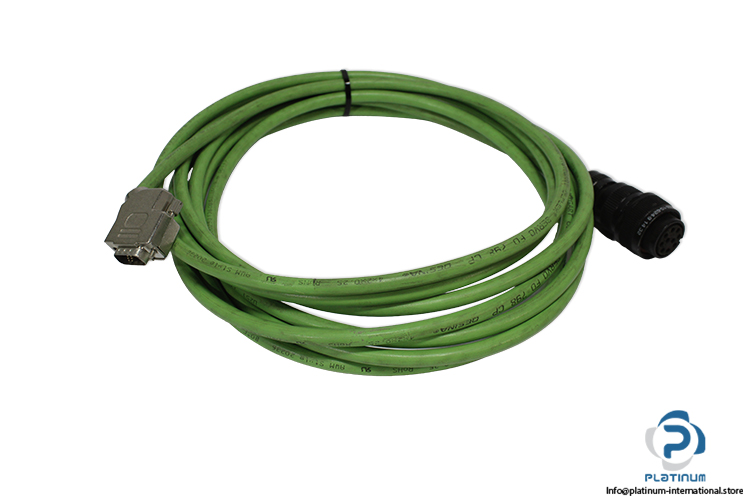

Lapp 0036921 / 5M Multi-Conductor Cable
SSI Encoder Kabel LAPP vormontiertes SSI-Encoder-Kabel, 5 m Länge, 8 Leiter, 24 AWG, PUR-Mantel, geflochtene Abschirmung, 10-polige Buchse zu 15-poligem Stecker, UL- und CE-zertifiziert.
LAPP Pre-Assembled SSI Encoder Cable “ Part No. 0036921
The LAPP pre-assembled SSI encoder cable is a high-quality multi-conductor cable designed for reliable signal transmission in motion control and feedback systems. Compatible with OLFLEX SERVO FD 798 CP, this cable features durable PUR insulation, braided shielding, and tinned copper conductors to ensure stable performance in industrial environments.
Manufacturer: LAPP
Type: Multi-Conductor Cable
Product Type: Pre-assembled SSI Encoder Cable
Compatible With: OLFLEX SERVO FD 798 CP

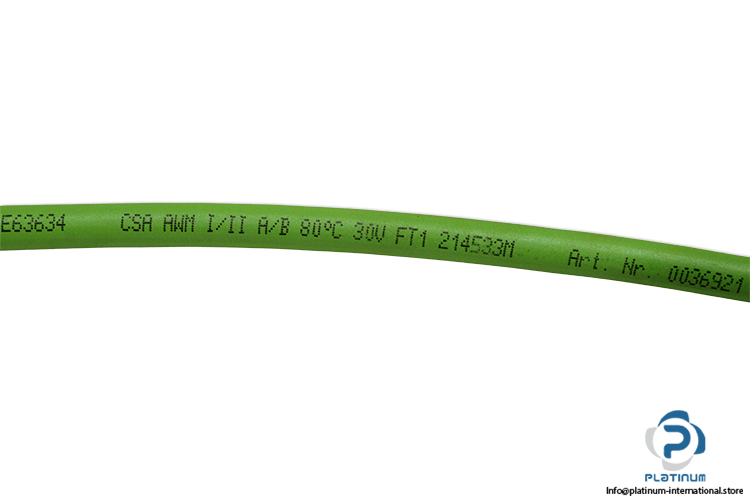

Part No.: 0036921

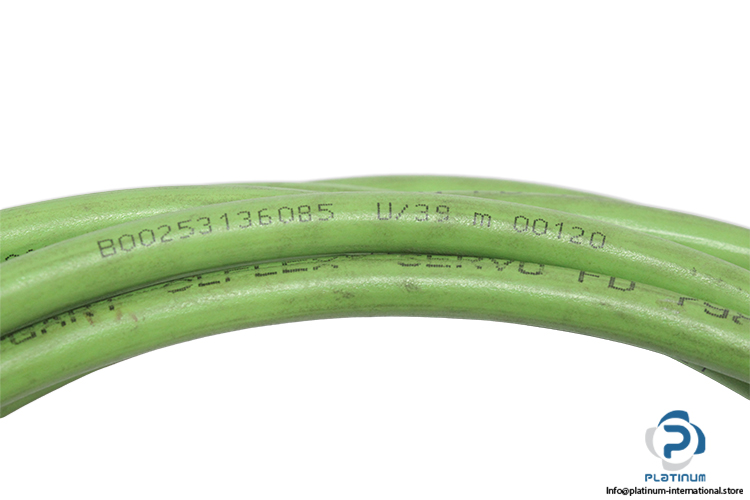

Code: B00253136085 / 00120
Cable Length: 5 m

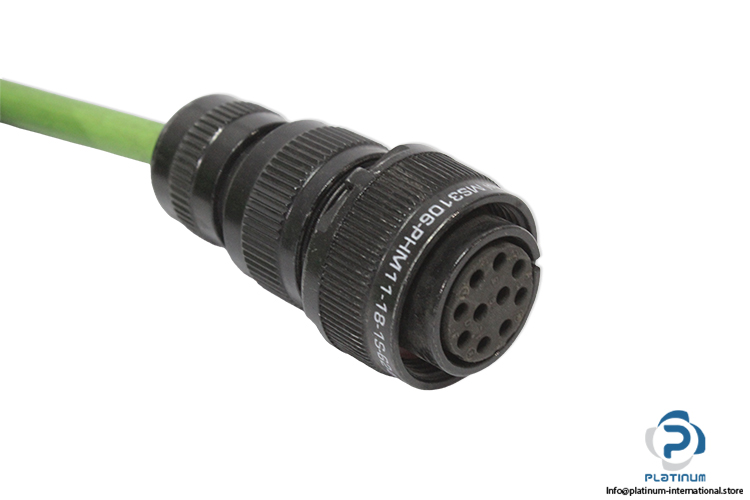

Connector 1: 10-Pins Female

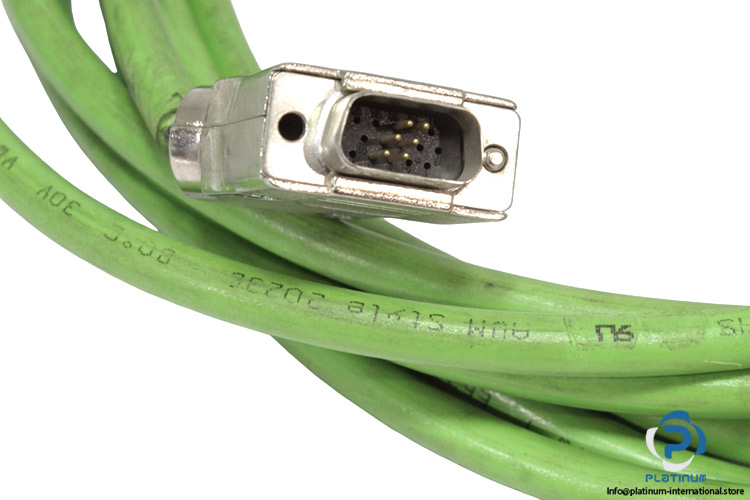

Connector 2: 15-Pins Male
| Cable Information | AWM STYLE 20236, 30 V, 80 C |
| AWG / Gauge | 24 |
| Number Of Conductors | 8 |
| Conductor Material | Tinned Copper |
| Conductor Stranding | Stranded |
| Shielding | Braid |
| Jacket Color | Green |
| Jacket Material | Polyurethane (PUR) |
| Nominal Outer Diameter (Inch) | 0.299 in |
| Nominal Outer Diameter (mm) | 7.6 mm |
| Voltage | 30 V |
| Temperature Range (°F) | -40°F to +176°F |
| Temperature Range (°C) | -40°C to +80°C |
| Attributes | Multi-Conductor |
| Standards / Approvals | UL Approved, CE Approved |
