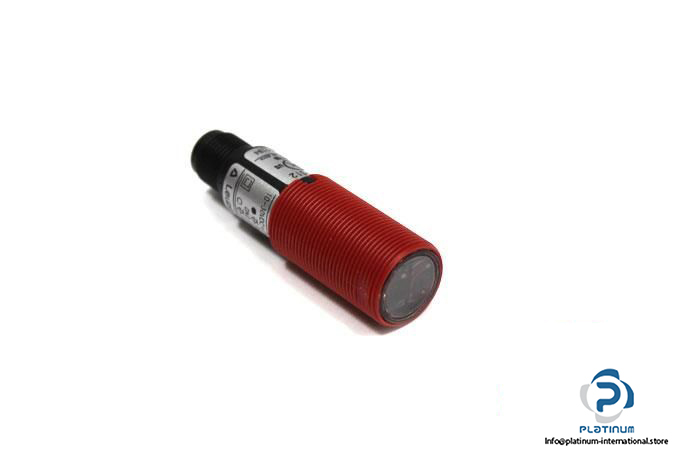

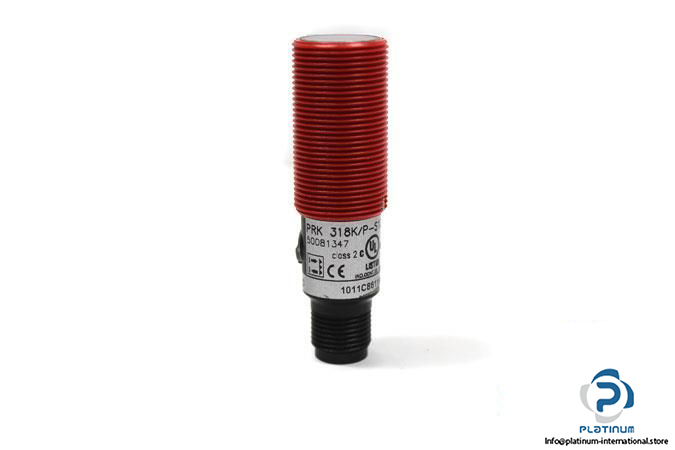

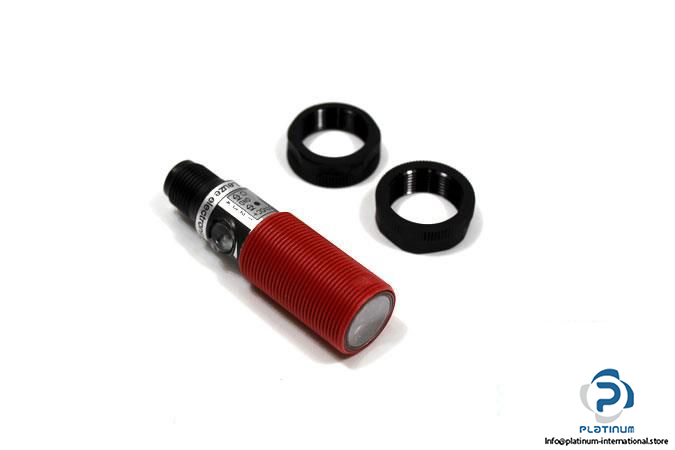

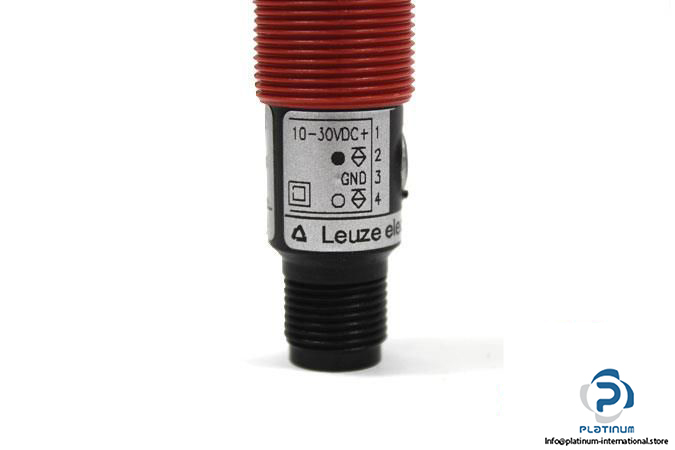

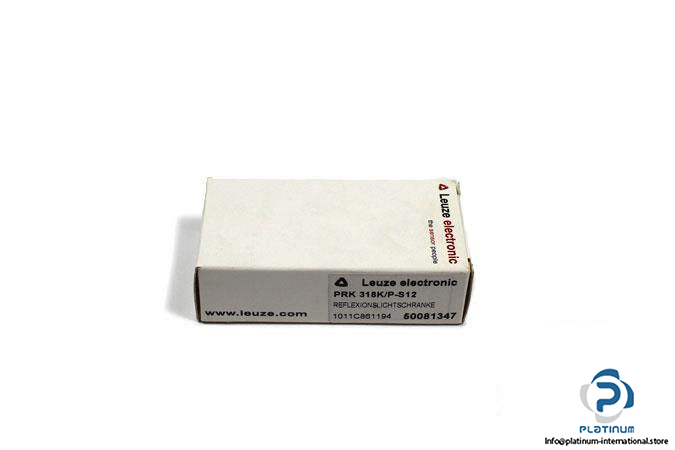

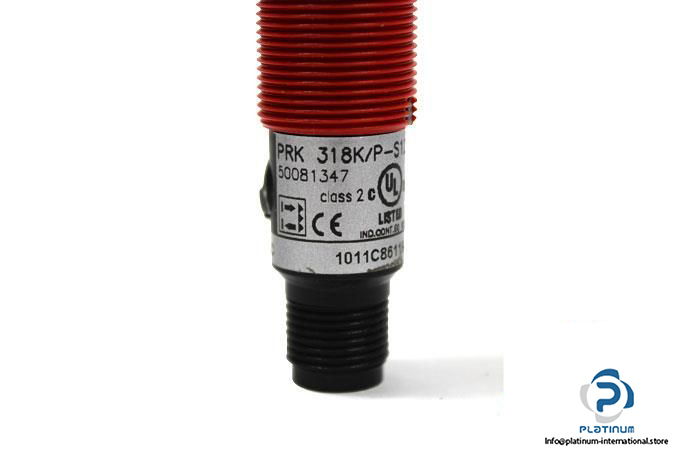

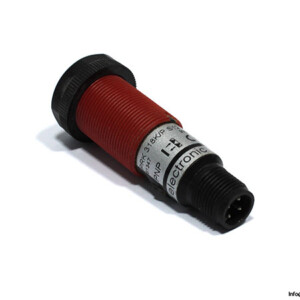

Leuze PRK 318K/P-S12 Photoelectric Retro-Reflective Sensor
30,00$
Hersteller: LEUZE Typ: Photoelektrischer Reflexionssensor mit Polarisationsfilter Modell: PRK 318K/P-S12 Teilenummer: 50081347
Manufacturer: LEUZE
Type: Photoelectric Retro-Reflective Sensor With Polarization Filter
Model: PRK 318K/P-S12
Part No.: 50081347
Operating range: 0.02 … 6 m
Response time: 0.5 ms
Delay before start up: ≤ 30 ms
Operating Voltage: 10 … 30 V DC
Output Current: 100 mA
Switching frequency: 1000 Hz
Electrical design: PNP
Light source: LED
Wave length: 660 nm
Switching output: Light/dark switching
Adjustment: Potentiometer
Connector type: M12 connector, 4-pin
Enclosure rating: IP67
Ambient Operating temperature: -25 … 65°C
Diameter, housing length: 18, 62 mm
Weight: 20 g
Housing: Threaded type
Housing material: Plastic
