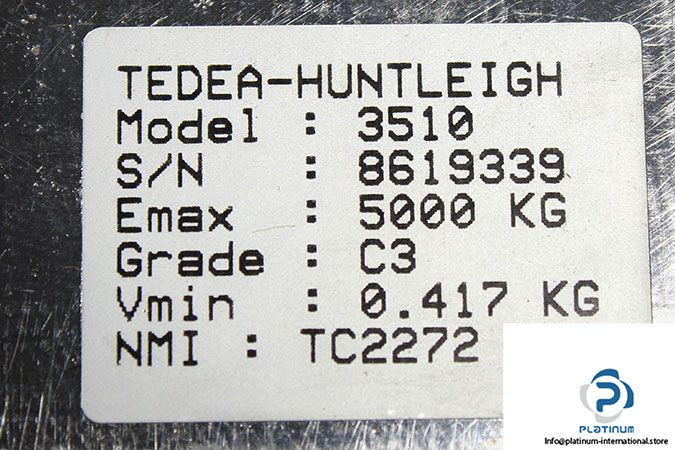

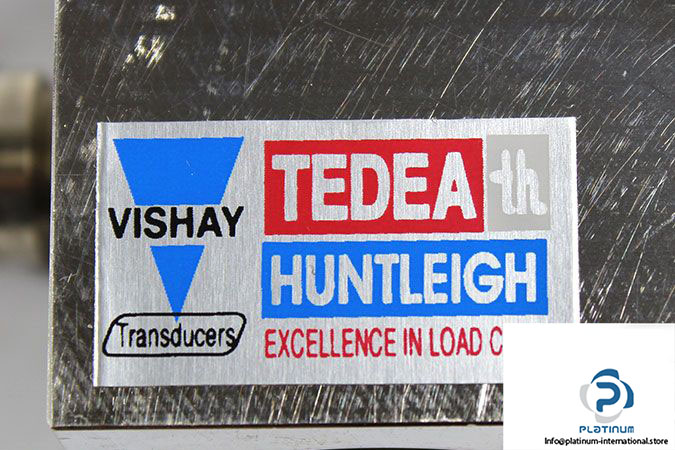

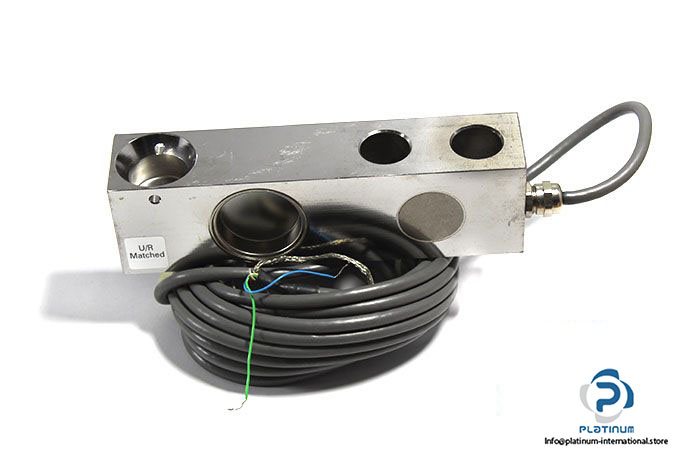

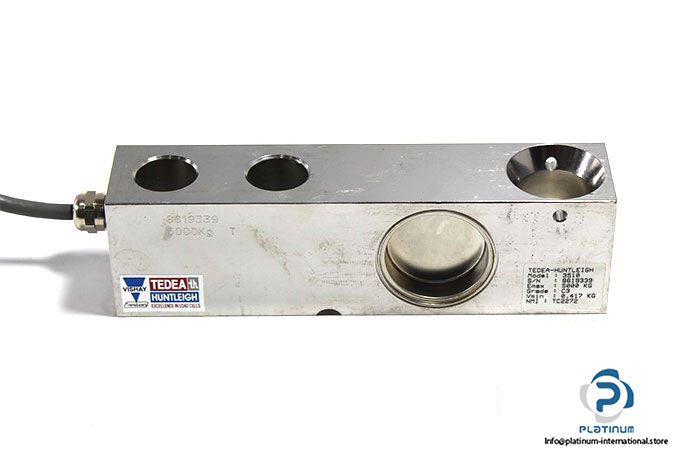

Tedea Huntleigh 3510 MAX 5000 KG Shear Beam Load Cell

Manufacturer: TEDEA HUNTLEIGH

Type: Shear Beam Load Cell

Model: 3510

FEATURES

• Capacities 5000 kg
• Stainless Steel Construction
• OIML R60 And NTEP Approved
• Hermetically Sealed to IP68
• Specially Designed for Harsh Environment



APPLICATIONS

• Low Profile Platforms
• Pallet Truck Weighing
• Tank and Silo Weighing
• Harsh Environment Weighing
• Food Industry Weighing

Maximum Weight Limit (E Max): 5000 kg

Rated Output: 2.0 mV/V

Temperature Compensation: -10…40 °C

Input Impedance: 380±10 Ohm

Output Impedance: 350±3 Ohm

Cable Length: 5 m

Cable Type: 6-Wire, Braided, Polyurethane, Dual Floating Screen

Grade: C3

Protection Class: IP68

Weight: 2.095 kg
