API Controls PS-3320C-E Digital Servo Drive
Usado
Disponible bajo solicitud
1 050,00$
DIGITAL SERVO DRIVE
API Controls PS3320CE is a Centerrial series digital servo drive offering 325 V DC output, encoder feedback, and multi-motor support. Ideal for precision motion control in industrial environments.APIBrushlessCenterrialControlControlsDigitalDriveDriverEncoderFeedbackIndustrialMotionmotormulti-motorPS3320CESeriesServoUnit
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

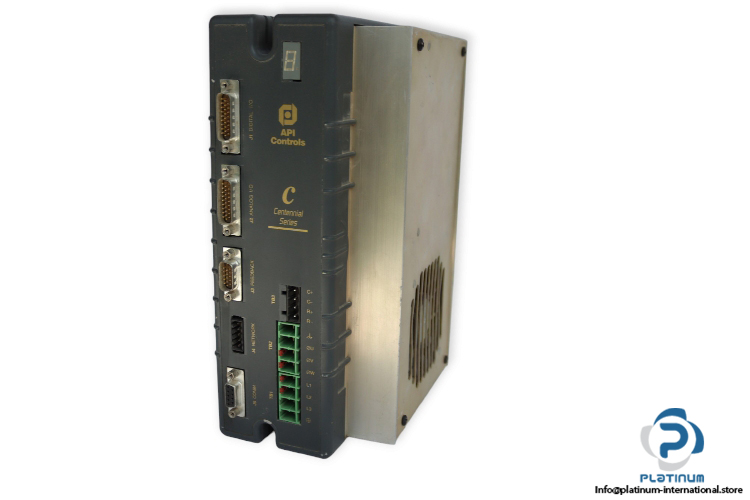

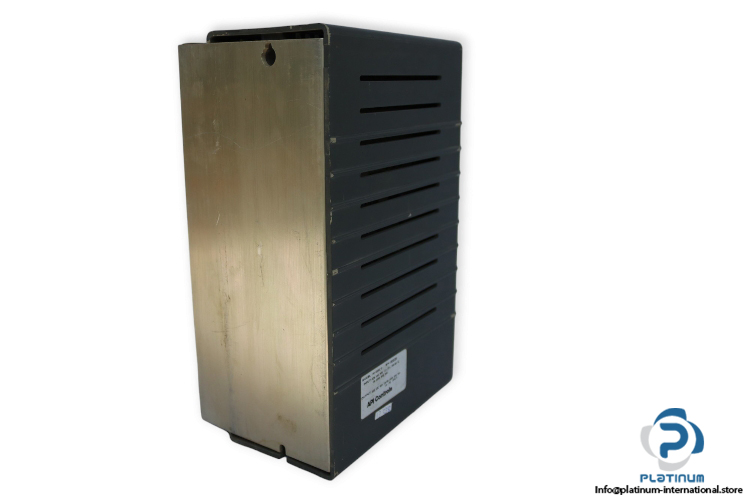

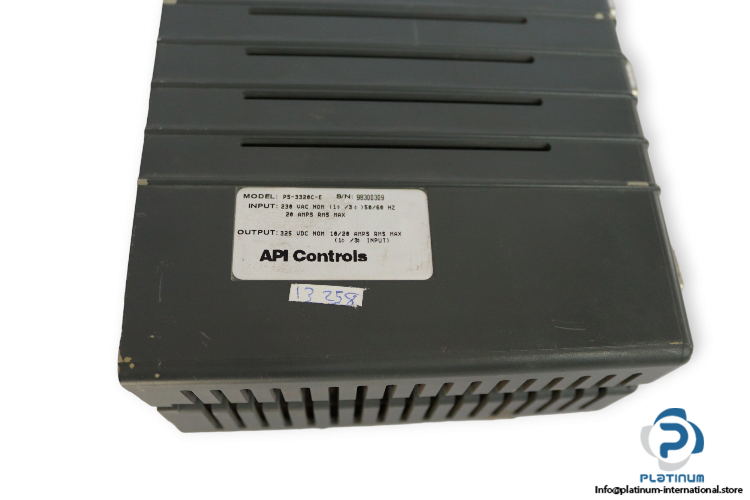

API CONTROLS PS3320CE DIGITAL SERVO DRIVE
The PS3320CE from API Controls is a powerful and versatile digital servo drive from the Centerrial family. Designed to support various motor types, it delivers reliable performance in demanding industrial automation systems. With robust input/output capabilities and flexible feedback support, it is ideal for precision motion control applications.
Manufacturer: API Controls
Type: Digital Servo Drive
Model: PS3320CE
Family: Centerrial
| Input Voltage | 230 V AC (1 or 3 Phase) |
| Input Current | 20 A Max |
| Input Frequency | 50/60 Hz |
| Output Voltage | 325 V DC |
| Output Current | 16/26 A Max |
| Feedback Device | Encoder / Hall |
| Analog Inputs | 2 Differential, ±10 VDC, 10-bit Resolution |
| Digital Inputs | 12 Total; ENABLE, RESET, 8 Isolated (5“30 VDC, Source/Sink Configurable), 4 HSI |
| Supported Motor Types | Brushless DC, Brush DC, Induction VF, Vector |
| Analog Outputs | 2 Outputs ±10 VDC, 12-bit Resolution |
| Digital Outputs | 13 Total; DRIVEOK[5], 12 Isolated (5“30 VDC, 30 mA Max, Short Circuit Protected) |
| Dimensions | 254 x 233 x 94.5 mm |
